Single Phase VFD: A Complete Guide to Motor Control and Phase Conversion - vfd manufacturers in China

Lucas — Thu, 16 Apr 2026 05:12:34 +0000

Marcus Chen opened a new metalworking facility in rural Oregon during the year 2024. The building only had 220V single-phase power. He had to choose between two options after purchasing a precision lathe which used a three-phase motor. He selected a VFD which operated on single phase power. His lathe system began operating effectively with existing single-phase power within one week and he obtained variable speed control as an additional advantage.

Numerous small workshops and farms and light commercial facilities throughout the world share similar experiences to Marcus. Residential and rural electrical systems use single-phase power as their primary system while industrial equipment needs three-phase motors to function properly. Engineers face difficulties because equipment needs power which is not available to them.

The guide demonstrates how a single phase VFD provides a solution to the existing problem. You will learn how these drives convert single-phase input into three-phase motor power, the critical sizing rule most buyers overlook, proper installation practices, real-world applications, and common troubleshooting fixes. By the end, you will have the knowledge to select, install, and operate a single-phase input VFD with confidence.

What Is a Single Phase VFD?

The single phase VFD operates as a variable frequency drive which accepts single-phase AC input power of 220V or 240V to produce controlled AC output for motor use. The drives exist to fulfill two separate market requirements. The industrial setup most commonly uses three-phase AC output although some models provide single-phase AC output for special functions. This system enables standard three-phase induction motors to operate effectively when only single-phase utility power is accessible.

The enclosure of the device contains three fundamental operational functions. The first function of the system involves a rectifier circuit that changes incoming AC power into DC voltage. The DC bus system uses capacitors and inductors to create smooth voltage output while minimizing voltage ripple. The inverter generates AC output through pulse-width modulation which creates output at the exact frequency and voltage required by the motor for its various operational speeds.

Shandong Electric creates single phase VFDs to address these specific applications. Our drives operate with 220V to 240V single-phase input to produce consistent three-phase output which supports motors from 0.75 kW to large industrial equipment.

Why You Can’t Use a Standard VFD on a Single-Phase Motor

Here is where many first-time buyers get confused. Customers who possess a single-phase motor already but doubt their ability to make their existing motor work with speed control. They want to know whether adding a VFD will enable them to control speed while saving energy with their current motor.

The short answer is no. Traditional single-phase motors use a centrifugal switch and a start capacitor to create the rotating magnetic field necessary for motor startup. The motor fails to achieve the reliable switching speed required by the centrifugal switch when you change the frequency through a VFD. The switch opens and closes repeatedly while the capacitor overheats and the motor experiences premature failure which can happen within a few hours.

The correct and durable approach is to replace the single-phase motor with a three-phase motor and power it through a single-phase input VFD. The device provides two functions which include phase conversion and variable speed control. The device completely removes mechanical wear from the centrifugal switch while delivering soft starting functionality which increases bearing lifespan.

In 2023, a water treatment facility in Arizona needed to upgrade a 2 HP pump system. The maintenance team attempted to maintain the existing single-phase motor while implementing a VFD for speed control on their 220V single-phase power system. The motor experienced a burnout within three days. The system operated perfectly after we installed a three-phase motor together with a properly sized single-phase input VFD. The facility manager later told us the upgrade was the best maintenance decision they had made that year.

How a Single Phase to Three Phase VFD Works

Understanding the internal process helps you make better purchasing and installation decisions. A single phase to three phase VFD works through four distinct stages, each critical to safe and efficient motor operation.

Stage 1: Rectification

The drive uses a diode bridge rectifier to convert the incoming single-phase AC into DC voltage. The current per diode in the bridge system increases because only two of the three input diodes operate with single-phase power. This is the primary technical reason that derating is necessary for single-phase input applications.

Stage 2: DC Bus Filtering

The capacitors on the DC bus system absorb the rectified voltage to decrease voltage ripple. The DC bus requires stability because any voltage changes will directly affect motor output which results in torque variations and overheating. High-quality drives use larger capacitor banks to handle the increased ripple that comes with single-phase rectification.

Stage 3: Inversion

The IGBT system uses PWM to switch DC voltage at high frequency. The drive produces three AC waveforms through its control of the switching pattern which ensures each waveform maintains a 120-degree spacing. The system generates a genuine three-phase power supply which the motor utilizes for smooth operation.

Stage 4: Motor Control

The drive’s microprocessor continuously adjusts output voltage and frequency according to the selected control mode. V/F control maintains a constant voltage-to-frequency ratio, which is ideal for general-purpose fans and pumps. Vector control provides precise torque and speed regulation, which makes it the better choice for conveyors machine tools and other demanding loads.

Sizing and Selecting a Single Phase VFD

The selection process requires its first critical step through the process of sizing. The wrong sizing choice results in three possible outcomes when the drive fails because it encounters overcurrent conditions or because it overheats or because it experiences premature failure. The VFD size requirement establishes a binding rule which requires the VFD to be sized at double the motor’s nameplate HP or kW.

The math behind this rule is straightforward. The three-phase input current distribution happens through all three rectifier diodes. The single-phase input allows only two diodes to handle the complete electrical load. The current per active diode increases by a factor of roughly the square root of 3, or about 1.73. The manufacturers establish this derating factor to protect the rectifier while achieving dependable extended operational performance.

Consider a practical example. Your 3 HP (2.2 kW) three-phase motor operates at a 220V voltage. The power ratings of a 3 HP VFD make it an appealing choice but you should avoid this option because the power ratings match your needs. The drive that meets your needs operates as a 5 HP (4 kW) product when you use single-phase input. This design provides sufficient current capacity to avoid tripping while it maintains the manufacturer’s warranty protection.

Voltage compatibility matters just as much as power rating. There are three common configurations to choose from:

220V single-phase input / 220V three-phase output: Use this when your motor is rated for 220V or 230V three-phase.
220V single-phase input / 380V three-phase output: Required if your motor is rated for 380V or 400V three-phase. These step-up VFDs include an internal voltage booster.
110V single-phase input / 220V three-phase output: Common for smaller motors in regions with 110V residential power, such as North America and Japan.

Never attempt to run a 380V motor on a 220V output. The undervoltage will cause the motor to draw excessive current, overheat, and eventually burn out the windings.

We also strongly recommend installing a 5% line reactor on the input side. This simple addition reduces inrush current, protects the rectifier diodes, and improves the input power factor. KEB America provides excellent guidance on line reactor selection for single-phase VFD installations.

If you are unsure which voltage class or power rating fits your motor, browse our full range of motor control solutions to compare specifications.

Installation Best Practices

Proper installation separates a reliable system from a troublesome one. Follow these guidelines for safe, stable, and long-lasting operation.

Input Wiring

Connect the single-phase supply to the R and S terminals on the VFD input. The T terminal should remain unconnected. The T terminal should not be connected to R or S through a jumper except when the installation manual from the manufacturer provides explicit permission to do so because it will result in a phase imbalance fault.

Output Wiring

Connect the motor leads to the U, V, and W output terminals. Ensure the motor is internally wired for the correct voltage, delta or wye, according to the motor nameplate. A mismatch here will cause immediate overcurrent or under-voltage problems.

Line Reactor Placement

Install the input line reactor between the power disconnect and the VFD input terminals. Size it for 5% impedance at the drive’s rated input current. The reactor should be mounted close to the drive but with adequate ventilation clearance.

Cooling and Enclosure

Single-phase input VFDs operate at higher internal temperatures compared to three-phase VFDs because they draw more input current. The drive requires a minimum of 100 mm space above and below it to allow proper airflow. An enclosure with the required IP rating should be used when the environment includes dust and moisture and corrosive vapors.

Grounding and EMC

Use a dedicated ground wire connected directly to the VFD’s ground terminal. Keep motor cables separate from control and sensor cables to minimize electromagnetic interference. For drives operating near sensitive electronics, add an output reactor or sinusoidal filter.

Minimum Speed Limitations

Three-phase motors rely on their internal fan for cooling. At very low speeds, that fan moves too little air. Do not operate the motor at less than 20% of base speed for extended periods without adding a separate forced-ventilation fan to the motor.

Applications and Industries

Single phase VFDs bridge the gap between residential power infrastructure and industrial motor performance. They are especially valuable in locations where three-phase utility service is unavailable or would cost tens of thousands of dollars to install.

Agricultural Equipment

Irrigation pumps, grain conveyors, and ventilation fans often operate in rural areas with only single-phase power. A properly sized VFD provides soft starting, which reduces water hammer in pump systems, and precise flow control, which cuts energy use during off-peak demand periods.

HVAC Systems

Rooftop units, chilled water pumps, and air handlers in smaller commercial buildings benefit significantly from variable speed control. The VFD matches fan or pump speed to actual thermal demand rather than running at full speed and throttling with dampers or valves. This alone can cut energy consumption by 20–50%.

Water and Wastewater

Small lift stations, pressure booster pumps, and filtration systems use single-phase VFDs to maintain constant pressure while reducing mechanical wear. Soft starting also reduces stress on pipes and joints, lowering long-term maintenance costs.

Machine Shops and Light Manufacturing

Workshops and small manufacturing facilities use single-phase input VFDs to run three-phase lathes, milling machines, conveyor systems, and packaging equipment. The ability to change speed during operation enables better surface finishing on machined components while a single motor system can operate multiple product sizes on a conveyor line.

Energy Savings and Cost Analysis

The single-phase VFD business case extends beyond establishing basic phase conversion because it proves that VFD technology delivers energy savings benefits together with equipment protection and operational flexibility advantages which determine business financial performance.

Energy savings from variable-torque loads which operate like fans and pumps achieve energy savings between 20% to 50% of standard energy consumption. The physics principle states that fan or pump power requirements decrease cubically as their operating speed increases. Energy consumption decreases by almost 50% when users reduce motor speed by 20%. HVAC systems and water systems experience quick returns on investment from VFD-system upgrades because of their lower operating costs.

The government provides data which verifies these statistics. U. S. Department of Energy and NREL research shows that VFD retrofitting onto variable-load motor systems results in national industrial motor-system energy reduction of approximately 8%. The 2024–2025 ABB screening campaign evaluated 10,500 industrial motor systems and discovered that their selected variable-load applications could achieve 43% energy savings. The efficient operation of motors and drives has been shown to decrease global energy consumption by up to 10% according to worldwide research.

VFD technology eliminates startup current because it represents a major expense component. A single-phase motor operating at 10 HP requires 234 amps to start because its starting current exceeds six to eight times its normal operating current. The electrical system experiences excessive stress from the inrush which results in breaker tripping and motor winding damage. The VFD enables soft starting technology which permits motor acceleration from complete stop to working speed while preventing current voltage spikes.

The upfront costs of single-phase VFD systems and rotary phase converters appear similar however the VFD system generates faster financial returns. The VFD system enables three features which include variable speed control and energy optimization and built-in motor protection whereas the rotary converter system does not provide these functions. The majority of small-shop and commercial installations achieve complete payback within 12 to 24 months through their energy savings and maintenance cost reductions.

Sarah Okonkwo operates a small HVAC contracting business which she runs in Texas. In the summer of 2024, she installed a single-phase input VFD system to replace the 5 HP rooftop unit which she operated for her customer who only had single-phase power. The client had been paying 2,800 per month for cooling during peak season. After the retrofit, the monthly bill decreased to 2,800 per month which showed the same cooling costs as before. The equipment paid for itself in 14 months, and the client now plans to upgrade three more units using the same approach.

Troubleshooting Common Issues

Even a correctly sized and installed VFD can encounter operational problems. Here is how to diagnose and resolve the most common faults quickly.

VFD Shows Output Voltage but the Motor Does Not Turn

First, verify that voltage is actually present between all three output terminal pairs: U-V, V-W, and U-W. When one pair shows zero reading or shows much lower value than other pairs the drive system has experienced output IGBT failure. Next, run the drive at no load up to 50 or 60 Hertz and observe the display. The motor will not operate so you need to check the motor bearings for seizure and measure the winding resistance with a multimeter.

Overcurrent Trip at Startup

This usually happens when the VFD is undersized or when additional loads, such as machine controls or contactor coils, are drawing current from the VFD output. A VFD should power only the motor. Wire any external controls, relays, or contactors to the VFD’s dedicated control terminals, not the motor output terminals.

Motor Runs Rough at Low Speed

Three-phase motors are not designed for extended low-speed operation without auxiliary cooling. If your application requires continuous low-speed running, add a separate constant-speed cooling fan to the motor. Also verify that the VFD parameter settings match the motor’s rated voltage, frequency, and current.

Current Fluctuation on Pump Loads

For single-phase pump applications, erratic current often indicates an incorrect control mode or pump-specific parameter setting. Switching from standard V/F control to a pump-specific V/F curve or sensorless vector control can stabilize the output current and improve system efficiency.

Conclusion

The single phase VFD functions as a permanent solution which provides electrical power during three-phase power outages. The system functions as a complete motor control solution which combines four features into a single compact system that operates at an affordable price.

The key takeaways are clear and actionable. Replace the old single-phase motor with a three-phase motor rather than attempting to control the single-phase motor directly. The VFD should be sized at double the motor’s nameplate power because of single-phase input derating. The installation requires a 5% line reactor which protects the rectifier and enhances power quality through its input connection. The system will deliver energy savings between 20% and 50% for variable-torque applications which include fans and pumps. The motor requires both proper ventilation and established speed limits for its protection.

The right single phase VFD enables three-phase equipment operation for machine shops and irrigation systems and commercial HVAC unit maintenance without incurring utility costs. The system provides users with accurate speed control together with reduced energy costs and extended equipment lifespan.

VFD Duty Cycles: Continuous, Intermittent & Periodic - vfd manufacturers in China

Lucas — Thu, 27 Nov 2025 08:01:22 +0000

The use of Variable Frequency Drives (VFDs) in modern industrial and mechanical systems is pivotal as they provide exact control of moving parts and energy consumption. However, the operation of VFDs is not a one-size-fits-all situation. They can be set to operate with different duty cycles—continuous, intermittent, or periodic—depending on the application. Knowledge of these duty cycles is crucial to performance optimization, equipment lifespan extension, and energy waste reduction. In this article, we will discuss the various kinds of VFD duty cycles, their peculiarities, and the impact they can have on your system’s overall performance. Whether you are a veteran of the industry or a novice VFD user, this guide will give you the expert tips you need to make wise choices.

What Are VFD Duty Cycles?

Variable Frequency Drive (VFD) duty cycles are the operational patterns that VFDs use to control the speed and torque of electric motors. These patterns dictate how the VFD supplies power to the motor under varying load conditions or at specific times of operation. A duty cycle may consist of several components, including running time, stopping time, accelerating time, decelerating time, and constant-speed periods. An understanding of these cycles is instrumental in ensuring that the VFD is employed effectively and efficiently, thereby minimizing wear and optimizing energy use in the particular application.

!
Breaking Down VFD Duty Cycles

VFD duty cycles play a significant role and cannot be overemphasized, as they directly influence the performance, lifetime, and even the energy efficiency of the electric motor and the entire system it powers. The duty cycle can be adjusted to the specific application requirements of industrial machinery, HVAC systems, or conveyors, so that operators can keep the motor within its operating range without unnecessary stress and, hence, with little or no premature wear. Moreover, power consumption is lower when the duty cycle provides the motor only with the speed and torque it requires for the task, leading to lower operational costs. Thanks to breakthroughs in VFD technology and data-driven tools, engineers can monitor and adjust duty cycles with even greater accuracy than ever before, thereby realizing the benefits of IoT-enabled systems for improved productivity and sustainability.

Classifications of Duty Cycles: S1 to S8

Duty cycles are categorized into eight standard classifications, from S1 to S8, each defining a specific mode of operation for electric motors.

S1 (Continuous Duty)

The motor runs at a constant load for a duration long enough to reach thermal equilibrium.

S2 (Short-Time Duty)

Operates at a constant load for a short period, insufficient to achieve thermal stability, then shuts down long enough for the motor to cool.

S3 (Intermittent Periodic Duty)

A sequence of identical cycles consisting of a period of constant load and a period of rest, without thermal equilibrium being reached.

S4 (Intermittent with Starting)

Similar to S3 but includes significant starting periods.

S5 (Intermittent Periodic Duty with Electric Braking)

Like S4, but additionally incorporates braking.

S6 (Continuous Duty with Cyclic Load)

Continuous operation involving a sequence of different loads with no rest periods.

S7 (Continuous Duty with Electric Braking)

Similar to S6 but with added braking in the cycle.

S8 (Continuous Duty with Load Variations)

Continuous operation comprising variations in load or speed.

Motor Operation Phases: Starting, Running, Braking, and Resting

The operation of an electric motor can be broken down into four distinct phases, each playing a critical role in its functionality and efficiency.

Phase	Description
Starting	This phase involves initiating the motor’s movement from rest. According to the latest data, advancements in start-up technologies, such as soft starters and variable frequency drives, have significantly improved efficiency by reducing inrush currents and mechanical stress during this phase.
Running	Once the motor achieves steady-state operation, it transitions to the running phase. Innovative monitoring systems, as highlighted by search trends, now enable better real-time performance tracking and predictive maintenance, helping to optimize energy usage and prolong motor life.
Braking	Braking is critical for stopping or decelerating a motor. Electric braking methods, such as regenerative braking, are increasingly prevalent due to their energy recovery capabilities, which align with a global push for more sustainable solutions.
Resting	The resting phase allows the motor to cool down and prepare for subsequent cycles. Findings suggest that efficient thermal management systems are a priority, aimed at minimizing downtime and enhancing operational reliability.

Importance of VFD Duty Cycles in Various Industries

Duty cycles of VFDs (Variable Frequency Drives) are critical across different sectors to support good electricity use and extend the productive life of equipment. By precisely tuning motor speed and torque, VFDs significantly reduce energy consumption, enabling substantial cost savings in unavoidable applications such as manufacturing, HVAC, and water treatment. They also enhance process control, production process consistency, and the overall power of the system. Besides, the possibility of tuning to specific duty cycles increases mechanical stress on the equipment, which is very nice because it means less maintenance and greater operational reliability. That’s why VFDs are tools no industry can do without if it’s focused on efficiency, sustainability, and cost-effectiveness.

🔑 Key Benefits

✓ Significant energy consumption reduction
✓ Enhanced process control and consistency
✓ Reduced mechanical stress and maintenance needs
✓ Greater operational reliability across industries

Why VFD Duty Cycles Matter for Motor Efficiency

Variable Frequency Drive (VFD) duty cycles are essential for optimizing motor efficiency because they allow shifting the motor output to meet the specific demands of an application. They let more energy be used efficiently by adjusting motor speed and torque to operational requirements, rather than keeping the motor at full capacity unnecessarily. New studies show that VFDs can cut energy use by half, especially when loads change frequently, such as in HVAC systems or conveyor belts.

📊 Energy Savings Potential

Up to 50%

Reduction in energy consumption with proper VFD duty cycle management

Besides saving energy, VFD duty cycles also help reduce friction between the motor’s moving parts by lessening the effects of sudden starts and stops. This translates into longer equipment life and reduced maintenance needs, which, in turn, leads to a direct decrease in operating costs. Furthermore, the ability to perfect motor performance enables greater precision in situations where consistency and control are critical. The use of VFDs and their variable duty cycles enables different sectors not only to improve their operations and environmentally friendly practices but also to address the challenges of energy efficiency and operational resilience in the modern world.

Critical Industries Utilizing VFDs

Variable Frequency Drives (VFDs) are essential devices used in various critical industries, primarily to improve energy efficiency and maintain precise operations. Recent reports indicate that VFDs have contributed significantly to the manufacturing, HVAC, water and waste, and oil and gas industries.

🏭 Manufacturing

One of the main applications of VFDs is controlling motor-driven machinery, thereby optimizing production lines and reducing idle time.

❄️ HVAC Industry

A major user of VFDs to control the rates at which fans and pumps operate, thereby meeting airflow requirements and achieving energy savings in both commercial and residential systems.

💧 Water Treatment

VFDs are a must-have in water treatment facilities for controlling pump and motor operations, a critical step for maintaining consistent water pressure and improving wastewater treatment efficiency.

🛢️ Oil and Gas

Drilling and extraction are made more reliable, leading to lower energy costs and higher safety standards through the use of VFDs.

The ongoing replacement of traditional drives with VFDs in these industries is a strong indication of VFDs’ importance as a solution for energy efficiency and sustainable operations. The VFDs do so by allowing these sectors to be flexible and stay alive in the competition through a good demand load match in the fast-changing market.

Impact on Operational Costs and Sustainability

The use of Variable Frequency Drives (VFDs) in industrial processes has significantly reduced costs and enabled the adoption of sustainability measures. Newest research and data notes: industries with VFDs as part of their equipment report energy savings of 20-60%, mainly due to optimized motor speed control and elimination of energy waste. This energy savings translates into significant financial savings over the long term, as energy costs are generally a major part of total operating costs.

Impact Area	Benefit	Savings Range
Energy Efficiency	Optimized motor speed control eliminates energy waste	20-60%
Carbon Emissions	Lower energy demand reduces carbon footprint	Significant
Maintenance Costs	Predictive maintenance reduces unexpected breakdowns	High
Equipment Lifespan	Extended machine lifespans through sustainable asset management	Extended

VFDs are considered an essential part of the eco-friendly movement because they reduce carbon emissions by lowering energy demand. Their use aligns with international objectives to reduce pollution and comply with strict industrial emissions standards. Besides, they enable predictive maintenance by providing highly accurate real-time performance data, thereby decreasing unexpected breakdowns and extending machine lifespans—a key aspect of sustainable asset management. The advantages listed above make VFDs a cost-efficient and sustainable technology capable of operating across all industries.

Technical Aspects of VFD Duty Cycles

VFD duty cycles refer to the specific operational patterns and load requirements that a Variable Frequency Drive must handle over time. These cycles often include variations in speed, torque, and frequency to match the demands of the connected equipment. Properly defining and understanding the duty cycle is critical to ensuring the VFD is appropriately sized and rated for the application, thereby improving efficiency and reliability.

Key Considerations

Load Type

Identifying whether the application involves constant torque (e.g., conveyors) or variable torque (e.g., pumps and fans) helps select the appropriate VFD settings.

Operating Conditions

Factors such as ambient temperature, load peaks, and start/stop frequency influence the VFD’s performance and lifespan.

Overload Capacity

Many VFDs are designed to handle short periods of overload. However, exceeding these limits can lead to overheating or damage.

Cycle Duration

The duration of operation under various load conditions affects heat dissipation and overall system efficiency.

The Science Behind VFD Duty Cycles

VFD duty cycles are essential to the proper working and long service life of variable frequency drives. The duty cycle is the ratio of the time in operation (load duration) to the time in rest or low load. In practice, this means that heat generation and cooling in the VFD system are analyzed. Electrical energy conversion during operation produces heat, which must be appropriately managed to avoid component failure. High-end VFDs usually use thermal sensors and overload protection systems that watch these cycles to improve performance.

⚠️ Warning: Improper Duty Cycles

Studies and measurements provide evidence that improper or overly heavy-duty cycles can cause thermal stress, ringing repairs, and lower-than-expected energy consumption due to increased power requirements. The case of frequent start/stop sequences generating current surges is one way in which wear and tear are intensified on the drive and motor, underscoring the importance of strict duty-cycle matching to the application demand.

Using highly detailed load profiles monitored by modern IoT-enabled devices, operators can adjust VFD duty cycles to achieve the required operational efficiency while keeping the system healthy, thereby enhancing productivity across various industrial settings.

Motor Performance: Torque, Speed, and Heat Dissipation

Motor performance is highly dependent on the dynamic interplay among torque, speed, and heat dissipation. Torque is the motor’s rotational power, a decisive factor in the ability to move loads efficiently. On the contrary, speed indicates how fast the motor rotates and is affected by the input frequency, which is regulated by a Variable Frequency Drive (VFD). Nevertheless, heat dissipation becomes an essential factor when motors operate under fluctuating loads and speeds to avoid overheating and extend their lifespan. The new technology enables motors to maintain this balance through precise tuning via IoT, enabling real-time monitoring of these parameters.

Best Practices for Heat Dissipation

→
Increase ventilation systems for better airflow.
→
Implement a cutting-edge cooling system.
→
Select materials with high thermal conductivity.
→
Align torque and speed with operational needs.

The latest data and insights indicate that improving heat dissipation strategies can significantly increase the motor’s efficiency. In addition, torque and speed alignment with operational needs results in less wear and tear on the motor, which, in turn, leads to energy savings and performance maintenance. This unified strategy not only prolongs the motor’s life but also helps reduce industrial energy consumption, making it greener.

Inverter Duty vs. Standard Motors

The decision between inverter-duty motors and standard motors depends on the application and operational requirements. Inverter-duty motors are those that can tell VFDs (variable-frequency drives) when to stop and are more prone to the voltage stress and thermal challenges that VFDs can cause. As such, they are characterized by improved insulation systems capable of withstanding the highest voltage spikes, and their energy consumption is usually not a problem, as they run efficiently at different speeds.

Feature	Inverter-Duty Motors	Standard Motors
VFD Compatibility	✓ Excellent	○ Limited
Insulation System	Enhanced for voltage spikes	Standard insulation
Speed Range	Variable speeds	Fixed speed
Energy Efficiency	High	Moderate
Initial Cost	Higher	Lower
Lifespan with VFD	Longer	Shorter
Best Applications	Conveyors, pumps, HVAC, precision control	Fixed-speed tasks, simple operations

In contrast, standard motors are best for fixed-speed operations, and the initially lower cost is another argument for their selection. However, they will likely have shorter lifespans due to the electrical stresses they endure when VFDs are used. It is essential to evaluate performance requirements alongside the budget to select the correct motor.

Common Applications of VFD Duty Cycles

Variable Frequency Drive (VFD) duty cycles are widely used in industrial and commercial applications that require precise control of motor speed and torque. Some of the most common applications include:

💧 Pumps

Adjusting motor speeds to match fluid demand, optimizing energy consumption in water supply and wastewater systems.

🌀 Fans and Blowers

Controlling airflow in HVAC systems for efficient heating, cooling, and ventilation.

📦 Conveyors

Regulating speed for material handling systems to ensure smooth and efficient transport of goods.

🔧 Compressors

Managing motor operation in air compression systems for optimal pressure control.

🏗️ Cranes and Hoists

Providing variable speed control for safe and precise movement of loads.

Real-World Applications of VFDs in Industry

VFDs (Variable Frequency Drives) have completely changed the landscape of many industries, making them more energy-efficient and more accurate in their operational processes. The most recent statistics show that the manufacturing, water treatment, and oil and gas sectors are the main sectors powered by VFDs due to their versatility.

Industry-Specific Applications

🛢️ Oil and Gas Industry

VFDs help control the speeds of pumps and compressors, keeping production levels consistent without energy waste or excessive wear. This precision enables reliable drilling and extraction operations while lowering energy costs and improving safety standards.

💧 Water Treatment Plants

VFDs modulate pumping flow rates, helping facilities save on electricity bills and providing effective water distribution. This technology ensures optimal pressure maintenance and improved wastewater treatment efficiency.

🏭 Manufacturing Sector

The manufacturing sector has turned to VFDs to improve conveyor systems, vary motor speeds on assembly lines, and enhance quality control through pinpoint precision. This application reduces idle time and optimizes production processes.

As environmental concerns rise, the feasibility study of VFDs, among other technologies, is expected to expand across industrial applications.

Controlling Conveyor Belts in Manufacturing

The adoption of Variable Frequency Drives (VFDs) has significantly improved the control of conveyor belts in the manufacturing process. VFD technology allows manufacturers to control the speed, torque, and motion of a conveyor system as a whole, which in turn results in smoother material flow and reduced wear on mechanical parts.

✨ Advantages in Manufacturing

✓
Precise control of speed, torque, and motion
✓
Smooth material handling with reduced mechanical wear
✓
Flexible production environment adaptable to different products
✓
Speed adjustments without lengthy shutdowns
✓
Reduced energy consumption and environmental impact

The use of such systems also creates a more flexible production environment, as manufacturers can adjust conveyor belt speeds for different product types and production volumes without having to shut down for long periods. This innovation offers the advantage of increasing operational efficiency while being environmentally friendly, as it uses less energy, thereby attracting both manufacturers and consumers interested in protecting the environment.

Energy Efficiency Enhancements in HVAC Systems

The energy efficiency of HVAC (heating, ventilation, and air conditioning) systems is a significant concern as companies and homes seek to reduce energy use and lower utility bills. The introduction of new technologies such as smart thermostats, advanced variable-speed compressors, and demand-controlled ventilation systems is radically changing the industry.

🌡️

Smart Thermostats

Use machine learning algorithms to analyze user preferences and occupancy patterns and adjust heating and cooling schedules to minimize energy waste.

⚙️

Variable-Speed Compressors

Can adjust their output to match demand; thus, significant efficiency gains are achieved by avoiding the traditional systems’ frequent start-stop cycles.

💨

Demand-Controlled Ventilation

Can sense and respond to the number of people in a space by adjusting airflow, thereby saving energy and maintaining good indoor air quality.

🌍 Environmental Benefits

These innovations have the double benefit of reducing operating costs and contributing to the environment by cutting CO₂ emissions.

Future Trends and Predictions

VFD duty cycles were expected to change depending on the need for energy-saving systems. Future trends indicated that VFDs would become more intelligent, dynamically adjusting their duty cycles based on real-time performance data and system requirements. These advancements will likely come with the use of machine learning algorithms that will not only help further optimize energy use but also reduce equipment wear and adapt to varying load demands. Besides, the integration with innovative building ecosystems will be improved to the extent that, through monitoring and controlling the entire operation, it will align with the global trend of going green and being efficient.

The Future of VFD Duty Cycles and Technology

The progress of Variable Frequency Drive (VFD) duty cycles and technology is greatly influenced by artificial intelligence (AI) and the Internet of Things (IoT). According to the latest data, VFDs are no longer merely controlling motor speed. The integration of AI-powered algorithms is increasingly common, enabling the prediction of system behavior and allowing proactive energy savings and cost reductions by making the necessary adjustments. The application of IoT enables VFDs to operate not only individually but also to synergize with other intelligent systems, forming a network that centralizes and enhances the operation of the entire building.

🌱 Green Technology Integration

VFD technology is gradually being replaced in favor of renewable energy. Thus, VFD is more attentive to the whole project, serving as the primary and greenest contributor. These developments are bringing the industry to the doorstep of intelligent, adaptive, and planet-friendly solutions in the near future.

Emerging Trends: Precision Control and IoT Integration

The integration of IoT with precision control is revolutionizing entire systems by delivering greater accuracy in performance and energy use. According to recent market trends, these technologies not only optimize energy use but also ensure equipment lasts longer, as wear and tear is reduced through smarter, adaptive operation.

📡 IoT-Powered VFDs

Can collect and process real-time data, enabling predictive maintenance and reducing downtime significantly.

💰 Cost Reduction

Companies moving towards such modern systems will be rewarded with a drastic reduction in operating costs, along with green infrastructure.

The combination of precision control and IoT is enabling the creation of new industrial and commercial standards that are more tailored to efficiency and less harmful to the environment.

AI-Driven VFD Systems and Dynamic Duty Cycle Optimization

When AI-driven Variable Frequency Drive (VFD) systems are integrated with dynamic duty-cycle optimization, they represent the strongest drive yet for energy savings and system performance. The performance of these intelligent systems is based on machine learning algorithms that continuously analyze the system’s operational patterns and predict real-time adjustments to achieve optimal performance.

🤖 AI-Driven Energy Savings

30-40%+

Energy Cost Reduction

Through continuous monitoring of load requirements, temperature, and energy consumption patterns

Recent analysis of search queries highlights one of the most frequently asked questions: “In what ways do AI-driven VFD systems facilitate the reduction of energy costs?” The reason is their constant monitoring of factors such as load requirements, temperature, and energy consumption. Furthermore, the system’s ability to prevent excessive wear and tear extends the equipment’s lifespan, making it a green, economical solution that can be found in various areas, such as manufacturing and HVAC systems. The union of VFDs with AI technology has undoubtedly been the most significant driver of change in energy optimization and operational efficiency.

Reference Sources

Here are five professional and authoritative reference sources that you can use to verify the correctness of your article on “VFD Duty Cycles.” These sources are academic and technical in nature, ensuring credibility:

1. IEEE Xplore

Title: Load distribution and VFD topology selection for harmonic mitigation in an optimal way

This article discusses optimal VFD topologies and their applications, offering insights into harmonic mitigation and duty-cycle control.

2. ResearchGate

Title: Modified circuit design of VFD for critical loads under single phasing conditions

This paper explores the design and operation of VFDs under specific conditions, including duty cycle considerations.

3. KTU Electrical, Electronics, and Energy Journal

Title: Optimization of VFD operations for transporting equipment and packages

Focuses on VFD operations in defined duty cycles, particularly in the context of transporting equipment.

4. Google Books

Title: VFD Challenges for Shipboard Electrical Power System Design

This book provides an in-depth analysis of VFDs, including their effects on power systems and their implications for the duty cycle.

5. IEEE Xplore

Title: Novel family of high-gain nonisolated multiport converters with bipolar symmetric outputs for DC microgrids

Discusses duty cycles in converters and microgrids, offering technical insights relevant to VFDs.

Frequently Asked Questions (FAQs)

❓ What does “vfd duty cycles” mean, and why is the duty cycle important?

VFD duty cycles describe how long a motor runs under a specific load and pattern when driven by a variable frequency drive; duty refers to the percentage of time the motor is energized versus resting and is often expressed as a percentage. Duty cycle classification (IEC terms such as S1, S2, S3–S8) helps specify the duty cycle for an application’s motor, so you can select the right motor and avoid overheating or undersizing due to frequent starts and stops.

❓ How do I read the motor nameplate to determine allowed duty cycles?

The motor nameplate often lists the duty or class (such as S1 continuous, S2 short-time, S3 intermittent), along with rated horsepower, frequency, voltage, and allowable temperature rise. Use the nameplate duty cycle information, along with the VFD’s duty cycle, to confirm the motor meets your needs and ensure its speed, torque at zero speed, and cooling are suitable for applications such as low-speed or rapid changes driven by automation.

❓ Can a standard three-phase motor be used with a VFD for continuous low-speed operation?

Many three-phase motors are designed for continuous operation (S1) and can be used with VFDs for precise speed control, but not all motors are suitable for prolonged low-speed operation without overheating. Ensure the motor has adequate cooling and is specified for duty cycles that include extended low-speed operation; otherwise, select a motor with a higher insulation class or forced cooling to prevent overheating.

❓ What is the difference between identical duty cycles and different duty cycle classifications?

Identical duty cycles mean the motor experiences the same load pattern repeatedly; duty cycle classification (IEC S1–S8) defines different patterns: S1 continuous; S2 short-time; S3 intermittent, periodic with start/stop; S4–S8 include starting with load or variable load and frequent starts and stops. Understanding these types of duty helps you ensure the motor and VFD are ideal for applications such as automation tasks with rapid changes or medium-voltage drives in power systems.

❓ How do motor inertia and moment of inertia affect VFD duty cycles?

The inertia of the motor and the driven load (moment of inertia) affects acceleration, deceleration, and the VFD’s thermal stress. High-inertia loads require more torque and longer run times to reach speed, which can affect the duty cycle and potentially lead to higher heating. When selecting the right motor for your needs, account for torque requirements, potential inertia mismatch, and whether the duty cycle allows the motor to cool between cycles to prevent overheating.

❓ Are there special considerations for applications requiring torque at zero speed or precise speed control?

Applications needing torque at zero speed (holding torque) or precise speed regulation rely on VFDs for closed-loop control and may require motors designed for such duty cycles. Ensure the motor and drive combination supports the loop of control needed, feedback devices, and that duty cycles include frequent starts and stops or continuous holding without overheating to maintain performance in automation or positioning systems.

❓ How do frequent starts and stops influence the selection of motor horsepower and VFD settings?

Frequent starts and stops increase thermal and mechanical wear; duty cycles that include many starts (S3–S8) typically require a motor with a higher horsepower margin and a VFD configured for soft-start, proper torque limits, and duty-based thermal protection. Selecting a motor for your needs means considering duty cycle duration, the percentage of time running, and inertia to ensure reliable, long-term operation.

❓ Can VFDs be used with medium-voltage or three-phase power supply systems for industrial duty cycles?

Yes, medium-voltage, three-phase power systems commonly use VFDs to control large motors. For heavy industrial duty cycles, confirm that the VFD and motor are rated for the power supply, duty classification, and duty cycles, including protections for rapid changes, overcurrent, and thermal limits to ensure the motor is suitable for applications in power systems and process automation.

❓ How do I ensure the motor will not overheat when driven by a VFD in my application?

To prevent overheating, match the motor’s duty type and nameplate ratings to the VFD duty cycle; consider forced cooling or a motor with a higher temperature rating; monitor temperature and the duty cycle percentage of time at load; and tune VFD frequency and voltage profiles for controlled acceleration. Declaring the duty and selecting the appropriate motor and VFD settings will ensure the motor operates without overheating and meets the intended application’s speed and torque requirements.

VFD Noise & Vibration: Causes & Solutions - vfd manufacturers in China

Lucas — Thu, 27 Nov 2025 03:03:39 +0000

Variable Frequency Drives (VFDs) are integral to most modern industrial applications because they can regulate motor speed. However, with these devices, noise and vibration are often experienced, which, if not controlled, can result in equipment wear and tear, consequently decreasing the useful life and increasing operating costs. This paper explains the typical causes of VFD Noise & Vibration and practical methods to curb them. Whether you are a manager of a facility, a maintenance engineer, or even a maintenance worker, read this handy guide to maximize productivity, minimise breakdowns, and hence, smooth running of different systems. Continue reading to find the insights and actions you need to address this vital part of the VFD application.

Causes of Noise and Vibration in VFDs

1
Electromagnetic Interference (EMI)

VFDs use rapid switching of electrical signals, which can generate electromagnetic interference, leading to audible noise in motors or surrounding equipment.

2
Harmonics

The non-linear nature of VFD operations creates harmonic distortions in the electrical supply, which can cause vibrations and increase wear on motor components.

3
Improper Motor Matching

Using a motor that is not correctly sized or designed for VFD operation can cause mechanical stresses, leading to excess noise or vibration.

4
Loose Components

Unsecured mounting or loose mechanical components in either the VFD or the motor can amplify vibrations and increase noise output.

5
Bearing Currents

High-frequency currents induced by VFDs can flow through motor bearings, causing damage over time and generating noise during operation.

Understanding Common Mode Voltage and Motor Noise

Common-mode voltage is the voltage imposed equally on all motor phases with respect to the ground plane, induced primarily by switching in the Variable Frequency Drive (VFD). It causes increased noise during motor operation and operational inefficiency. Standard mode voltage creates electrical disturbances, stimulates motor winding noise, and may cause bearing currents to damage bearing motors, leading to higher noise levels.

Studies have shown that limiting these effects most often involves using good grounding techniques, shaft grounding rings, and filtering, which typically consists of common-mode chokes and dv/dt filters applied in some sequences. These methods are meant to reduce the high-frequency components and further minimize the coupling of undesired voltages into mechanical components. Proactively addressing common-mode voltage is sure to put an end to motor noise throughout the motor’s service life and enhance system performance in general.

Changes in Motor Speed and Torque

Noise and vibration in VFDs are often associated with rapid changes in motor speed and torque. Such variations may induce a mechanical imbalance or any other electrical inconsistency in the system. One of the primary reasons is the VFD’s switching frequency, which generates high-frequency pulses in the power electronics, resulting in harmonic content that causes acoustic noise and motor vibrations.

Another reason is the excessive vibrations caused by electromagnetic forces within the motor windings due to an inconsistent current distribution. Then, too, mechanical problems like misaligned shafts, unbalanced loads, worn bearings, and other factors would, in turn, exacerbate the situation, raising noise levels and lowering the overall system’s efficiency.

Poor Grounding and Installation Practices

⚠️ Critical Installation Considerations

Poor grounding and installation practices are a significant source of noise and vibration concerns during Variable Frequency Drive (VFD) operation. Insufficient grounding creates circulating current and electrical interference from power supply noise, leading to abnormal VFD operation, control system disturbances, and vibratory effects on the motor systems.

Anomalies in installation—whether in cable routing, shielding loss, or unacceptable terminations—can introduce mechanical resonances and EMI. According to the latest findings, dedication to a low-impedance grounding path is critical, and strict adherence to the manufacturer’s installation instructions is required. Regular inspections and strict adherence to these fundamentals during installation can keep the systems up to standard and reduce noise and vibration problems.

Impact of Noise and Vibration on Machinery Performance

Noise and vibration can significantly affect machinery processes. They undermine efficiency through acts of aggression. Furthermore, they intensify wear and tear and probably cause premature failure. Excessive vibration results from misalignment, loose components, or excessively high operating temperatures, thus rendering the system unreliable.

Increased Wear and Tear on Motors

How vibration and noise might affect motor aging and reduce performance and lifespan is indeed a significant concern. Increased vibration causes bearings, shafts, and other vital components of the motor to experience excessive stress, leading to imbalances and misalignments. Over time, these conditions promote higher friction and increased heating, leading to the quicker wear of the motor’s parts.

⚡ Critical Finding:

The virtual industrial world today reports that improper vibration control regularly sends motors to an early grave, reducing motor lifespan by more than half; hence, to avoid failure, these issues need to be acknowledged and further addressed through improved monitoring and predictive maintenance techniques.

Reduced Efficiency and Reliability

Vibration and noise have a profound impact on machinery performance and reliability. Excessive vibration causes misalignment, looseness, and wear, reducing the precision with which a machine operates. Long-term exposure to such harsh conditions puts a tremendous strain on mechanical systems, increasing energy consumption and reducing output efficiency. Proper monitoring and proactive intervention, using techniques and sophisticated diagnostic tools, enable enterprises to detect vibration and noise problems earlier in development, prolonging the lifespan of equipment while maintaining relatively constant performance.

Maintenance Implications

Based on the most up-to-date search data, one can undoubtedly assert that noise and vibration have long-term effects on machinery. In the absence of such extensive vibration, the equipment tends to misalign, wear out earlier, or undergo catastrophic failure. In the same scenario, noise serves as an early warning system for mechanical irregularities, alerting to potential issues such as oil-starved bearings.

These risks can be virtually eliminated through the use of cutting-edge diagnostics and predictive analytics. Real-time data capture and trend analysis are excellent means of identifying problems earlier, allowing sufficient time to address them before they grow larger with almost no effort, thereby minimizing downtime to a large extent.

Solutions and Mitigation Strategies

✓ Key Mitigation Strategies

1. Regular Maintenance Schedules

Establish and adhere to a consistent maintenance routine for inspecting and servicing machinery. This reduces the likelihood of unexpected failures and ensures that all components are in optimal condition.

2. Implement Predictive Maintenance Technology

Utilize tools such as vibration analysis, thermal imaging, and predictive analytics to monitor performance in real-time. These technologies help detect early signs of wear or damage, allowing for proactive repairs.

3. Ensure Proper Lubrication

Verify that all moving parts are adequately lubricated in accordance with the manufacturer’s recommendations. This minimizes friction and prevents excessive wear on components.

4. Training for Maintenance Teams

Provide regular training for maintenance personnel to enhance their diagnostic skills and ensure proficiency with advanced monitoring tools.

5. Document and Analyze Maintenance Data

Keep detailed records of maintenance activities and equipment performance. Analyzing trends from this data can reveal recurring issues and guide long-term improvements.

Proper Alignment and Balancing of Motors

Good motor alignment and balance are so crucial for the smooth performance and longevity of equipment. Proper alignment, whether top/face-specific, axial, or both, reduces the likelihood of misalignment-related issues such as vibration and excessive heating. Tracking and balancing ensure synchronized rotation of the rotor and components, reducing wear on bearings and other elements.

🎯 Laser Alignment

Gaining popularity as a more sophisticated approach to modern alignment challenges because it offers heightened precision well beyond what old methods could achieve.

📊 Vibration Analysis

A powerful diagnostic tool that helps detect imbalances or alignment problems early and prevent them before causing system damage.

A modern search engine told us that one of the leading causes of urgent motor failures is way too frequent misalignment, leading to higher maintenance costs and counterproductive downtime. When these kinds of practical tools are in play, organizations will realize that running motors offer better all-around performance, consume much less energy, and serve as a preventive measure against expensive plant breakdowns.

Advanced VFDs with Harmonic Mitigation

Harmonic-mitigation-equipped advanced drives are vital actors in industry. These drives reduce the serious repercussions on the electrical system during the ride due to harmonic overloads. Harmonics distort both voltage and current, causing losses and inefficiency that may lead to mechanical breakdowns; these drives, whether equipped with active front-end (AFE) power supplies or built-in harmonic filters, minimize this kind of energy waste up front.

📘 IEEE 519 Standard Compliance

This falls under the IEEE 519 standard guidelines—greater electrical efficiency, prolongation of equipment life, and smooth operation of an electric system. In recent development history, the inclusion of harmonic mitigation in VFDs has become an essential agenda item for the industry.

Regular Monitoring and Maintenance

It is a sine qua non that Variable Frequency Drives (VFD) or their critics are closely monitored and maintained to attain maximum performance and reliability over the years. Actual maintenance procedures, such as temperature and connection observations and software updates, are best practices for preventing issues and enhancing VFD health.

Furthermore, advanced diagnostic tools enable service professionals to detect minor problems and address them once identified. With advances in predictive analytics offering more options, key suggestions could be generated from industry benchmarks and search engine insights, thereby creating an intelligent, customized service schedule for each business need. These tools in action promise to address critical operational issues while ensuring the efficiency of the VFD plant, thereby reducing unplanned downtime and maintenance costs.

Recent Technological Advancements

Lately, much of the improvement in variable frequency drives (VFDs) has focused on energy savings, operational flexibility, and reliability. One innovative idea is the integration of IoT-enabled intelligent controllers that provide real-time monitoring and remote diagnostics to boost system performance. Still, other work has introduced a new generation of harmonic filtering devices, which, when coupled with the traditional solution of three-phase and multi-line reactor interchange, form a hybrid system. The new VFDs usually feature enhanced cooling systems and more compact dimensions, further improving their lifespan and making them more sustainable and cost-effective across a wide range of applications.

Overview of New VFD Noise Reduction Products

The best recent products for VFD noise reduction address both audible and electrical noise challenges with truly up-to-date technologies. They significantly reduce noise by advancing materials and technologies, and are the most advanced design solutions. High-frequency acoustic noise is reduced by specific features, such as PWM technologies, which are logically optimized for use in higher efficiency.

The contribution of line reactors and harmonic filters to electrical noise reduction and effective interference management prevents interference with neighboring equipment. These solutions mitigate the risks posed by industry expectations and the rules that must be complied with to ensure system integrity. They also reduce energy costs through their compact design, thereby inspiring prosperity and the possibility of integrating them into modern industrial applications.

Integration of AI and IoT for Monitoring

AI seems to be integrating with the Internet of Things (IoT) to take the monitoring and control of Variable Frequency Drive (VFD) systems to another level. Vibration levels, noise, and system performance can be monitored in real time using IoT-enabled sensors. AI algorithms analyze data to detect anomalies, predict potential failures, and deliver modest improvements in system efficiency.

🤖 Machine Learning Applications

Machine learning can identify patterns in vibration frequencies that may indicate mechanical issues, such as wear or misalignment, giving us time to step in with intensive maintenance measures. Therefore, by using such data-driven applications, we could not only reduce any downtime but also lengthen the usable life of VFD equipment.

Development of Quieter VFD Designs

The trend toward increasingly quiet VFD setups has taken a new shape in modern engineering and industry, as engineers and industry professionals work to tackle noise pollution and improve workplaces. The almost noiseless operation of new VFD models relies on top materials and cooling technologies. Algorithms developed using artificial intelligence also contribute by finely adjusting switching frequencies in real time to tamp down harmonic noise.

Sound-dampening enclosures and low-noise fans are indeed examples of applied technology used to lower such noise levels. Compliance with purely such health and safety standards is not the only reason for their application in any industrial environment. They’ve enhanced the comfort and operational efficiency of numerous industrial application types.

Expert Insights and Case Studies

Variable Frequency Drives (VFDs) are crucial for controlling motor speed in industrial applications; however, their operation may induce noise and vibration challenges. According to experts, two leading culprits are identified as the causes of these issues: electromagnetic interference (EMI) and mechanical resonance. EMI is usually introduced by high switching frequency in drives, whereas mechanical resonance occurs when motor and system components lock horns and resonate at the same frequencies, magnifying vibration.

📈 Case Study: Manufacturing Operation Success

The vibration problem has been conclusively demonstrated in a manufacturing operation where optimized tuners installed in the motor drive systems resulted in a 30% improvement across the board.

In specific cases, addressing VFD noise and vibration requires the combined use of multiple strategies. One proven method is the use of advanced filters, like line reactors, load reactors, EMI filters, etc., employed in electrical noise suppression. Another way would be to ensure suitable mountings and proper alignment of motor drives to help reduce vibration levels.

The smoother operation, compliance with the noise regulations, and the life of equipment extend the control of those activities, along with a reasonable amount of maintenance and, from time to time, monitoring.

Expert Opinions

Industry experts discuss the advantages of variable frequency drives (VFDs) for a firm grip on motor speed regulation, efficient power consumption, and reduced noise and vibrations in the workplace. Studies and field reports have shown that noise in VFD systems is typically caused by high-frequency switching and harmonics. At the same time, vibrations may be caused by poor motor alignment, resonance, or insufficient damping.

👨‍🔬 Dr. Emily Carter, Senior Motor Systems Engineer

“They should use high-quality filters and perform proper grounding to eliminate electrical noise caused by VFDs. I advise performing a complete harmonic analysis to limit distortion that could affect the system’s health.”

🔧 James Reed, Mechanical Systems Consultant

“Precise alignment and load balancing are considered critical for reducing mechanical strains in the motor system and paving the way to eliminate vibration issues. Synchronization of predictive maintenance technologies, with vibration analysis software as a key tool, provides an all-round monitoring system that detects imminent mechanical defects and takes action promptly.”

The deployment of modern data tools aligns with the chorus that proactive monitoring is the key to significantly reducing noise and vibration levels under VF’s control.

Insights from Industry Professionals

Recent industry observers and online searches indicate that achieving proper vibration levels in a VFD-operated system is now a more crucial concern across numerous sectors. The trend is toward predictive maintenance solutions, meaning the entire industry is now moving toward data-driven decision-making.

Professionals argue that deploying technology, such as machine-learning algorithms, for real-time anomaly detection will serve the operator as the first step towards any inefficiency. When gazing into the crystal ball to predict trends from data, many data-oriented experts believe that active preventive maintenance measures offer a two-fold benefit: extending equipment life and reducing downtime, thereby underscoring the undeniable role of innovation in achieving operational excellence.

Frequently Asked Questions (FAQs)

❓ What causes VFD noise & vibration in electric motor systems?

VFD noise & vibration commonly originate from the inverter’s pulse-width modulation (PWM) switching frequency and the resulting high-frequency components and carrier frequency applied to the motor. The IGBTs in the inverter create a stepped output waveform rather than a pure sine wave, which can excite the motor’s mechanical natural frequency, gearbox resonances, or structural components. Voltage spikes, eddy currents, and harmonics from the VFD output can also cause mechanical noise coming from the VFD and the driven equipment.

❓ How do the output waveform and carrier frequency affect audible noise?

The inverter-rated output waveform and VFD switching frequency determine the spectral content of the voltage and current applied to the motor. A six-step or PWM waveform with a high carrier frequency (e.g., 8 kHz) produces high-frequency components that can be audible or cause subharmonic beating with the motor’s natural frequency. Adjusting the carrier frequency (Hz) and selecting smoother waveform filters reduces sharp voltage transitions and lowers noise in VFD applications.

❓ Can changing the VFD switching frequency mitigate noise issues?

Yes. Changing the VFD switching frequency (carrier frequency) can move noise energy away from sensitive audible ranges or structural resonances. Increasing the carrier frequency often reduces audible tonal noise but can increase switching losses in IGBTs and heat, while lowering it can shift energy into lower-frequency mechanical excitation. Proper parameter tuning balances noise reduction with inverter and motor thermal limits.

❓ Are shielded cables, conduit, and grounding important to control electromagnetic noise?

Absolutely. Using shielded cables and proper conduit routing, grounding, and EMC practices helps contain common-mode currents and reduces emitted interference from the voltage source and VFD cable. Shielded and grounded VFD cable with correct termination lowers stray capacitance and minimizes noise coupling to nearby control wiring and instrumentation.

❓ What role do capacitors, inductors, and filters play in mitigating VFD noise?

Line and output filters—capacitors and inductors—smooth the VFD output waveform, reduce voltage spikes, and filter high-frequency switching components. An LC filter, or dv/dt filter, smoothes the harsh edges of the PWM waveform, reducing insulation stress on the motor and helping mitigate noise and vibration by decreasing high-frequency excitation and limiting voltage spikes applied to the motor.

❓ How do motor and mechanical factors like insulated bearings, gearbox, and natural frequency contribute?

Mechanical components can amplify or create noise and vibration when excited by the electrical waveform. Insulated bearings reduce circulating currents and bearing fluting caused by common-mode voltages, which helps avoid bearing damage and noise. Gearbox resonances and alignment issues can be excited by the output frequency or its harmonics, so addressing mechanical balancing, lubrication (eddy-current effects), and matching natural frequencies reduces downstream noise.

❓ Could using starters or soft starters be better than a VFD to reduce noise?

Starters or soft starters control the motor start torque and can reduce mechanical shock, but they do not provide the same speed control as an inverter VFD. Soft starters typically produce less high-frequency switching noise because they ramp the voltage gradually. Still, they won’t mitigate noise caused by variable output frequency or harmonics when speed control is required. Choose based on whether you need to control the speed or just reduce the starting current.

❓ How can I diagnose the exact source of noise in VFD applications?

Start by isolating whether the noise is electrical (from the inverter/IGBT switching, voltage spikes, carrier frequency) or mechanical (motor bearings, gearbox, mounting). Use frequency response analysis, spectral measurements, and listening tests to correlate noise tones with the output frequency or the switching frequency. Inspect VFD parameters, cable shielding, and conduit routing, and check for resonance at natural frequency or mechanical wear.

❓ What practical steps can I take to mitigate noise and vibration from a VFD system?

Practical measures include tuning carrier frequency and VFD parameters to avoid exciting natural frequencies, installing dv/dt or sine wave filters to smooth the output waveform, using shielded VFD cable and proper EMC grounding, fitting insulated bearings, and ensuring mechanical alignment of gearbox and motor. Also consider output reactors, proper inverter rating for 480V systems, and avoiding long cable runs without appropriate filters to minimize voltage spikes and short circuit risks. Together, these steps reduce noise issues and improve system reliability.

Reference Sources

Here are five professional and authoritative reference sources related to “VFD Noise & Vibration” that you can use to verify the correctness of this article:

Source Title	Description	Link
Noise and Vibration Sources in Electric Motor Industrial Applications	This thesis discusses the impact of VFD feeding on noise and vibration in electric motor systems.	View Source
Impact of Electrical Noise on the Torsional Response of VFD Compressor Trains	This paper explores how electrical noise affects torsional vibrations in VFD-driven systems.	View Source
Potential Ignition Sources and Protections in Electric Rotating Machines Operating in Explosive Gas Atmospheres	This IEEE article examines vibration and noise issues in VFDs, particularly in hazardous environments.	View Source
A Review on Sensorless Techniques for Sustainable Reliability and Efficient Variable Frequency Drives of Induction Motors	This review highlights advancements in VFD technology and their impact on system reliability and noise reduction.	View Source
Variable Frequency Drive as a Source of Condition Monitoring Data	This IEEE paper discusses how VFDs can be used for condition monitoring, with a focus on noise reduction techniques.	View Source

VFD Buying Guide: Questions to Ask Suppliers - vfd manufacturers in China

Lucas — Wed, 26 Nov 2025 08:06:31 +0000

Selecting the right Variable Frequency Drive (VFD) is crucial for ensuring optimal equipment performance, energy efficiency, and long-term durability. With numerous options available, this comprehensive guide will help you identify the essential questions to ask potential suppliers before making your purchasing decision. By understanding key factors and aligning supplier capabilities with your requirements, you’ll be able to select a VFD that is technically compatible and within your budget.

Introduction to Variable Frequency Drives

VFDs are electronic devices that control the speed and torque of electric motors by varying the frequency and voltage of the power delivered. This enables precise motor operation across various applications, including HVAC systems, industrial machinery, and pumps, where variable motor speed is essential. Regulating motor operation with VFDs significantly reduces energy consumption, extends equipment lifespan, and improves overall process control.

Why VFDs Matter in 2025

Variable Frequency Drives are positioned as critical tools in addressing global energy challenges. Technological advancements combining AI controls and IoT connectivity enable remote system access and performance optimization. With stricter energy regulations being imposed worldwide, VFDs’ ability to reduce energy waste by adjusting motor speeds to match instantaneous demand makes them indispensable in manufacturing, HVAC, and water purification sectors. This flexibility supports both environmental goals and operational cost reduction.

VFD Market Overview

The global VFD market is experiencing steady growth, projected to reach approximately $25 billion by 2030, reflecting a CAGR of more than 5% from 2023. Major factors driving this expansion include the rise of green technologies, governmental energy consumption restrictions, and technological development incorporating IoT and AI. North America, Europe, and the Asia-Pacific lead market growth, with Asia-Pacific experiencing rapid industrialization and infrastructure development. This dynamic market presents diverse solutions across multiple sectors.

Key Features to Consider When Buying a VFD

Feature	Description
Motor & Voltage Compatibility	Ensure VFD matches motor power ratings, including voltage, horsepower, and current capacity, for optimal performance.
Control Functions	Variable-speed control, torque control, and programmable settings for greater application flexibility
Energy Efficiency	VFD is designed to optimize energy use, resulting in significant long-term cost savings
Built-in Protection	Overload protection, short-circuit protection, and thermal management safeguard both motor and drive.
User-Friendly Interface	Intuitive interface with transparent displays and straightforward controls for easy programming and monitoring
Environmental Durability	Built to withstand dust, moisture, and extreme temperatures as indicated by IP rating
Harmonic Mitigation	Harmonic-reduction features improve power quality and minimize electrical system disruptions.

Technical Specifications Checklist

When evaluating VFD technical specifications, verify these essential parameters:

Technical Parameters to Verify

Input Voltage Range: Confirm compatibility with your power supply—single-phase (120V, 230V) or three-phase (208V, 480V, or higher) systems
Output Frequency Range: Most VFDs offer adjustable output frequency from 0 Hz to 400 Hz for effective motor speed control
Power Rating: Match the VFD’s power rating (in kilowatts or horsepower) to your motor’s requirements
Overload Capacity: Check the VFD’s ability to handle temporary overload—commonly 150% overload for 60 seconds
Operating Temperature: Evaluate acceptable temperature ranges, typically -10°C to 50°C, for your specific environment

Energy Efficiency & Durability

Today’s VFDs incorporate cutting-edge energy-saving features, including dynamic motor control that adjusts power consumption to match load requirements. These efficiency improvements not only help achieve sustainability objectives but also considerably lower electricity costs throughout the equipment’s lifespan. Modern VFDs employ robust materials and high-tech components that withstand extreme heat and cold, dust, and moisture. Their durability ensures reliable operations while reducing maintenance and unplanned downtime, helping companies comply with environmental regulations while reducing energy waste and emissions.

Key Benefits of Using VFDs

Energy Savings

VFDs allow motors to operate at the required speeds, significantly reducing energy consumption compared to fixed-speed systems. Studies show that specific applications can reduce electrical energy consumption to as low as 50%, particularly in pumps, fans, and compressors.

Extended Equipment Lifespan

Smooth starts and stops reduce mechanical stress on equipment, leading to less wear and longer operational life. Combined with proper maintenance schedules and real-time monitoring, this extends equipment longevity and optimizes investments.

Improved Process Control

Precise motor speed and torque control enhance efficiency and accuracy across various applications, enabling better system performance and productivity.

Reduced Maintenance Needs

Smoother motor operation reduces breakdowns and maintenance requirements, significantly lowering associated costs and system downtime.

Environmental Compliance

Optimized energy use lowers carbon emissions, supporting sustainability goals and helping businesses meet regulatory compliance requirements.

Typical VFD Applications Across Industries

Industry	Application
Manufacturing	Energy-efficient control of production lines, machinery optimization, and reduced operational costs while maintaining high output levels
HVAC Systems	Variable-frequency drives with real-time monitoring enhance energy efficiency and maintain consistent indoor climates
Water & Wastewater	Pumping systems equipped with VFDs improve efficiency in water distribution and wastewater treatment, conserving energy and reducing expenses.
Oil and Gas	Advanced monitoring and control systems manage energy-intensive drilling and refining processes while reducing emissions.
Renewable Energy	Real-time monitoring supports solar and wind energy systems, ensuring optimal power generation and storage capabilities.

Common Applications Across Industries

Manufacturing: Energy-efficient systems are utilized to optimize production lines, lowering operational costs while maintaining high output levels. This includes equipment like VFDs for controlling machinery.
HVAC Systems: Variable-frequency drives and real-time monitoring are commonly used in heating, ventilation, and air conditioning to enhance energy efficiency and maintain consistent indoor climates.
Water and Wastewater Management: Pumping systems equipped with VFDs improve efficiency in water distribution and wastewater treatment, conserving energy and reducing operational expenses.
Oil and Gas: Advanced monitoring and control systems are used to manage energy-intensive drilling and refining processes, helping reduce emissions and support sustainable extraction.
Renewable Energy: Real-time monitoring supports solar and wind energy systems, ensuring optimal power generation and storage capabilities.

Industrial Applications

Merging cutting-edge monitoring technologies with real-time data from the sources search engine enables sectors to not only optimize their production but also make better-informed decisions. The collation and processing of search trend data help companies anticipate equipment needs, spot emerging market demands, and even improve their supply chain management. For instance, in production, the combination of real-time analytics and search engine insights helps efficiently manage production schedules by predicting consumer behavior and preferences. This interplay between the industrial sector and data insights drives the adoption of more efficient, adaptable, and eco-friendly practices across diverse industries.

HVAC and Building Management

The efficiency and responsiveness of HVAC and building management systems can be unparalleled when combined with the latest data from a search engine. By analyzing search trends related to weather, energy-saving tips, and local temperature patterns, the systems can proactively adjust heating, ventilation, and cooling settings to optimize energy use. For instance, if the search data indicates growing interest in air purifiers during allergy season, the facilities can adjust filtration settings or offer solutions to improve air quality. This integration of real-time data enables building managers to effectively meet occupants’ needs while minimizing energy waste and reducing operational costs.

Expert Tips on Installation and Maintenance

Choose Quality Materials
Invest in durable, high-quality components to ensure long-term performance and minimal maintenance.
Follow Manufacturer Guidelines
Follow the manufacturer’s installation instructions, as they are designed to optimize functionality and longevity.
Conduct Regular Inspections
Periodically check for signs of wear, leaks, or clogs to address potential issues before they become significant problems.
Schedule Routine Maintenance
Clean and service the system regularly to maintain efficiency and prevent buildup or damage.
Hire Qualified Professionals
If unsure about installation or repairs, consult licensed professionals to ensure proper setup and compliance with safety standards.
Protect Against Weather Conditions
Implement measures to safeguard installations from extreme weather, such as insulating outdoor components or securing them during storms.

Installation Best Practices

Key Installation Steps

Conduct a Thorough Site Assessment: Analyze installation environment, space constraints, environmental conditions, and existing infrastructure to identify potential performance challenges.
Use High-Quality Materials: Select materials and components that meet industry standards and are durable enough to withstand expected wear. Quality investments minimize future maintenance costs and failure risks.
Follow Manufacturer Guidelines: Adhere strictly to manufacturer instructions for assembly, placement, and operation to ensure compliance with design specifications and maintain warranty validity.
Ensure Proper Alignment and Calibration: Use precise tools and techniques to verify optimal component performance, preventing operational inefficiencies and damage.
Integrate Smart Technologies: Implement automation and IoT to enable real-time monitoring, enhanced control, and improved energy efficiency.

Maintenance Guidelines

Maintenance Best Practices

Perform Scheduled Inspections: Routine inspections identify potential issues before they become significant problems. Check for physical wear, leaks, and performance irregularities.
Clean Components Regularly: Dust and debris accumulation impact efficiency. Cleaning filters, vents, and moving parts ensures smooth operation and reduces the risk of damage.
Update Software and Firmware: For systems with integrated technologies, ensure all software and firmware remain current for compatibility, security, and access to the latest features
Monitor System Efficiency: Use data and analytics tools to assess performance. Real-time monitoring systems provide valuable insights, preventing energy loss and operational inefficiencies.
Replace Parts as Needed: Follow manufacturer guidelines and use high-quality components to maintain reliability and safety, enhancing system lifespan.

Frequently Asked Questions

What is a VFD, and how does it work?

A VFD is a motor controller that varies the voltage and frequency supplied to an electric motor, enabling control of motor speed and torque. By adjusting voltage and frequency together, the drive controls motor RPM and enables variable-speed operation instead of running at full speed—essential for conveyors, pumps, fans, and other applications.

How do I choose the right VFD for my motor?

Start with your motor nameplate: note horsepower (HP), voltage, full-speed RPM, and whether the application requires variable or constant torque. Consider the available site voltage and select the correct VFD voltage. Decide whether you need a custom or standard unit, and determine whether features such as LED keypads for programming are necessary.

What should I consider when sizing a VFD?

Match the drive’s continuous current rating to the motor’s full-load current, accounting for horsepower and load type (variable torque or constant torque). For motors exceeding 3 HP, consider industrial-standard drives. Check motor starter requirements and determine whether soft-start or precise torque at all speeds is needed.

Can a VFD reduce system energy costs?

Yes. VFDs controlling pumps, fans, or variable-speed loads dramatically reduce energy costs by running motors only as fast as needed rather than at full speed with mechanical throttling. Variable-torque drives yield cubic energy savings in fans and significant reductions in pump energy use, making VFDs an effective cost-reduction tool.

Should I use a VFD for constant torque applications?

For conveyors and constant-torque applications, choose a VFD rated for continuous torque to ensure availability at low speeds. A correctly sized variable-speed drive allows motor operation at lower speeds while maintaining required torque, with correct horsepower and current capability verified beforehand.

How do voltage and frequency affect motor performance?

The VFD-supplied voltage and frequency must be coordinated to maintain the motor’s magnetic flux. When reducing frequency, voltage is typically reduced proportionally to maintain torque. Selecting the correct VFD voltage relative to the available site voltage and motor nameplate ensures efficient motor operation and prevents overheating or torque loss.

Can I use a VFD with a basic motor without modifications?

Generally, yes, but verify the motor’s insulation and cooling requirements. At reduced speeds, cooling fans become less effective, so ensure the motor can handle lower speeds or provide external cooling. Verify motor nameplate ratings, match VFD voltage and current capability, and confirm motor suitability for the intended duty.

Reference Sources

The following authoritative sources provide comprehensive information for verifying VFD specifications and best practices:

IEEE Xplore
Highly authoritative source discussing VFD design, construction, and applications through academic and technical research
ScienceDirect
Leading academic database providing in-depth VFD overviews, including energy-saving techniques and mathematical modeling
OASIS at UNLV
Repository for academic research on power quality issues and efficiency improvements related to VFDs
VFDs.com
Professional resource offering practical advice on VFD selection, including features and buying considerations
VariableFrequencyDrive.com
Comprehensive guide covering VFD basics, buying tips, and video tutorials for VFD-related information

VFD Environmental Impact: Sustainability & Emissions - vfd manufacturers in China

Lucas — Wed, 26 Nov 2025 06:48:40 +0000

Variable Frequency Drives (VFDs) have established themselves as essential technology in contemporary industry, offering environmental benefits and efficiency gains. This comprehensive guide examines VFDs’ significant contribution to sustainability and emissions reduction across different industries, while addressing both their advantages and ecological considerations.

Introduction to VFDs

Variable Frequency Drives (VFDs) are electronic devices that control the speed and torque of electric motors by varying the frequency and voltage of the supplied power. By precisely regulating motor speed to meet application requirements, VFDs not only save energy but also prolong equipment life. They are widely used in industries such as manufacturing, HVAC systems, and water treatment, where motor-driven processes are essential. By boosting motor performance, VFDs enhance operational effectiveness and promote sustainability.

Key Components of VFD Technology

Variable Frequency Drives consist of several critical components that work together to control motor speed and efficiency:

Rectifier – Converts incoming AC power to DC power, creating a stable base for further processing.
DC Link – Acts as an intermediary, smoothing and storing the DC power before conversion back to AC.
Inverter – Converts smoothed DC power back into AC power at the desired frequency and voltage to control motor speed.
Control Unit – Manages overall VFD operation by regulating output based on user input or automated settings, ensuring precise motor control with features such as soft start, torque control, and fault monitoring.
Interface Panel – Provides user-friendly monitoring and adjustment capabilities, often equipped with an LCD and programmable keys.

Basic Functionality and Motor Control

Variable Frequency Drives convert a standard power source’s fixed frequency and voltage into variable frequency and voltage output, enabling precise control of motor speed and torque. VFDs apply advanced algorithms to adjust the frequency and voltage delivered to the motor based on required speed and load, providing soft starting and stopping. This feature is significant in industries such as manufacturing, HVAC, and water treatment, where precision and efficiency are vital. Modern VFDs come equipped with real-time monitoring and diagnostics, helping operators spot faults and make adjustments before they cause downtime and increase maintenance costs.

Benefits of Using VFDs for Energy Reduction

Variable Frequency Drives account for significant energy savings by varying motor speed to match actual load requirements. This eliminates energy waste caused by motors running continuously at maximum speed, regardless of demand variations. VFDs enable efficient power consumption, leading to lower utility bills and reduced CO2 emissions. The precision VFDs provide in controlling motor power contribute to overall system efficiency and motor lifetime, helping reduce operational costs. The industrial and commercial sectors benefit significantly from these advantages, making VFDs a chief remedy for improving energy efficiency.

Key Statistics on VFD Energy Savings:

Almost 46% of the world’s electricity used for industrial processes is consumed by motors
VFDs can help save up to 30% of energy in industrial applications
In variable-torque applications like fans and pumps, energy savings often reach 20–50% or more
Power consumption scales with the cube of speed, meaning small speed reductions yield substantial energy savings

Cost Reduction Through VFD Implementation

Variable Frequency Drives primarily reduce electricity bills by tuning motor speed to load requirements. VFDs provide more control than constant-speed motors, allowing the motor to consume only the energy required for the task. By matching energy demand and supply, VFDs lower costs and reduce the carbon footprint, making them ideal for environmentally friendly business practices and energy-use optimization.

Cost Savings Benefits:

Direct reduction in electricity bills
Lower equipment maintenance costs due to reduced wear and tear
Extended equipment lifespan reduces replacement frequency
Improved return on investment over system lifetime
Reduced demand on utility infrastructure

Applications in Various Industries

Variable Frequency Drives are an essential part of a wide range of industrial applications due to their numerous advantages and high efficiency:

Industry	VFD Application	Primary Benefits
Manufacturing	Controlling conveyor belts, mixers, and pumps	Energy efficiency, speed control, and reduced tedium
HVAC Systems	Heating, ventilating, and air-conditioning large commercial and residential buildings	Substantial reduction in energy costs, improved comfort
Water & Waste Management	Controlling pump speed in response to flow demand	Operational efficiency, waste prevention, responsive control
Renewable Energy	Power output control in wind and solar systems	Grid stability maintenance, increased clean energy effectiveness

Environmental Impact of VFDs

Variable Frequency Drives play a significant role in reducing energy consumption and greenhouse gas emissions. By adjusting motor speed to exact load requirements, VFDs prevent energy waste in industries and the service sector. This efficiency reduces demand for fossil fuels, contributing less to CO2 emissions from operations. The use of VFDs in renewable energy sources enhances the effectiveness and reliability of resource management, aligning with global efforts to promote sustainability and combat climate change through energy-efficient technologies.

Almost 45% of global electricity consumption comes from electric motors, making their efficiency vital to the fight against climate change. VFDs allow motors to run at optimal speeds in response to varying load conditions, drastically reducing energy consumption and resulting in direct decreases in greenhouse gas emissions. Industries installing VFDs have achieved energy savings of up to 30%, making massive contributions to reducing the carbon footprint and supporting global movements like the Paris Agreement, which calls for energy-efficient technologies as necessary for achieving climate goals.

Integration with Renewable Energy

VFDs are essential components in reducing energy consumption across industries, directly affecting global initiatives to combat global warming. Recent assessments show that by using VFDs, electric motors—one of the largest consumers of electricity worldwide—can achieve dramatic efficiency gains. VFDs reduce energy waste by controlling motor speed and torque with high accuracy to meet operational demands, achieving energy consumption reductions of 30–50% in some cases.

VFDs are invaluable for integrating renewable energy systems, providing the flexibility needed to manage fluctuating power inputs. This adaptability is essential during the industrial transition to green, solar, and wind-based grids. VFDs are well-positioned to meet environmental goals set in global pacts like the Paris Accord by being part of industrial infrastructure. Their contribution to stabilizing the energy system qualifies them as the technology of choice in the battle against climate change.

Challenges and Environmental Considerations

Environmental Drawbacks to Address:

Electrical Harmonics

VFDs can generate electrical harmonics that degrade power quality throughout the system and may cause equipment outages. This requires mitigation strategies, such as harmonic filters, to address appropriately.

Production Impact

VFD production generates materials and uses processes that can have adverse environmental effects, including concerns about resource extraction and electronic waste. Adopting sustainable sourcing practices can help reduce this impact.

VFD Production and Resource Extraction

Variable Frequency Drives are produced with extensive environmental considerations. Obtaining materials for VFD production—metals, plastics, and electronic components—requires mining and processing, which depletes natural resources and emits greenhouse gases. Energy-intensive production methods increase VFDs’ carbon footprint. Recycling and sourcing sustainable materials are among the ways to lessen environmental impact, though industry uptake remains low. Proper disposal and recycling methods for VFD electronic waste must be emphasized, as this waste can release toxic substances if not properly treated. Design processes that prioritize durability and efficiency can gradually reduce the environmental footprint of VFD production.

End-of-Life Concerns and Disposal Issues

End-of-life management of Variable Frequency Drives remains a significant challenge for the industry. Current data shows that around 20 to 50 million metric tons of e-waste are produced worldwide each year, with VFDs being a substantial contributor to the e-waste stream due to their widespread use in industrial and domestic applications. Proper disposal is essential, as circuit boards and capacitors can be contaminated with hazardous materials, particularly lead and cadmium, which can enter soil and water, causing long-term environmental damage.

Manufacturers’ take-back programs and recycling schemes encourage users to send obsolete equipment back for safe processing. Modern recycling methods have advanced to the point where valuable metals like copper and aluminum can be recovered, lessening demand for new raw materials and completing the material cycle in a circular economy. Educating consumers and businesses about responsible e-waste management is critical, as raising awareness helps reduce environmental risks and ensure compliance with increasingly strict regulations worldwide.

Balancing Benefits and Environmental Impact

Progress in E-Waste Recycling:

Current Recycling Rates: In 2023, roughly 17% of the total e-waste generated was recycled appropriately, a considerable increase from earlier times.

Positive Outcomes: New technologies have considerably reduced environmental footprints by containing the spread of hazardous materials, supporting conservation of resources, and sustainability objectives.

However, total acceptance of responsible recycling practices remains incomplete. A large amount of electronic waste still ends up in landfills or is sent to poor countries, where toxic materials are difficult to dispose of safely. The technology required for high-level recycling is expensive and can deter businesses from going green. Developing a harmonious relationship among all stakeholders through continuous innovation, supportive regulatory frameworks, and increased public awareness is key to ensuring the long-term sustainability of e-waste recycling projects.

The Future of VFD Technology in Sustainable Development

VFD (Variable Frequency Drive) technology has recently made significant strides and is poised for new heights in energy efficiency and intelligent motor control. Current advancements include:

IoT Integration and Advanced Sensors: Enabling real-time process monitoring and predictive maintenance, reducing idle time, and ensuring optimal system performance.
Compact Design: Producers are creating smaller, lighter VFDs that take up minimal space in industrial settings without sacrificing efficiency.
AI Integration: Artificial Intelligence offers new ways to analyze and automate processes, leading to more accurate operations and enhanced performance.
Vfdsreen Energy Compatibility: VFDs are being designed to easily adapt to variable inputs from renewable energy sources such as solar and wind, making energy systems more flexible and resilient.

Market Growth Projections

The market for energy-saving solutions is expected to grow significantly in the years ahead, driven by global emphasis on sustainability and stringent energy regulations. The latest forecasts indicate that the global market for energy-efficient solutions will exceed $200 billion by 2030, with a compound annual growth rate (CAGR) of around 8%. Key growth drivers include increased adoption of energy-efficient technologies across sectors, progress in integrating renewable energy, and government actions that promote environmental consciousness.

Innovative technologies such as variable frequency drives, energy management systems, and IoT devices are at the forefront of this movement, offering both economic and environmental benefits over traditional systems. The Asia-Pacific and Latin American regions, emerging markets experiencing rapid industrialization and urbanization, are likely to drive the most significant growth as demand for green solutions increases.

VFD Equipment Maintenance and Installation Guide

Installing a VFD requires attention to cooling, filtering, and proper electrical grounding to prevent harmonics and ensure reliable operation. While VFDs reduce wear and tear and lower overall maintenance, periodic checks are necessary:

Maintenance Checklist:

Periodic inspection of the motor and VFD components
Verification of compatibility with VFD system components
Firmware updates and optimization of control settings
Cooling system monitoring to prevent overheating
Filter inspection and replacement as needed
Electrical grounding verification to prevent harmonic issues

Frequently Asked Questions

What is a VFD, and how does it relate to environmental impact?

A VFD (variable frequency drive), also called a variable-speed drive, is an electronic system that controls the frequency and voltage supplied to a motor to achieve precise speed control. By adjusting motor speed to match load requirements rather than running at a constant speed, VFDs can significantly reduce energy consumption and lower environmental impact by reducing greenhouse gas emissions and lessening demand on power generation.

How do variable speed drives minimize energy use?

Variable-speed drives offer precise control over motor speed, allowing adjustment when full power isn’t needed. This reduces energy consumption because the drive matches output to load requirements, resulting in significant energy savings and lower energy costs compared to the high energy waste of constant-speed systems.

What are the main environmental benefits of using a VFD?

Benefits include significant energy savings, reduced environmental impact, and lower power plant emissions. By reducing energy consumption, mechanical stress, and equipment wear and tear, VFDs enhance energy efficiency and equipment longevity, contributing to environmental protection and reduced maintenance requirements.

Can VFDs reduce wear and tear and extend equipment life?

Yes. By providing smooth acceleration and deceleration and avoiding frequent starts/stops at full torque, VFDs reduce mechanical stress on motors and driven equipment. This reduced wear and tear leads to lower maintenance costs, longer equipment life, and better overall performance and efficiency.

How do VFDs deliver cost savings in industrial facilities?

In industrial facilities using pumps, fans, conveyors, and compressors, VFDs can significantly reduce energy consumption and lower operating costs. Control and energy savings translate into reduced utility bills, lower maintenance costs, and extended equipment life—all of which contribute to long-term cost savings and improved return on investment.

Are there situations where VFDs might not be the best choice?

VFDs are highly effective when loads require variable speeds but may be less cost-effective for small, constant-speed applications with minimal runtime. Additionally, compatibility issues may arise with certain motors or controls; choosing the right motor and VFD combination and ensuring proper installation are essential to realize energy efficiency and performance benefits.

How do VFDs affect energy efficiency standards and regulatory compliance?

By significantly reducing energy consumption across many applications, VFDs help industrial facilities meet energy-efficiency standards and regulatory goals. They serve as practical tools for energy management programs, offering measurable reductions in high energy use and assisting organizations to comply with environmental protection policies and efficiency targets.

How much energy can be saved by adjusting motor speed with VFDs compared to constant speed operation?

Energy savings depend on the application and load profile. In variable-torque applications like fans and pumps, VFDs can significantly reduce energy consumption—often by 20–50% or more—because power consumption scales with the cube of speed. Adjusting motor speed based on load rather than running at a constant speed results in substantial reductions in energy consumption and lower energy costs.

Reference Sources

The following professional and authoritative sources provide comprehensive information on VFD environmental impact:

ScienceDirect

Title: A comprehensive analysis of the energy, economic, and environmental impacts of industrial variable frequency drives

Description: Provides in-depth analysis of the energy, economic, and environmental benefits of VFDs, including input-output analysis for broader impacts.

IEEE Xplore

Title: Electrical Design in Petrochemical Facilities-Considerations for Reducing the Environmental Impact

Description: Discusses environmental considerations of VFDs in industrial applications, particularly in petrochemical facilities.

Renewable Energy and Power Quality Journal (REPQJ)

Title: Energy reductions in the pulp-and-paper industry by upgrading conventional pumping systems through the installation of VFDs–a case study

Description: A case study focusing on energy savings and environmental benefits achieved by implementing VFDs in the pulp-and-paper industry.

VFD for Compressor Control: Pressure & Energy Management - vfd manufacturers in China

Lucas — Wed, 26 Nov 2025 05:21:44 +0000

Compressors are key modules across various industries, consuming most of the energy that drives operations. Variable Frequency Drives (VFDs) offer an efficient solution for controlling compressors by varying motor speed in response to demand. This comprehensive guide examines how VFD technology optimizes pressure controls, reduces energy consumption, and contributes to improved sustainability.

Introduction to VFDs and Their Role in Compressor Control

Variable Frequency Drives (VFDs) play a crucial role in optimizing compressor control by adjusting motor speed to match demand. Instead of running a compressor at full speed constantly, VFDs regulate the output based on fluctuating pressure or system needs. This results in reduced energy consumption, lower operating costs, and less mechanical wear on the equipment. By enhancing efficiency and performance, VFDs provide a reliable and sustainable solution for modern compressor systems.

Importance of VFDs in Modern Compressor Systems

Variable Frequency Drives have become critical components in new compressor systems, offering significant energy efficiency benefits. Industrial systems with VFDs can save from 30% to 50% of energy through precise engine speed control, ensuring compressors operate at optimal states tuned to real needs rather than at higher consumption levels.

Environmental Impact & Equipment Longevity

Studies indicate that energy savings from VFDs lower greenhouse gas emissions, advancing sustainability goals for industries worldwide. The adaptability of VFD systems allows compressed-air systems to operate across a wide range of conditions without undue stress, prolonging equipment life and reducing maintenance expenses. This combination of cost-effective operation and environmental stewardship promotes a greener future while maximizing return on investment.

How VFDs Reduce Energy Waste

A standard motor-drive system operates in a single-speed regime, consuming energy even when the motor is not in use. This results in significant energy waste, especially when motor demand is low. A VFD solves this problem by adjusting motor speed to the precise level required by the system, enabling optimized energy use at all times.

Motor systems with VFDs can reduce energy consumption by up to 50% under certain conditions. In manufacturing, water treatment, and HVAC industries—where motors often run at less than full capacity—VFD control minimizes energy waste, directly reducing operating costs and enhancing the carbon footprint. Furthermore, VFDs help smooth power startup, resulting in a steady, effective electrical system.

Benefits of Using VFDs in Compressor Systems

⚡ Energy Efficiency

VFDs optimize energy usage by adjusting motor speed to match load requirements, significantly reducing energy consumption and costs.

🔧 Reduced Wear and Tear

By operating compressors at variable speeds, VFDs minimize mechanical stress, extend equipment lifespan, and reduce maintenance needs.

💰 Lower Operating Costs

Improved energy efficiency and reduced maintenance result in substantial cost savings over the system’s lifetime.

📊 Improved Process Control

VFDs provide precise control over compressor output, ensuring consistent performance and adapting to changing operational demands.

🌱 Environmental Benefits

Reduced energy use directly translates into a smaller carbon footprint, supporting sustainable operations and corporate responsibility goals.

Energy Efficiency and Cost Savings

Energy conservation not only reduces operational costs but also helps meet sustainability goals on a global scale. Recent data indicate that energy consumption can be reduced by 30–50% in industrial applications through advanced technologies, particularly Variable Frequency Drives. This implies an excellent return on investment through savings on utility bills.

💡 Key Takeaway: Energy-conscious organizations can leverage government incentives and rebates to align investments with profitability and environmental stewardship, enabling the implementation of lean manufacturing methods that minimize waste.

Enhanced System Longevity

Systems that integrate VFDs extend equipment longevity by reducing wear and tear. VFDs optimize motor performance by controlling speed and torque, resulting in fewer maintenance needs, reduced overloads, and fewer overheating incidents. These cost-effective techniques help businesses minimize maintenance costs while extending asset lifespans, enabling a larger, more reliable, and more efficient infrastructure.

Key Features to Look for in a VFD

Feature	Description
Energy Efficiency	Optimizes energy consumption by adjusting motor speed to match application demands, reducing unnecessary power usage
Compatibility	Ensures compatibility with motor type and specific application requirements, including voltage, power rating, and control features
Ease of Use	User-friendly interfaces, intuitive programming, and precise diagnostics simplify operation and troubleshooting.
Protection Features	Advanced protection mechanisms, including overload, short-circuit, and overvoltage protection, safeguard the motor and VFD.
Durability and Reliability	Built to withstand harsh environments with long-term reliability and resistance to dust, moisture, and vibration
Scalability	Flexible design allowing adaptation to future application needs and integration with other systems

Energy Monitoring Capabilities

The current generation of VFDs is equipped with advanced energy-monitoring capabilities to track power consumption and system performance precisely. These monitoring functions track real-time energy usage, enabling a better understanding of energy efficiency needs, pinpointing inefficiencies, and optimizing energy management. By integrating energy-monitoring capabilities with VFDs and IoT platforms, control and monitoring can be secured remotely, enabling predictive maintenance and maximizing operational efficiency.

Advanced Control Options

Modern Variable Frequency Drives feature advanced control capabilities enabling more precise motor control and optimized system operations. Features such as sensorless vector control, closed-loop control, and auto-tuning enable optimization of motor performance as load demands vary. Through communication protocols such as Modbus, Ethernet/IP, and Profibus, VFDs seamlessly connect to industrial automation systems, allowing precise torque and speed control while minimizing unnecessary energy wastage. Combining these smart controls with IoT analytics guarantees optimal performance management aligned with specific processes.

Latest Technological Advancements in VFDs for Compressors

Modern Variable Frequency Drives for compressors now represent significant advancements in efficiency and performance. Key innovations include embedded motor control algorithms that optimize energy use and reduce wear on compressor components. Built-in diagnostics and predictive maintenance features, often powered by AI and IoT connectivity, ensure real-time monitoring and early detection of potential issues, minimizing downtime. Integration of cloud-based systems enables remote monitoring and management, streamlining operations and maintaining continuous, high-performance delivery.

AI-Driven Predictive Control

Advanced algorithms improve VFD efficiency through predictive control, pattern-matching techniques, and condition monitoring, along with expert systems. AI uses real-time data to identify behavioral patterns and forecast operational changes, dynamically adjusting motor speed and energy consumption to improve efficiency continuously. For example, AI solutions can detect significant changes in motor vibration, indicating the need for timely preventive maintenance and averting in-service equipment failures. AI constantly learns from large databases, fine-tuning predictive performance for smarter industrial operations.

Cloud-Based Analytics Integration

Integration of cloud-based analytics with Variable Frequency Drives transforms operational efficiencies. With real-time data analytics from cloud platforms, these systems dynamically adjust compressor speed in response to varying demand, enhancing energy savings and aligning with operational cost targets. High-end controls improve system reliability and extend equipment life by enabling more effective monitoring and corrective actions.

Energy Recovery Innovations

Variable Frequency Drives enable energy recovery innovation by collaborating with cloud analytics, allowing companies to develop precise energy models. VFDs allow motor speed adjustment to meet real-time system requirements. A plant using VFDs saves energy, consuming 35–50% less energy than traditional systems. This fine-tuned capacity delivers substantial energy savings while supporting eco-friendly operations, allowing businesses to reduce energy costs and minimize their carbon footprint simultaneously.

Best Practices for Installing and Maintaining VFDs

Installation Best Practices

Proper Selection and Sizing: Ensure the VFD is appropriately sized and compatible with motor and load requirements. Using correct specifications prevents overloads and ensures optimal performance.
Follow Manufacturer Guidelines: Adhere to the VFD manufacturer’s installation instructions, including proper wiring, grounding, and environmental considerations, to avoid malfunctions or damage.
Location and Environment: Position the VFD in a clean environment with adequate ventilation and temperature control. Installation environments should be relatively dust-free, moisture-free, and vibration-proof. For harsh environments, protective cabinets may be necessary.
Cable Management: Use shielded cables for all signal and electrical connections to reduce electromagnetic interference (EMI). Route power and control cables separately to avoid signal failures and system instability.
Grounding: Ensure grounding strictly follows manufacturer guidelines to minimize noise and ensure smooth operation.
Load Compatibility Checks: Verify the suitability of motor and VFD ratings before installation, confirming that voltage and frequency are within operational requirements.
Test Before Commissioning: Perform a series of tests after installation to verify connection integrity, program configuration, and safety settings before front-loading operations.

Maintenance Best Practices

Regular Inspections: Conduct regular checks of the VFD system and connected motor to detect any technical alterations. Inspect for damages, disconnections, and overheating to avoid significant problems and costly outages.
Clean the System: Ensure VFD and motor surfaces are free of dirt and pollutants. Dirt can block air passages, leading to overheating and inefficiency. Use suitable cleaning methods per manufacturer guidelines.
Monitor Operating Conditions: Constantly monitor temperatures, loads, and vibrations. Take advantage of diagnostic tools that most modern VFDs provide to assess behavior and identify exceptions.
Check Electrical Connections: Regularly inspect electrical terminals for looseness, as this can cause voltage sag, short circuits, or system failure. Maintain stable connections for safety and reliable operation.
Update Firmware and Software: Follow manufacturer guidelines for the latest firmware and software updates. New versions often include additions, bug fixes, and performance improvements.
Training and Documentation: Request training support for personnel who operate and maintain the VFD system. Document maintenance schedules and record problems encountered and their resolutions for future reference.

Additional Protective Measures

Ensure Adequate Cooling and Ventilation: Install the VFD in a location with sufficient airflow to prevent overheating. Maintain a clean environment to reduce dust and debris interference with cooling mechanisms.

Protect Against Power Surges: Use surge protectors or line reactors to shield the VFD from voltage spikes that could cause malfunctions or long-term damage.

Proper Training for Staff: Ensure maintenance and operations personnel are thoroughly trained in VFD functionality and troubleshooting to maintain optimal performance and avoid misuse.

Frequently Asked Questions (FAQs)

What is a VFD for compressor control, and how does it differ from a traditional compressor setup?

A Variable Frequency Drive (VFD) is a controller that adjusts frequency and voltage supplied to the electric motor to change compressor speed. Unlike fixed-speed or traditional compressors that run at constant speed and use on/off cycling or mechanical throttling for capacity control, a compressor equipped with a VFD matches compressor speed to air demand, providing finer capacity control and improved efficiency.

How does using a variable frequency drive improve energy efficiency and control?

A VFD adjusts motor speed and compressor output to match the load, reducing wasted energy from constant-speed operation. For industrial compressors with variable air demand, VFD control delivers significant energy savings by running at lower speeds during light loads. In screw compressors, power reductions are roughly proportional to the cube of speed, substantially improving overall energy efficiency and control.

Can VFDs be used with all compressor types, including screw and refrigeration compressors?

Many compressor manufacturers offer models equipped with VFDs or VFD retrofits for screw, reciprocating, and refrigeration compressors. VFD control of refrigeration compressors and heat pumps enables precise cooling demand response. However, compatibility depends on the compressor motor, control mode, and manufacturer guidance—consult your compressor manufacturer before installation.

Which sensors and control system components are required for effective VFD compressor control?

An effective VFD control system uses a control panel, pressure sensor (suction and air pressure feedback), and a controller algorithm to adjust compressor speed to match air supply to demand. Capacity control can include PID loops, master controller networks for multiple compressors, and inputs for cooling demand or system pressure to maintain setpoints while optimizing energy efficiency.

How does a VFD affect compressor start-up and motor torque compared to a soft start?

A VFD provides soft-start functionality by ramping frequency and voltage, limiting inrush current and gently accelerating the compressor motor. Compared to standalone soft starters, a VFD also controls continuous speed and torque during operation, enabling lower-speed operation and improved process stability without the mechanical stress of frequent starts that traditional compressors endure.

What are the operational limits of a compressor VFD?

VFDs allow lower-speed operation down to the minimum speed set by motor and compressor design; running below that may cause inadequate lubrication or surging. Control must prevent operation below safe suction pressure or create high-pressure conditions. The control mode should include protections for low and high pressure, as well as a minimum speed limit.

Reference Sources

The following professional and authoritative sources provide in-depth insights into VFD technology and compressor control:

VFD for Fan Control: Energy Efficiency & Performance - vfd manufacturers in China

Lucas — Mon, 17 Nov 2025 05:58:16 +0000

Variable Frequency Drives (VFDs) have changed the operation of fans and provided an excellent method to improve energy efficiency and performance. VFDs not only lower energy use but also reduce operating costs by adjusting a fan’s motor speed in response to real-time demand, thereby extending equipment life. This blog post examines the significance of VFDs in today’s fan control systems, focusing on how they save energy while operating at optimal efficiency. It does not matter if you are a facility manager, an engineer, or someone interested in sustainability; this article will provide helpful information on using VFD technology to achieve more innovative, efficient operations.

How VFDs Work in Fan Systems

The VFDs, or Variable Frequency Drives, are used to control the speed and torque of fan motors by varying the frequency and voltage of the electrical power supplied to the motor. By controlling the motor speed, VFDs ensure the fan operates only at the required speed in response to real-time airflow demands. This practice not only helps save energy but also extends the motor’s lifespan by reducing wear and tear. VFDs find their rightful place in HVAC systems with varying airflow requirements, as they enable smooth, rapid, and precise system adjustments while maintaining performance. Thus, they become a necessity for dual purposes: energy efficiency and system life-extension optimization.

Basic Functionality of VFDs

VFDs (Variable Frequency Drives) are devices that control the speed and torque of an electric motor by varying the frequency and voltage delivered to the motor. This is achieved through a step of operations that includes rectification, smoothing of the DC bus, and inverter circuits. At the outset, AC power from the mains is converted to DC power by a rectifier. Later, this DC power is filtered and stored in capacitors to maintain a steady flow. Finally, the inverter is the last component that converts DC to AC at a different frequency and voltage, which sets the motor’s speed. Technological developments in VFDs, together with automated control systems, have enabled real-time parameter adjustment based on load requirements, system feedback, and environmental factors.

Key Components of Variable Frequency Drives

Variable Frequency Drives consist of several essential components that work together to adjust motor speed and improve energy efficiency:

Rectifier
Converts incoming AC power into DC power.
DC Bus
Stores and filters the DC power to provide a stable energy flow.
Inverter
Converts the DC power back into adjustable-frequency AC power to control motor speed.
Control Circuit
The VFD’s brain processes user inputs and system parameters to regulate motor operation.
Cooling System
Prevents overheating of the internal components, ensuring reliability and durability.

Benefits of Using VFDs for Fan Control

✓ Energy Savings
VFDs allow fans to operate at variable speeds, reducing energy consumption by matching output to actual demand rather than running continuously at full capacity.
✓ Improved Control
Users can precisely adjust fan speed to achieve desired airflow levels, enhancing system efficiency and comfort.
✓ Reduced Wear and Tear
By gradually starting and stopping fans, VFDs minimize mechanical stress on motors, extending equipment lifespan.
✓ Lower Noise Levels
Fans running at reduced speeds produce less noise, creating a quieter operational environment.
✓ Cost Efficiency
Lower energy usage and maintenance requirements result in significant long-term cost savings.

Energy Efficiency and Cost Savings

Key Insight: The incorporation of Variable Frequency Drives (VFDs) into HVAC and industrial systems has changed the picture of energy efficiency. VFDs can reduce energy consumption by 30-50%, depending on the application and operating conditions, by adjusting motor speed in real time to meet demand. The entire scenario, therefore, aligns with global energy-saving initiatives and simultaneously results in significant reductions in operational costs.

Improved Process Control with Variable Speed

VFDs or Variable Speed Drives are undoubtedly the most essential devices for achieving excellent process control in industry and commerce. By providing precise adjustments to motor speed and torque, VFDs enable systems to respond quickly to varying operational needs. The control power at this level not only provides stability in the process but also in the product, and, along with that, it minimizes waste.

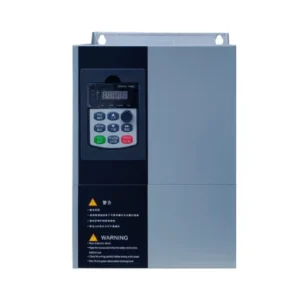

Practical Tips for Implementing VFDs

1
Assess Your System Needs
Begin by analyzing your current system requirements, including the type of equipment, load demands, and energy usage patterns. This helps determine the appropriate VFD specifications.
2
Choose the Right VFD
Select a VFD that matches the motor type and load requirements. Ensure it has the necessary features, such as overload protection and compatibility with automation controls.
3
Plan for Proper Installation
Follow the manufacturer’s installation instructions, and ensure the VFD is placed in a well-ventilated, clean environment to avoid overheating or contamination.
4
Program the VFD Effectively
Configure the VFD settings to match your operational goals, such as speed ranges and control modes, to optimize performance and energy efficiency.
5
Conduct Regular Maintenance
Schedule routine inspections to check for dust accumulation, overheating, and wear on connections. Regular maintenance extends equipment lifespan and ensures smooth operation.
6
Train Your Staff
Provide personnel training to ensure proper operation, troubleshooting, and handling of the VFD, minimizing downtime and improving efficiency.

Proper Sizing and Selection of VFDs

Getting the right Variable Frequency Drive (VFD) for your application requires accurate sizing to ensure optimal performance and efficiency. The procedure includes looking at the motor’s current rating, power rating, and application characteristics. Start by getting the motor’s voltage and current specifications, and the connected equipment’s operational requirements, such as load torque, speed range, and duty cycle. Also, consider environmental factors such as temperature, humidity, and potential contamination, as these may determine the VFD’s enclosure type and protection rating.

💡 Pro Tip: Leveraging sophisticated tools, such as online configurators or manufacturer-provided sizing software, will simplify and speed up the selection process. These tools help you find the most suitable VFD for your system by checking key parameters, thereby reducing the risk of undersizing or oversizing. Proper sizing not only ensures optimal energy efficiency but also reduces maintenance costs and downtime, providing a reliable, cost-effective solution for your operational needs.

Monitoring and Maintenance of VFD Systems

Proper monitoring and maintenance of VFD systems are crucial to keeping them in good working order and extending their lifespan. Regular inspection of key components, such as cooling fans, power connections, and capacitors, will help detect failures promptly. Condition monitoring systems can be implemented to provide real-time data on VFD operations, including temperature, vibration, and current flow, enabling proactive maintenance. Predictive analyses can help uncover patterns in the data that foreshadow wear or performance decline, enabling timely interventions.

Maintenance Schedule: A question that is often asked is, “What is the recommended VFD service interval?” Based on industry standards and expert recommendations, a complete inspection should take place every 12 to 18 months. However, high-demand environments might necessitate more frequent checks. Moreover, cleaning cooling fans, checking for dust accumulation, inspecting cables, and replacing worn parts should all be included in routine servicing. The use of up-to-date data and monitoring tools guarantees that VFD systems are not only energy-efficient but also free from unplanned downtime, thereby ensuring productivity is not hindered.

Challenges and Considerations

Variable Frequency Drives (VFDs) have been a game changer in fan control management, offering a wide range of benefits, including, but not limited to, energy savings, operational control, and, not to mention, precision. Nonetheless, hurdles remain to be tackled. One primary problem is the hefty initial setup cost, as VFD networks require a significant cash outlay for both devices and their implementation. Plus, the motors will need a VFD-friendly alternation for the VFD. This implies that the existing equipment has to be thoroughly assessed before its actual use.

The risk of distortion is also a significant issue that needs consideration, among other things, as it cannot be avoided that this distortion may cause difficulties across different electrical systems and even lead to inefficiency if not addressed. Proper filtering and grounding are critical for addressing the problem. Moreover, VFD systems maintenance may require a specialized technician; thus, it will not be easy. Regular checks, firmware updates, and round-the-clock system monitoring are indispensable for reliability and longevity.

Relying on the latest technology and innovations, such as artificial intelligence-enabled analytics and automated diagnostics, ensures not only the elimination of these problems but also better results. These technologies pave the way for predictive maintenance and, at the same time, standardize VFD performance for fan control, leading to direct savings and reduced downtime. Understanding these differences and leveraging the latest technology, companies can gain the maximum advantage from VFD systems while dealing with their complex nature.

Initial Costs of VFD Implementation

The initial costs of a Variable Frequency Drive (VFD) system will vary depending on factors such as its size, type, and specific features. Typically, the first investment comprises the VFD itself, installation costs, and, in some cases, upgrading the existing infrastructure.

💰 ROI Consideration: Though the initial expense may appear considerable, especially for large-scale projects, it is worth considering the system’s long-term financial benefits. Research and industry data indicate that the time to recoup the investment in a VFD system ranges from a few months to 2 years, depending on the application. Furthermore, advanced analytics facilitate decision-making by predicting energy savings and performance improvements, making the upfront investment a wise choice for many companies.

Compatibility Issues with Electric Motors

Harmonic distortion-induced motor overheating is usually the main compatibility issue in VFD integration with electric motors. VFDs change the motor’s power supply, which can cause excessive heating and eventually burn out the insulation if the motor is not designed for use with VFDs. Also, older motors that are sometimes neither provided with sufficient insulation nor rated for inverter use are often subject to premature wear. Besides, there are voltage drops, which decrease efficiency and cause some loads to get less or no torque. The industry best practices, supported by current search trends, include selecting motors rated for VFD operation (inverter-duty motors) and applying proper grounding and shielding to eliminate the issues effectively. It is necessary to address compatibility issues to achieve optimal system performance, durability, and return on investment.

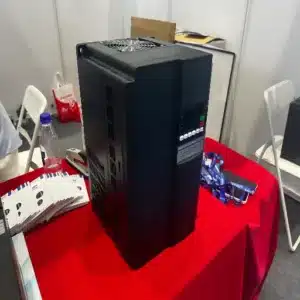

Future Trends in VFD Technology

The future of Variable Frequency Drive (VFD) technology is turning towards energy efficiency, advanced automation, and improved communication as significant attributes. One trend that stands out is the integration of VFDs with intelligent systems and IoT, enabling real-time monitoring, predictive maintenance, and improved diagnostics. Further, new developments in semiconductor materials, such as silicon carbide (SiC), are expected to lead to more compact, power-efficient VFDs. Moreover, manufacturers are still ahead of the game when it comes to eco-friendly solutions, with new designs featuring lower harmonic distortion and better power factor. These developments will be the primary drivers of innovation and the broadening of VFD applications across different industries.

Integration with IoT and AI for Optimization

The coupling of Variable Frequency Drives (VFDs) with IoT and Artificial Intelligence (AI) technologies is changing the landscape of industrial processes by enabling more intelligent, efficient systems. With VFDs linked to IoT networks, real-time information can be gathered, analyzed, and used to enhance productivity and reduce power consumption. Advanced diagnostics using AI algorithms can predict equipment failure, enabling predictive maintenance and, consequently, a significant reduction in downtime. Besides, AI-powered insights can modulate motor performance in line with varying operational needs, thereby maintaining the highest efficiency while reducing costs. These innovations demonstrate that IoT- and AI-powered VFDs are at the forefront of the automation and industrial optimization future, and they align with the global trend toward innovative, green technologies.

Emerging Motor Technologies in VFD Applications

The rise of motor technologies, together with Variable Frequency Drives (VFDs), is going to be a game-changer in modern industries. Over the last few years, one of the major trends has been the inclusion of highly efficient motors, such as Permanent Magnet Synchronous Motors (PMSMs) and Brushless DC (BLDC) motors, in VFD applications. These types of motors offer higher energy efficiency, reduced power waste, and better performance precision, which are significant advantages. Moreover, the growing trend of IoT connectivity in motor systems enables real-time monitoring and control, ensuring not only efficiency but also intelligence.

Reference Sources

Here are five professional and authoritative reference sources that you can use to verify the correctness of your article on “VFD for Fan Control.” These sources are from academic and research-focused platforms:

Comparison of different fan control strategies on a variable air volume system through simulations and experiments
Source: ScienceDirect

This paper introduces analytical models of VFD-motor-fan operation, including motor and VFD efficiency degradation at partial speeds.
Effect on energy use and greenhouse microclimate through fan motor control by variable frequency drives
Source: ScienceDirect

This study evaluates the performance of fans controlled by VFD systems, focusing on energy savings and improvements in the microclimate.
Energy conservation improvement and ON–OFF switch times reduction for an existing VFD-fan-based cooling tower
Source: ScienceDirect

This research proposes a temperature-zone method to optimize fan control in cooling towers, thereby enhancing energy conservation.
Investigation of the accuracy of VFD analog output data and the energy performance of different voltage controls in a VFD-motor-belt-fan system
Source: ScienceDirect

This paper examines the energy performance and accuracy of VFD systems in motor-belt-fan setups.
VFDs on Process Fans-When Are They a Good or a Bad Idea?
Source: IEEE Xplore

This article discusses the application of VFDs on process fans, analyzing fan laws and their impact on efficiency and performance.

Frequently Asked Questions (FAQs)

What is a VFD for fan control?

A Variable Frequency Drive (VFD) for fan control is an electronic device that controls the speed of an electric motor by varying the frequency and voltage of the power supplied to it. This enables precise fan speed control, improving energy efficiency and performance across various applications, including ventilation and HVAC systems.

How does using a VFD to control fan speed work?

Using a VFD to control the fan speed involves adjusting the power supply frequencies delivered to the motor. By changing the frequency, the VFD can increase or decrease the motor speed, enabling optimal performance tailored to the specific requirements of the system, such as temperature control or indoor air quality improvement.

What are the benefits of VFD-controlled fans?

VFD-controlled fans offer several benefits, including significant energy savings, reduced motor wear and tear, and improved operational efficiency. By modulating fan speed in response to real-time requirements, VFDs can reduce energy use, lowering operational costs and improving performance in multi-fan ventilation systems.

Can VFDs be used in older fans?

Yes, VFDs can be retrofitted to older fans to improve their performance. However, it is essential to consult the motor manufacturer to ensure compatibility and to understand any service-factor limitations that may affect the motor’s operation and longevity when used with a VFD.

What should I consider when using a VFD for exhaust fans?

When using a VFD for exhaust fans, consider factors such as power supply frequencies, the ventilation system’s specific requirements, and the need for any additional motor controllers. Proper installation and configuration are crucial to ensure efficient operation and prevent issues such as mechanical resonance or significant vibrations that could lead to fan failure.

How can VFDs help reduce energy costs?

VFDs help reduce energy costs by enabling precise speed control, allowing fans to operate at lower speeds when full speed is not necessary. This significantly reduces energy consumption, especially in systems with variable load conditions, such as industrial fans or building management systems.

What are the risks of not using a VFD for fan control?

Not using a VFD for fan control can lead to several risks, including inefficient operation, increased energy consumption, and higher maintenance costs. Fixed-speed fans may run at full speed unnecessarily, causing excessive motor wear and potentially damaging sensitive electrical equipment. Additionally, it may lead to poor indoor air quality due to inadequate ventilation controls.

How do VFDs affect the lifespan of motors?

VFDs can extend motor lifespan by reducing mechanical stress associated with constant-speed operation. They provide smoother acceleration and deceleration, which minimizes the risk of damage from sudden starts or stops. Moreover, using a VFD ensures the fan speed is optimized to the operational requirements, thereby extending the overall service life of the motor.

Are VFDs compatible with brushless AC motors?

Yes, VFDs are compatible with brushless AC motors. They can effectively control the speed and torque of brushless motors, enabling precise modulation tailored to operational needs. This compatibility makes VFDs a versatile choice for a wide range of applications, including marine and advanced industrial systems.

VFD for Pump Control: Benefits & Implementation - vfd manufacturers in China

Lucas — Mon, 17 Nov 2025 03:50:53 +0000

Variable Frequency Drives (VFDs) have a significant impact on how pumps are used across different industries. These ingenious gadgets combine energy conservation, precise control, and longer-lasting equipment, making them an advanced and integral feature of pump systems today. No matter whether you operate a water purification facility, run industrial applications, or handle HVAC, learning about VFDs’ advantages and their implementation will undoubtedly result in reduced operational costs and improved performance. In this article, we will examine how VFDs operate, the key benefits they offer in pump applications, and the practical steps for integrating them into your system. Find out that investing in VFD technology might be the change-maker that your operations have long been waiting for!

Benefits of VFDs in Pump Control Systems

Key Advantages at a Glance

⚡ Energy Efficiency: VFDs optimize motor speed in response to real-time demand, resulting in significant energy savings by using only the power required for the specified flow rate.
🔧 Extended Equipment Life: By gradually ramping up motor speeds during startup and reducing sudden stress, VFDs minimize wear and tear on pumps and motors, increasing their lifespan.
💰 Reduced Operating Costs: Lower energy consumption and improved maintenance intervals translate into reduced operational and maintenance costs over time.
🎯 Improved Process Control: VFDs provide precise control of pump speed, ensuring consistent, accurate performance that meets process requirements.
🌱 Lower Environmental Impact: By reducing energy use, VFDs help lower carbon emissions, contributing to more sustainable operations.

Energy Efficiency: Optimizing Energy Consumption

Energy efficiency has become an essential aspect of modern industrial and commercial activities, given the greater focus on sustainability and cost reduction. Variable Frequency Drives (VFDs) are leading players in reducing energy consumption by controlling motor output rather than running at full capacity throughout the process. Recent studies and reports show that the application of VFDs can reduce energy consumption in specific methods, such as HVAC systems, conveyor belts, and water pumping systems, by as much as 50%. This sizeable reduction results not only in lower utility costs but also in a smaller environmental impact.

📊 Industry Insight:

From a thorough analysis of the most recent search trends and data, it is clear that the manufacturing sector has consistently ranked Variable Frequency Drives technology among its top options for optimizing energy use. This developing situation supports the argument for integrating energy-efficient solutions into businesses’ operational workflows to achieve economic and environmental goals simultaneously and with less hassle.

Cost Savings: Reducing Operational Costs

An analysis of recent search engine data shows that companies are seeking ways to reduce operational costs while boosting efficiency. One of the most important solutions in this regard is the adoption of Variable Frequency Drive (VFD) technology, which appears frequently in search results. Not only do VFDs control motor speed, but they also improve energy efficiency, resulting in significant savings on electricity bills and maintenance costs for industries.

💡 Best Practices for Maximizing VFD Cost Savings:

Custom-made VFD solutions that perfectly match operational needs
Regular system audits to identify optimization opportunities
Staff training for efficient use and maintenance

All these actions not only lead to substantial cost savings but also support broader sustainability objectives.

Real-World Applications of VFDs in Pump Systems

Variable Frequency Drives (VFDs) have become an integral part of pump systems, enabling enhanced performance while reducing energy consumption. One of the most common applications is at water and wastewater treatment plants, where VFDs control pump speed in response to real-time demand, minimizing energy waste. In HVAC systems, VFDs are installed to effectively control water circulation through the pumps, enabling efficient heating and cooling. Furthermore, VFDs are of paramount importance in some industrial applications where precise flow control is crucial, such as chemical manufacturing. By modulating motor speeds to the required output level, VFDs not only improve operational efficiency but also increase equipment lifespan by reducing mechanical stress, the leading cause of failures.

Industries Utilizing VFDs for Pump Control

Industry Sector	VFD Applications & Benefits
Water & Wastewater Treatment	Controls flow and pressure of water systems to guarantee a constant supply and high operational efficiency.
Agriculture	Controls water pumps to deliver precise water amounts, reducing waste and conserving resources for better crop production.
Oil & Gas	Provides accurate pumping speed control for fluid transportation, handling, and drilling operations
Food & Beverage	Maintains consistent flow rates in production processes, improving quality control and operational precision

VFD Applications in HVAC and Oil & Gas

🏢 HVAC Industry

Primary Applications:

Fans
Pumps
Compressors

Key Benefits:

Regulates airflow and temperature with high accuracy
Reduces energy costs significantly
Prolongs equipment life through reduced wear and tear
Adjusts fan speeds based on real-time demand

⚙️ Oil & Gas Industry

Primary Applications:

Drilling operations
Pumping systems
Pipeline transportation of fluids

Key Benefits:

Enables operators to dictate motor speed per task needs
Improves process accuracy
Better resource management
Ensures environmental compliance while remaining economical

Cost-Effectiveness of VFDs

The use of Variable Frequency Drives (VFDs) offers an opportunity to reduce operational expenses, primarily through energy consumption optimization significantly. Essentially, VFDs use less power than required by the process, resulting in a direct reduction in energy costs reflected in utility bills. Further, VFDs’ ability to prolong equipment life by reducing maintenance costs through reduced wear and tear is highly beneficial to the industry. The cumulative effect of the factors above, i.e., energy-efficient solutions and lowered expenses, makes VFDs a cost-efficient option for industries that are environmentally friendly and thus need to be profitable.

Initial Investment vs. Long-Term Savings

💰 The Value Proposition

Variable frequency drives (VFDs) always spark a question: are the initial costs worth the long-term savings? The answer is YES – the long-term benefits of VFDs definitely outweigh the initial investment.

Energy Consumption Reduction: 30-50%

These reductions in costs will mean several thousand dollars a year, especially for operations that require a large amount of power.

Besides, maintenance costs are lower, and equipment life is longer, so there are no recurring expenses, making the company more cost-efficient.

ROI Analysis for VFD Implementation

A comprehensive assessment of the ROI of Variable Frequency Drives (VFDs) cannot be made without considering current data, which shows key trends strongly favouring their use. Recent studies have shown that various sectors using VFDs are achieving power savings of up to 50% in applications such as motors, which are among the industry’s main areas of energy consumption. Along with the already-lower maintenance costs, recent searches confirm that VFDs not only reduce operational costs but also improve system reliability and extend their lifespan.

Key ROI Factors:

Energy Savings: Up to 50% reduction in power consumption
Maintenance Costs: Significantly reduced through minimized wear and tear
System Reliability: Enhanced operational stability
Equipment Lifespan: Extended service life
Payback Period: Swift return on investment for priority operations

Energy Efficiency and Sustainability

Energy efficiency and sustainability are key factors that help reduce both environmental impact and operational costs. Industries can reduce energy use, cut down on the emission of harmful gases, and become compliant with regulations by making these initiatives a priority. The use of proven technologies, such as VFDs, enables firms to simultaneously optimize energy use, reduce waste, and improve overall sustainability. All these actions together will not only increase the business’s profits but also contribute to the long-term protection of the environment and the company’s responsibility to society.

Reducing Carbon Footprints with VFDs

🌍 Environmental Impact

Variable Frequency Drives (VFDs) are primary drivers of carbon footprint reduction across sectors by controlling motor speed and energy consumption. The transformation of the entire spectrum of operations to energy-efficient, waste-free practices is enabled by VFDs, which are widely used across the main areas of electrical power worldwide.

🔋 Energy Savings: Up to 40%

Businesses adopting VFDs can achieve remarkable energy savings, thereby significantly reducing their carbon footprint.

Advanced Features for Enhanced Efficiency:

Monitoring & Automation: New features enable predictive maintenance, resulting in less downtime and longer equipment life
Lower Operational Costs: Reduced energy consumption and maintenance needs
Global Compliance: Alignment with global sustainability objectives

Thus, VFDs become a vital part of eco-friendly industrial practices.

Emerging Technologies in VFD Design

VFD technology is on the rise and will significantly improve energy savings and automation. The most prominent step forward is the IoT (Internet of Things), which enables VFDs to collect real-time data and remotely monitor their performance. By adding AI and machine learning, VFDs can perform predictive diagnostics, foresee mechanical failures, and proactively optimize the system for maximum efficiency.

🌐 IoT Integration

Enables real-time data collection and remote performance monitoring

🤖 AI & Machine Learning

Performs predictive diagnostics, foresees mechanical failures, and proactively optimizes systems

⚡ Energy Harvesting

Enables energy recovery during motor braking, further reducing energy use

🔗 Advanced Protocols

New communication protocols (OPC UA, Ethernet/IP) allow seamless integration with industrial automation systems

🚀 Future Outlook:

These changes signal a drive toward more innovative, more eco-friendly VFDs that can support technological growth and the environment simultaneously.

Maintenance Tips for VFDs in Pump Systems

✅ Essential Maintenance Checklist

Regular Inspection: Conduct routine visual inspections to detect signs of wear, overheating, loose connections, or physical damage to the VFD and its associated components.
Cleanliness: Keep the VFD and its surroundings free from dust and debris. Use appropriate cleaning methods to prevent contaminants from affecting performance.
Check Cooling Systems: Ensure the cooling fans and vents are unobstructed and functioning correctly to avoid overheating. Replace or clean air filters regularly if applicable.
Monitor Voltage and Current: Periodically check input and output voltages and currents to ensure they are within the manufacturer’s recommended ranges.
Update Firmware: Keep the VFD’s firmware up to date, as newer versions often include performance improvements or fixes for known issues.
Verify Connections: Tighten electrical connections and inspect cables for wear or damage to prevent operational failures.
Test Protective Features: Regularly test safety functions, such as overvoltage, undervoltage, and overload protections, to ensure they are operating effectively.

Routine Inspection and Cleaning Practices

Routine inspection and cleaning are paramount for the Variable Frequency Drive (VFD) to work at its best and to last longer. Inspect the VFD’s outer part for dust and clean it regularly with a dry, lint-free cloth. Cooling fans can accumulate dirt and be blocked; proper airflow is necessary to avoid overheating. Make sure the VFD’s internal components are clean by gently blowing out dust with compressed air, but be careful not to damage the sensitive parts. Check the heat sink for dirt or grime, and clean it to maintain efficient temperature regulation.

⚠️ Important Warning:

Recent studies indicate that “cleaning practices neglect” can result in a loss of up to 20% in VFD efficiency over a given period. Thus, it is essential to maintain a consistent routine. Pairing thorough inspections with cleaning will reduce the likelihood of equipment failures and, therefore, extend its life.

Common Issues to Monitor

Common Issue	Cause	Impact
Overheating	Inadequate ventilation or dirt in the cooling system	Performance degradation, potential failure
Electrical Noise	Harmonic distortion	Disrupts the regular operation of connected devices
Voltage Unbalance	Power supply fluctuations	Negatively affects performance and lifespan
Poor Maintenance	Neglected routine inspections	The top reason for VFD failures causes significant downtime

💡 Prevention Strategy:

Promptly addressing these problems through preventive measures and staying up to date with best practices can significantly reduce the risk of costly downtime.

Importance of Firmware Updates

Firmware updates are necessary for maintaining the peak performance and reliability of variable frequency drives (VFDs). Staying up to date with the firmware not only adds features but also fixes bugs or eliminates security risks that may otherwise jeopardize the system. Continuous updates ensure that the VFDs remain compatible with the latest technologies and enhance overall stability, enabling efficient operations while minimizing the risk of unplanned failures.

Key Benefits of Regular Firmware Updates:

Addition of new features and capabilities
Bug fixes and performance improvements
Security vulnerability patches
Enhanced compatibility with the latest technologies
Improved overall system stability
Reduced risk of unexpected failures

Reference Sources

The following professional and authoritative reference sources provide in-depth insights into VFD technology and applications, supporting the accuracy and validity of the information presented in this article:

MDPI – Adaptive control strategy for a pumping system using a variable frequency drive
This paper discusses advanced control strategies for pumping systems using VFDs, including their implementation and benefits.
IEEE Xplore – The application of a 3500 HP variable frequency drive for pipeline pump control
This article explores the use of VFDs in large-scale pipeline pump control, focusing on operational efficiency and control mechanisms.
ScienceDirect – Efficiency enhancement in a PV-operated solar pump by effective design of VFD and tracking system
This research highlights the role of VFDs in enhancing the efficiency of solar-powered pumps, with a focus on adaptive control and design.
HAL Archives – Evaluation of a control system utilizing a pressure transmitter-based VFD in an urban water pump
This study evaluates the implementation of VFDs in urban water pump systems, with emphasis on energy efficiency and system performance.
Valin Online – What is a VFD?
A detailed technical document explaining the fundamentals of VFDs, their evolution, and their applications in various industries.

Frequently Asked Questions (FAQs)

❓ What is a VFD for Pump Control?

A VFD, or Variable Frequency Drive, is a type of motor controller that drives an electric motor by varying the frequency and voltage of the power supplied to the motor. This allows precise control of pump speed, enabling efficient operation across various pumping applications, including centrifugal and positive-displacement pumps.

❓ How does a Variable Speed Drive work in Pump Systems?

A Variable Speed Drive works by adjusting the frequency and voltage supplied to the motor, thereby controlling the motor speed. This process enables better management of pump performance and efficiency, especially in systems that require constant pressure or variable flow rates.

❓ What are the benefits of using VFDs for Pump Control?

Using VFDs for pump control offers several benefits, including energy savings, improved process control, reduced mechanical stress on pump components, and the ability to maintain constant pressure in systems. Additionally, VFDs can help in optimizing the performance of both centrifugal and positive displacement pumps.

❓ Can VFDs be used with different types of pumps?

Yes, VFDs can be effectively used with various types of pumps, including centrifugal pumps and positive displacement pumps. By adjusting motor speed via VFD control, these systems can optimize flow and pressure to meet the specific requirements of the application.

❓ What is the role of a Motor Controller in VFD Operation?

A motor controller in VFD operation regulates the power supplied to the electric motor. It controls the frequency and voltage to adjust the pump motor speed, enabling efficient, precise control of the pumping system.

❓ How does VFD Control affect energy consumption in Pumping Applications?

VFD control can significantly reduce energy consumption in pumping applications by enabling the pump to operate at variable speeds in response to demand. This minimizes energy waste compared to traditional systems, which often run pumps at a constant speed regardless of the required flow rate.

❓ What is the impact of VFDs on Pump Performance?

VFDs enhance pump performance by enabling smooth acceleration and deceleration of the pump motor, reducing wear and tear on components. They also allow for better control of flow rates and pressures, leading to improved overall efficiency and reliability of the pumping system.

❓ How do you set up a VFD for a Well Pump?

Setting up a VFD for a well pump involves selecting the appropriate VFD model based on the pump’s specifications, including voltage requirements (e.g., 230V) and the type of pump motor. It also requires programming the VFD to match the operating parameters, such as desired speed, torque control settings, and any automatic control features needed for efficient operation.

❓ What is the significance of Frequency and Voltage in VFDs?

The significance of frequency and voltage in VFDs lies in their direct impact on motor speed and performance. By varying the motor’s frequency, the pump speed can be adjusted, while voltage changes help maintain the necessary torque for efficient operation across varying loads.

VFD Power Rating & Sizing Guide: Select the Right Drive - vfd manufacturers in China

Lucas — Mon, 17 Nov 2025 02:37:47 +0000

The choice of Variable Frequency Drive (VFD) plays an important role when improving the performance of motor-driven systems. Proper sizing of the variable-speed drive is advantageous not only from an energy perspective but also because equipment runs efficiently and effectively. However, when you consider the many options and technicalities involved, it is easy to see why buyers find it difficult. This article aims to eliminate this hassle by guiding users to the different levels of the VFD Power Rating and Sizing Guide to maximise efficiency. This may be more practical when modernizing existing equipments or constructing contemporary equipment. Still, this article will be valuable as it helps you understand the differences in motor drives and choose the one that meets your expectations.

Understanding Key Terms in VFD Sizing

When sizing a Variable Frequency Drive (VFD), understanding key terms is vital for accurate selection and operation. Below are some essential terms to know:

•Motor Power Rating (HP or kW): This refers to the power required by the motor that the VFD will control. Ensure the VFD matches or exceeds the motor’s power rating.
•Voltage Rating: The VFD’s voltage must match the motor’s voltage requirements, typically categorized into low voltage (e.g., 230V or 480V) or medium voltage.
•Current Rating (Amps): The VFD must handle the full-load current (FLC) of the motor, considering any additional startup or load conditions.
•Overload Capacity: This is the VFD’s ability to handle temporary overloads, typically expressed as a percentage for a specific time (e.g., 150% for 1 minute).
•Duty Cycle: The operational pattern of the motor and VFD, such as continuous, intermittent, or variable loads, which impacts sizing requirements.
•Environmental Conditions: Consider factors like ambient temperature, altitude, and humidity, as they may affect VFD performance and require derating.

Full Load Amps (FLA) and Horsepower (HP)

The most crucial factors to consider when specifying VFDs are the motor’s Full Load Amps (FLA) and Horsepower (HP). The current drawn by the motor and the full load and rated voltage is the FLA, while the HP relates to the power output of the speed-dependent centrifugal electric motor. A VFD Power Rating and Sizing Guide, every available drive and motor current HP and FLA must be substituted.

If a particular VFD is being considered, it may be essential to examine the interrelationships among the provided values. When determining possible VFD sizes, the motor FLA is often a priority, as some motors with similar HP may require different currents depending only on design or efficiency. Power, service factor, and duty cycle are equally essential considerations for determining whether the selected VFDs can meet a given load’s requirements at different phases of operation.

Voltage and Service Factor

One of the best ways to assess reliability is to consider the service factor, which measures a motor’s ability to operate on a load beyond its rated load when certain conditions are met. Combine this with the correct voltages to ensure the motor can withstand momentary overloads without overheating or damaging itself. A service factor around or somewhat above the anticipated load is the best way to ensure technical efficiency and the longevity of plant equipment. Voltage stability is critical to prevent electrical inefficiency and equipment failures. By complying with these items regarding the application situation, we will achieve much better machinery uptime.

Why Proper VFD Sizing Matters

A suitable VFD size is required to ensure proper performance in terms of energy efficiency and machine protection. A sub-sized VFD will not provide sufficient power to meet motor and load requirements, leading to malfunctions such as underperformance, overheating, and excessive power consumption. Additionally, VFD size ensures machine stability, addressing voltage variations and the dynamic load requirements of the system. Oversizing, incorrect sizing, or overvoltage on a VFD can also damage the equipment, reducing operational life and increasing downtime costs. Properly sizing a VFD to site conditions can lead to greater reliability, lower energy costs, and reduced wear and tear on machinery.

Avoiding Equipment Failure and Overheating

To avoid equipment breakdown and heat buildup, regular maintenance checks have proven absolutely vital, given the limited ventilation space around the equipment. Various factors contribute to modifications, including accelerated heat buildup when dirt clogs equipment, when there is not enough coolant, or when there is not enough air to allow the equipment to breathe correctly. Develop a better-performing system by monitoring vibration levels, performing frequent cleaning, and operating within recommended temperature and load settings. Early detection and prevention of heating, enabled by real-time monitoring with temperature sensors and alarms, are of prime importance to prevent damage and costly downtime. Equipment can be effectively shielded against various failures through the proper selection of size and high-quality components, such as Variable Frequency Drives (VFDs), which manage energy consumption more effectively.

Ensuring Optimal Performance

Maintenance with a strong background in reasoning can ensure optimal performance in productive scenarios. The logic of predictive maintenance for any piece of equipment is built on data-based analyses that reveal patterns indicating when an asset is more likely to fail. The application of predictive maintenance in real time will minimize downtime, reduce repair costs, and improve efficiency. If search engine problem detection can be part of the company’s regular business, it could be considered a strength for truly optimising plant life and performance.

How to Calculate the Appropriate VFD Size

While out setting an appropriate size of Variable Frequency Drive for your application, consider following these guidelines:

Determine the Motor Specifications
Get essential information about the motor you will connect to the VFD: horsepower (HP), voltage, current rating at the specified voltage (FLA), and phase type (single- or three-phase). These could be listed on the motor’s data plate.
Match the VFD to the Motor’s Voltage and Amperage
Choose a VFD with a voltage supply capable of running the motor, and ensure that the current rating (amperage) matches the motor’s FLA or is higher for systems subject to regular shut-off. Also, make sure the VFD is compatible with the motor phase.
Include Application Requirements
Everything else you may decide to factor in: torque, peak loads, and working conditions (e.g., high altitude, operating temperatures, dust). Remember that these conditions will necessitate an increase in VFD capacity.
Account for Safety Margins
Select a VFD with 10-20% headroom above the motor’s FLA to ensure durability and operation under varying loads.
Consult VFD Manufacturer Guidelines
Refer to the VFD manufacturer’s recommendations on selecting a VFD based on the specific motor and operating applications to optimize operating compatibility.

Reading Motor Specifications from the Nameplate

A motor nameplate is a crucial tool in studying the requirements necessary for correct motor operation. It provides features such as RPM, horsepower, service factor, enclosure type, voltage, full-load amperage (FLA), frame type, and frame size. Therefore, based on the RPM information, one can determine the required speed match (and the pulley ratio on motor-driven devices, if required) where indicated, and then install the motor. The motor voltage specification on the nameplate provides information on the motor’s electrical supply requirements, while the FLA helps size circuit protection and select compatible VFDs. Then, too, the efficiency rating shows how efficiently the motor converts electrical energy into mechanical energy and provides the percentage of savings the user might achieve.

Accounting for Service Factor and Overload Conditions

An engineer must always consider additional capacity in sizing a system to account for service factor and overload conditions. Take, for instance, that motors with a service factor of >1.0 are deemed appropriate, and operations below their rated nameplate can be carried out for brief periods. Operating a VFD under this increased demand without tripping or overheating permits an additional safety margin for a marginally oversized VFD. This helps ensure compatibility even under fluctuating or unpredictable load conditions.

Factors Affecting VFD Sizing Decisions

Factor	Description
Motor Specifications	The motor’s voltage, current, and power ratings are crucial for sizing a Variable Frequency Drive (VFD). Ensuring compatibility between the motor and VFD prevents operational issues.
Load Type	Understanding whether the application involves a constant-torque load, such as a conveyor, or a variable-torque load, such as a fan or pump, is vital for selecting the right VFD.
Environmental Conditions	Factors such as temperature, humidity, and exposure to dust or chemicals can impact the durability and performance of the VFD. Choosing a VFD with appropriate protective measures is essential.
Overload Capacity	Different applications may require varying levels of overload protection. Proper sizing ensures the VFD can withstand momentary or continuous overload conditions without failing.
Supply Voltage	The input voltage at the installation site should match the VFD’s voltage rating to ensure efficient operation.
Control Requirements	The level of precision needed for speed, torque, or acceleration control influences the selection of the appropriate VFD model and features.

Load Type: Constant Torque vs. Variable Torque

Knowing the type of load that requires greater power—constant torque or variable torque—is necessary while selecting a VFD for an application. Constant-torque loads handled by conveyors, hoists, or positive-displacement pumps require that normal torque be delivered at variable speeds during operation. These loads are best served by a VFD that maintains stable power and precise control at any control position.

On the other hand, variable-torque loads, such as fans and centrifugal pumps, exhibit torque characteristics that change with speed. A fan, for instance, would require significantly higher torque at full speed than at lower speeds. As such, energy efficiency is of paramount importance. By custom-tweaking the VFD functions for variable loads while maintaining high control functionality, the variable-load torque is optimized, resulting in more efficient operation and lower energy bills.

Environmental Conditions: Altitude and Temperature

Indeed, altitude and temperature are significant factors in the performance and durability of Variable Frequency Drives (VFDs). Air density decreases with increasing altitude, thus reducing the cooling efficiency of VFDs. Thus, to sustain performance, the VFD’s power could be reduced, or the cooling mechanism could be carefully adjusted. Furthermore, drastic temperature fluctuations can affect the lifespan of electronic components mounted in the drive, ranging from low to high.

Motor Characteristics: Inverter-Duty Rating

It is a device specifically made to work with the flux in the VFD environments. In contrast, the intention of inverter-duty motors is usually to withstand the design stress they will experience due to instantaneous voltage imbalances and harmonics resulting from VFD operation. The principal points of inverter-duty motors include robust insulation systems that avert early failure, lower operating temperatures for better durability, and the ability to operate at different speeds without overheating.

Tips for Selecting the Right VFD

When selecting the right VFD, consider the following tips:

Match the VFD to Motor Specs

Ensure the VFD is compatible with the motor’s voltage, current, and horsepower ratings to prevent operational issues.

Evaluate Application Requirements

Determine the speed-control range, torque requirements, and operational environment to select a VFD suited to your specific application.

Prioritize Energy Efficiency

Look for VFDs with energy-saving features to reduce power consumption and lower operating costs.

Consider Environmental Factors

Select a VFD with an appropriate enclosure rating, such as NEMA or IP, to protect it against dust, moisture, and other environmental contaminants.

Check for Advanced Features

Features like overload protection, fault diagnostics, and communication capabilities can enhance the VFD’s performance and usability.

Understanding Your Application and Needs

When selecting a VFD for my application, I consider the specific needs of my system, including motor type, required loads, and operational targets. Identifying these will indeed help ensure that the VFD chosen is tailored to my particular needs: efficiency, reliability, and prime performance.

Planning for Future Scalability

It’s also important to consider changes in your system and advances in technology. A scalable VFD should be able to accommodate increasing load demands, future integration of automation systems, and enhanced energy efficiencies. Remote monitoring systems and IoT capabilities are increasingly in focus for enterprises. These very features help ensure that a VFD can be useful even when operating needs change. When choosing a VFD, selecting the option and connectivity that enhance expandability and ensure compliance with a few standards can help emulate future growth while maintaining optimal efficiency.

Reference Sources

Here are five professional and authoritative sources related to “VFD Power Rating and Sizing Guide” that you can use to verify the correctness of your article:

Yale Facilities – Variable Frequency Drives
This document provides detailed design standards for VFDs, including short circuit ratings and assembly requirements.
NJ Green Building Manual – EC Variable Frequency Drives
This source discusses the costs and energy savings associated with VFDs, categorized by horsepower ratings.
Utah State University Extension – Variable Frequency Drives for Irrigation Pumps
This article explains how VFDs are marketed and sized, focusing on amperage and other key considerations.
University of Wisconsin – Fundamentals of VFDs and Refrigeration Applications
This resource provides an overview of VFDs, their functionality, and applications in refrigeration.
Variable Frequency Drives For Dummies
A comprehensive guide explaining how VFDs work, including their conversion of AC power and motor speed control.

Frequently Asked Questions (FAQs)

What is the significance of VFD power rating in motor control?

When selecting the right variable-frequency drive, consider factors such as the motor type (induction or AC induction), the required voltage and frequency, the application (constant- or variable-torque), and the environment where the VFD will operate. These factors will influence the VFD’s sizing and ratings.

Why is it essential to avoid an undersized VFD?

An undersized VFD may not deliver sufficient output power, leading to motor performance issues such as overheating or stalling. Moreover, it could draw more current than the VFD can handle, risking damage to both the VFD and the motor. Always ensure the VFD is appropriately sized according to the motor specifications.

What is the difference between constant torque and variable torque applications?

Constant-torque applications require the same torque at all speeds, making them suitable for applications such as conveyors and mixers. In contrast, variable-torque applications, such as fans and pumps, require torque to decrease with increasing speed. Understanding this difference aids in proper VFD selection and sizing.

Can I use a larger VFD than necessary?

Yes, using a larger VFD than necessary can provide additional headroom for future expansion and improve efficiency. However, excessively oversized VFDs may not operate optimally, leading to inefficiencies. It’s essential to find a balance when sizing the VFD.

How does VFD programming affect motor performance?

VFD programming plays a significant role in motor performance as it allows for adjustments to voltage, frequency, and acceleration rates. Properly programmed VFDs can enhance efficiency, reduce energy consumption, and protect the motor from potential damage during operation.

What are the typical applications for VFDs?

Typical applications for VFDs include HVAC systems, conveyor systems, pumps, fans, and various industrial machinery. These applications benefit from the VFD’s ability to control motor speed and torque, leading to improved energy efficiency and enhanced operational control.

How do I determine the amp rating for my three-phase motor?

The amp rating for a three-phase motor can be determined using the formula: Amps = (HP × 746) / (Voltage × √3 × Efficiency). This calculation helps in selecting a VFD that matches the motor’s power requirements and ensures optimal performance without risking damage.

Lucas – Shandong Electric - vfd manufacturers in China

Single Phase VFD: A Complete Guide to Motor Control and Phase Conversion - vfd manufacturers in China

What Is a Single Phase VFD?

Why You Can’t Use a Standard VFD on a Single-Phase Motor

How a Single Phase to Three Phase VFD Works

Sizing and Selecting a Single Phase VFD

Installation Best Practices

Applications and Industries

Energy Savings and Cost Analysis

Troubleshooting Common Issues

Conclusion

VFD Duty Cycles: Continuous, Intermittent & Periodic - vfd manufacturers in China

What Are VFD Duty Cycles?

! Breaking Down VFD Duty Cycles

Classifications of Duty Cycles: S1 to S8

S1 (Continuous Duty)

S2 (Short-Time Duty)

S3 (Intermittent Periodic Duty)

S4 (Intermittent with Starting)

S5 (Intermittent Periodic Duty with Electric Braking)

S6 (Continuous Duty with Cyclic Load)

S7 (Continuous Duty with Electric Braking)

S8 (Continuous Duty with Load Variations)

Motor Operation Phases: Starting, Running, Braking, and Resting

Importance of VFD Duty Cycles in Various Industries

🔑 Key Benefits

Why VFD Duty Cycles Matter for Motor Efficiency

📊 Energy Savings Potential

Critical Industries Utilizing VFDs

🏭 Manufacturing

❄️ HVAC Industry

💧 Water Treatment

🛢️ Oil and Gas

Impact on Operational Costs and Sustainability

Technical Aspects of VFD Duty Cycles

Key Considerations

Load Type

Operating Conditions

Overload Capacity

Cycle Duration

The Science Behind VFD Duty Cycles

⚠️ Warning: Improper Duty Cycles

Motor Performance: Torque, Speed, and Heat Dissipation

Best Practices for Heat Dissipation

Inverter Duty vs. Standard Motors

Common Applications of VFD Duty Cycles

💧 Pumps

🌀 Fans and Blowers

📦 Conveyors

🔧 Compressors

🏗️ Cranes and Hoists

Real-World Applications of VFDs in Industry

Industry-Specific Applications

🛢️ Oil and Gas Industry

💧 Water Treatment Plants

🏭 Manufacturing Sector

Controlling Conveyor Belts in Manufacturing

✨ Advantages in Manufacturing

Energy Efficiency Enhancements in HVAC Systems

Smart Thermostats

Variable-Speed Compressors

Demand-Controlled Ventilation

🌍 Environmental Benefits

Future Trends and Predictions

The Future of VFD Duty Cycles and Technology

🌱 Green Technology Integration

Emerging Trends: Precision Control and IoT Integration

📡 IoT-Powered VFDs

💰 Cost Reduction

AI-Driven VFD Systems and Dynamic Duty Cycle Optimization

🤖 AI-Driven Energy Savings

Reference Sources

1. IEEE Xplore

2. ResearchGate

3. KTU Electrical, Electronics, and Energy Journal

4. Google Books

5. IEEE Xplore

Frequently Asked Questions (FAQs)

❓ What does “vfd duty cycles” mean, and why is the duty cycle important?

❓ How do I read the motor nameplate to determine allowed duty cycles?

!
Breaking Down VFD Duty Cycles

1
Electromagnetic Interference (EMI)

2
Harmonics

3
Improper Motor Matching

4
Loose Components

5
Bearing Currents
