The majority of online wiring guides show a three-phase input diagram; that is okay if you have three-phase power. For single-phase input VFD, however, they do not really tell you what to do with the T terminal. Single-phase VFD wiring has different current path, different terminal assignment, and differences in safety considerations as compared to the standard three-phase installation.

For single-phase VFD wiring, every terminal, wire, and connection process is navigable here, and you can learn how to size your wires, where each wire lands on the terminal block, how to otherwise properly ground and shield it, what parameters should subsequently be made ready. We even include a printable pre-power checklist for use in checking every wire, connection, and terminal before initial energization. Whether you are wiring a precision lathe in a shop or a pump at some remote facility, this guide will ensure you never have to repeat your work.

Key Takeaways

• Single-phase input power connects to terminals R and S only. Terminal T is left open or jumpered per the manufacturer manual.
• Motor output always connects to U, V, W in any order. Swap any two leads to reverse rotation.
• Use shielded cable for motor output with the shield terminated at the drive end only to prevent ground loops.
• Size input fuses or breakers at 1.5–2.0x the drive’s input current for semiconductor protection.
• Approximately 30% of VFD warranty returns are due to incorrect wiring or grounding, not product defects.

For a deeper dive on single-phase input configurations, see our guide to single phase vfd guide

Understand Your VFD Terminal Block Before You Start

Before you strip a single wire, study the terminal block layout on your drive. Every VFD has three distinct terminal zones: power input, power output, and control. Mixing these up is the fastest way to destroy a drive.

Power Input Terminals: R, S, T

R, S, and T terminals are all line inputs. In a standard three-phase VFD, all three terminals are energized. In a single-phase input VFD, only R and S are energized. Terminal T is either left open or installed with an internal link, depending on the manufacturer design. Always refer to the drive manual for the certified single-phase input configuration. Do not assume T is the same as R and S.

With single-phase supply, the input current becomes almost exactly twice that for the same power motor on a three-phase supply. That is why the conductors feeding R and S must be sized according to the single-phase current at the higher level and not the three-phase current that is inscribed on the motor nameplate.

Motor Output Terminals: U, V, W

Terminals U, V, and W deliver variable-frequency, three-phase power to the motor, even though it runs on single-phase power. Inside is the VFD’s second stage. This actually generates three-phase output phases.

It does not matter if U is selected for either W or V during operation of the motor. Whichever way, the motor will run hard. If it does not rotate in the proper direction, debark power and consequently exchange two of the three among the motor leads. Never try to interchange the power lead with a motor connection lead.

DC Bus and Brake Terminals: +, -, BR

The DC bus terminals (+ and -) carry high-voltage DC internally. Some drives expose these for external brake resistor connection. If your application needs fast deceleration of a high-inertia load, you will connect a braking resistor across the + and BR terminals (not + and -). Refer to your manual. Not all drives have a separate BR terminal.

Control Terminals: COM, FWD, REV, VREF, AI1

The control terminal block is where you wire start/stop commands, speed references, and status outputs. These terminals carry low-voltage signals, typically 0–10V or 24V DC. They must be kept separate from power wiring. Running control wires in the same cable tray as power conductors invites EMI interference and erratic drive behavior.

Common control terminal functions include:

• COM: Common reference for digital inputs
• FWD: Forward run command (close to COM to start)
• REV: Reverse run command (close to COM to reverse)
• VREF: 10V DC reference output for potentiometer power
• AI1: Analog input for 0–10V speed reference signal
• AO1: Analog output for motor current or frequency monitoring
• TA/TB/TC: Relay output for run status or fault indication

Tools and Materials You Will Need

Gather the right tools before you open the enclosure. A well-prepared installation takes half the time of one done piecemeal.

Wire and Cable

Use copper conductors rated for 75°C minimum. For the input power (R, S), size the wire for the drive’s rated input current at single-phase voltage. For the motor output (U, V, W), size the wire for the motor’s Full Load Amps (FLA). NEC Article 430 recommends branch circuit conductors sized at 125% of motor FLA.

A quick-reference wire gauge table for common single-phase input VFDs:

Always verify against your specific drive manual and local electrical code. The table above is a starting reference, not a substitute for engineering calculation.

Input Protection

Size the input fuse or circuit breaker at 1.5 to 2.0 times the drive’s rated input current. Use semiconductor fuses (not standard motor fuses) for proper arc suppression if the drive suffers an internal fault. A disconnect switch rated for motor duty must be installed within sight of the motor per IEC 60204.

Shielded Motor Cable

The cable from the VFD output (U, V, W) to the motor must be shielded to contain high-frequency switching noise. Use a three-conductor plus ground shielded cable. The shield is terminated at the drive end only, using the drive’s designated ground clamp or PE terminal. Do not connect the shield at the motor end. Grounding both ends creates a ground loop and defeats the purpose of the shield.

Step 1: Wire the Single-Phase Input Power

This is where most mistakes happen. Take your time. Double-check every terminal before you tighten a screw.

Connecting L1 and L2 to R and S

Run your single-phase supply conductors to terminals R and S. Tighten the terminal screws firmly. A loose connection creates heat, arcing, and eventually a fire hazard. Most VFD terminal blocks accept ferruled wire ends. If your drive specifies ferrules, use them. They prevent strand spreading and improve contact reliability.

What About Terminal T?

On a single-phase input VFD, terminal T is not used for power. Some drives leave T as an open terminal. Others require an internal jumper between T and one of the other phases for the internal rectifier to balance. Read your manual. If it says to leave T open, leave it open. If it says to install a jumper, install the jumper. Guessing here is not an option.

When Ken, a maintenance technician at a textile mill in Indonesia, installed his first single-phase input VFD, he assumed T was just like R and S. He connected his 220V line to R, S, and T. The drive faulted on overvoltage within seconds and the input rectifier was damaged. The repair cost exceeded the price of the drive. The manual, which he had not opened, clearly stated: “For single-phase input, connect L1 to R and L2 to S. Leave T unconnected.”

Input Fuse or Breaker Sizing

Install a disconnect and overcurrent protection upstream of the drive. Size the protection at 1.5–2.0 times the drive’s input current rating. For example, a 2.2 kW single-phase input VFD with a 20 A input rating needs a 32–40 A breaker or fuse. This protects the supply conductors and the drive’s rectifier stage without nuisance tripping during startup.

Step 2: Wire the Three-Phase Motor Output

The output side is simpler than the input, but shielding and grounding deserve careful attention.

Connecting Motor Leads to U, V, W

Run your shielded motor cable from terminals U, V, W to the motor’s T-leads. Match the wire gauge to the motor FLA. Tighten terminals securely. There is no required phase sequence. The motor will run correctly with any permutation of U, V, W.

Reversing Motor Rotation

If the motor runs in the wrong direction, power down completely and wait for the DC bus capacitors to discharge (typically 5–10 minutes). Then swap any two of the three motor leads at the VFD output terminals. For example, exchange the wires on U and V. Power back on and verify direction.

Shield Termination

Strip back the cable jacket at the drive end to expose the shield braid or drain wire. Connect the shield to the drive’s PE (protective earth) terminal or the designated shield clamp. Do not connect the shield to the motor frame at the far end. Single-ended shield termination routes EMI currents back to the drive chassis, where they belong, instead of circulating through your ground system.

Proper shielded cable grounding can reduce conducted EMI by 20–40 dB. For single-phase input VFDs, this matters even more than for three-phase drives because the input current waveform contains more harmonic content, which increases radiated noise.

Need help selecting the right shielded motor cable for your VFD installation? Explore our low voltage VFD solutions with application-specific cable recommendations.

Step 3: Wire the Control Circuit

Control wiring is low voltage, but it is also low tolerance for noise. A 0.5V spike on a 10V speed reference signal is a 5% speed error. Route control wires separately from power conductors.

Start/Stop Wiring

The simplest start/stop circuit uses a normally-open pushbutton between the FWD terminal and COM. Pressing the button closes the circuit and starts the motor in forward direction. Releasing the button opens the circuit and stops the motor (coast to stop). For a latching start circuit, program the drive for two-wire control and wire a maintained contact or auxiliary relay.

Potentiometer Speed Control

To control speed with a manual potentiometer, connect the pot across VREF (10V), AI1 (wiper), and COM (0V). As you turn the pot, the voltage at AI1 varies from 0 to 10V DC, which the drive maps to 0–100% of maximum frequency. Use a shielded cable for the potentiometer leads, with the shield grounded at the drive end.

Digital Multi-Speed Wiring

Many drives support multi-speed presets selected by digital inputs. Wire additional switches or relay contacts from terminal S1, S2, S3 (or equivalent) to COM. Program the drive parameters to assign speed values to each input combination. This is useful for machines that need only a few fixed speeds, such as fans or mixers.

External Fault and Relay Outputs

The relay output terminals (typically labeled TA, TB, TC) can signal a remote PLC or indicator lamp when the drive is running or when a fault occurs. These contacts are isolated and can switch low-voltage DC or AC loads up to their rated current. Do not use them to switch motor power directly.

Step 4: Grounding and Shielding

Grounding is not optional. It is the foundation of safe VFD operation and reliable EMI performance.

VFD Chassis Ground

Connect the drive’s PE terminal to the panel’s main ground bus with a dedicated green/yellow conductor sized to match the input power conductors. Do not daisy-chain grounds from one device to another. Each device needs its own direct path to the ground bus.

Motor Frame Ground

Run a separate ground conductor from the motor’s ground terminal back to the VFD’s PE terminal, not to a local building ground. This keeps the motor frame at the same potential as the drive chassis and prevents circulating currents. The motor ground conductor should be the same size as the motor power conductors.

Why Single-Phase VFDs Need Better EMC Practice

Single-phase input VFDs draw pulsating DC current from the supply, which creates more harmonic content than balanced three-phase input. This increases both conducted and radiated emissions. Proper shielding, single-point shield termination, and segregated control wiring are essential for clean operation. If you experience erratic behavior, chattering contactors, or PLC faults near the drive, poor EMC practice is the most likely cause.

Step 5: Optional Brake Resistor Wiring

Not every application needs a brake resistor. But if you are decelerating a high-inertia load, such as a large flywheel or centrifugal fan, the motor acts as a generator during slowdown and pumps energy back into the drive’s DC bus. Without a place to dissipate that energy, the bus voltage rises and the drive faults.

When to Add a Brake Resistor

Add a brake resistor when:

• The load inertia is more than 10 times the motor inertia
• Deceleration time is short (less than 5 seconds for large loads)
• The application requires precise stopping position
• The drive faults on overvoltage during deceleration

Connecting the Resistor

Most drives with braking capability have a + terminal (positive DC bus) and a BR or P/+ terminal for the resistor. Connect the resistor across these two terminals. The resistor gets hot during braking. Mount it outside the drive enclosure or in a well-ventilated area. Size the resistor wire for the duty cycle and peak current specified in the drive manual.

Pre-Power Safety Checklist

Do not power on until every item below is verified. This checklist takes two minutes and can save you from a destroyed drive.

•  Input voltage matches VFD nameplate rating (220V single-phase)
•  R and S are wired to L1 and L2; T is verified open or jumpered per manual
•  U, V, W are wired to the motor T-leads (not to input power)
•  Motor ground conductor is bonded to VFD PE terminal
•  Drive chassis is bonded to panel ground bus
•  No stray wire strands are visible at any terminal
•  All terminal screws are tight (torque to spec if available)
•  Control wiring is routed separately from power wiring
•  Shielded motor cable shield is terminated at drive end only
•  Input fuse or breaker is properly sized (1.5–2.0x input current)
•  Brake resistor polarity is correct (if used)
•  Manual disconnect is visible and accessible

Print this checklist and tape it inside the enclosure door. Use it every time.

Step 6: Commissioning After Wiring

Wiring is only half the job. The drive will not run correctly until you tell it what motor is connected.

Set Motor Nameplate Parameters

Enter the following from the motor nameplate into the drive’s parameter menu:

• Rated motor voltage (V)
• Rated motor frequency (Hz)
• Rated motor current (A)
• Rated motor speed (RPM)
• Number of motor poles (if required)

These parameters tell the drive’s control algorithm what the motor expects. Incorrect motor parameters cause poor torque, overheating, or current imbalance.

Set Acceleration and Deceleration Times

Start conservative. Set acceleration to 5–10 seconds and deceleration to 5–10 seconds for a standard load. For high-inertia loads, extend deceleration or enable the brake resistor. Aggressive ramp times trip the drive on overcurrent or overvoltage.

Select Control Mode

For general-purpose applications, V/F control is sufficient and easy to set up. For applications requiring high torque at low speed, such as lathes or hoists, select sensorless vector control (SVC). Vector control requires an auto-tuning sequence. Run the auto-tune routine after all motor parameters are entered.

Test Run

Before loading the machine, run a no-load test:

1. Set maximum frequency to 30 Hz for the first run.
2. Start the motor and verify smooth rotation.
3. Check motor current with a clamp meter. It should be low (typically 20–40% of FLA at no load).
4. Listen for abnormal noise or vibration.
5. Gradually increase to 50 Hz and verify stable operation.
6. Verify that stop commands produce a smooth coast-down.

If everything checks out, increase the maximum frequency to your operating setpoint and load the machine.

Common Wiring Mistakes That Destroy Drives

Even experienced electricians make these errors. Learn from others so you do not repeat them.

Connecting input power to U, V, W
This is the most expensive mistake. The output stage (IGBT inverter) is not designed to accept line power. The rectifier is on the input side. Reversing input and output destroys the inverter instantly.

Forgetting to handle terminal T on single-phase input
On some drives, T must be jumpered internally for single-phase operation. On others, it must remain open. Guessing wrong causes unbalanced rectifier current and premature failure.

Undersized input protection
A breaker sized for the motor FLA will nuisance-trip on drive inrush current. Size for 1.5–2.0x the drive input current instead.

Motor ground not bonded back to VFD
Grounding the motor to a local building ground instead of the drive’s PE terminal creates a potential difference. Circulating ground currents cause bearing damage and EMI problems.

Shield grounded at both ends
Grounding the motor cable shield at both the drive and the motor creates a ground loop. The shield becomes an antenna instead of a shield. Noise increases instead of decreasing.

Wiring Diagram Reference

While actual diagrams depend on your specific drive model, the general topology for single-phase VFD wiring is consistent across manufacturers.

Basic Single-Phase Input, Three-Phase Output

L1 (220V) -----> R (VFD Input)
L2 (220V) -----> S (VFD Input)
 T (Open or jumpered per manual)
 U (VFD Output) -----> Motor T1
 V (VFD Output) -----> Motor T2
 W (VFD Output) -----> Motor T3
PE (Ground) ---> VFD Chassis -----> Motor Frame

Control Wiring (Start/Stop + Potentiometer)

FWD -----> [NO Start Button] -----> COM
REV -----> [NO Reverse Button] -> COM
VREF ----> Potentiometer Terminal 1
AI1 -----> Potentiometer Wiper
COM -----> Potentiometer Terminal 2

Always refer to your drive’s manual for exact terminal designations and jumper settings. The diagrams above are illustrative, not universal.

Frequently Asked Questions

How do you wire a single phase VFD?
Connect your 220V single-phase input to terminals R and S. Leave T open or jumpered per the manual. Connect the motor to U, V, W. Bond the drive chassis and motor frame to a common ground. Run control wiring separately from power wiring. Set motor parameters before the first test run.

What is R S T on a VFD?
R, S, and T are the line input terminals. On three-phase input, all three carry power. On single-phase input, only R and S are used. T is either left open or internally jumpered depending on the drive design.

What is U V W on a VFD?
U, V, and W are the motor output terminals. They deliver variable-frequency three-phase power to the motor. The phase sequence does not matter. Swap any two leads to reverse rotation.

What size wire for VFD installation?
Size input wires (R, S) for the drive’s rated single-phase input current. Size output wires (U, V, W) for the motor’s Full Load Amps. NEC recommends 125% of motor FLA for branch circuit conductors. Refer to the wire gauge table in this guide for common ratings.

Do I need a line reactor for single phase VFD?
A line reactor is recommended when the supply transformer is more than 10 times the VFD kVA, when voltage is unstable, or when multiple drives share a bus. For a single small drive with stable supply, it is optional but beneficial for harmonic reduction.

How do you ground a VFD properly?
Bond the drive chassis PE terminal directly to the panel ground bus. Run a separate ground conductor from the motor frame back to the drive PE terminal. Terminate the motor cable shield at the drive end only. Do not daisy-chain grounds.

Conclusion

Single phase VFD wiring is not complicated, but it is specific. Respect the terminal assignments. Size your wires for single-phase input current, not motor FLA. Ground everything to a common point. Keep control wiring away from power conductors. Use the pre-power checklist before every first start.

Get the wiring right, and your drive will start cleanly, run quietly, and last for years. Get it wrong, and you join the 30% of warranty returns that were never a product defect.

At Shandong Electric, we supply more than variable frequency drives. We provide wiring guidance, parameter setup support, and commissioning assistance to make sure your installation succeeds from day one. If you are planning a single-phase VFD installation and need application-specific advice, contact our engineering team. We will help you wire it right, the first time.

Need a VFD with clear terminal markings and included wiring instructions? Browse our single-phase input VFDs designed for workshop and light industrial applications.

VFDs are better known for reducing energy consumption and improving process control. But what many do not realize is that the main reason for new drive installations to be delayed is the size selection. An oversized VFD waste capital and deteriorates motor insulation over time. An overly small one trips on the overcurrent, overheats, or simply will not engage the load.

In this guide, follows a 5-step procedure which you can follow to choose the motor drive consistently. We will acquaint you with the nomenclature on a motor nameplate, how to determine load types, take cognizance of de-rating factors,deliver correct connection methods，and How to Size a VFD for Motor Epoch-making numbers have been provided for each step which must be put into use. This sizing guide can be seen used in choosing the right drive size for a production line or even in the case of a single-engine modification.

Key Takeaways

• Match VFD output current to motor Full Load Amps (FLA), not just horsepower.
• Load type (constant torque, variable torque, constant horsepower) determines the required drive capacity and overload rating.
• Single-phase input typically requires 2× current derating on the input side when using a three-phase VFD.
• Altitude above 1,000 meters and temperatures above 40°C both reduce VFD output current capacity.
• A drive oversized by one frame size can cost 15–30% more with no operational benefit.

What VFD Sizing Really Means (and Why Horsepower Matching Falls Short)

The main aim of designing a VFD layout between engine and load is to identify an efficient driver that makes sure that the current in the load exerts the operational parameters under the demands of the motor. The horsepower pertains to the mechanical output rating while it is the current that the drive actually provides to drive it.

Wherever the load characteristics, starting torque, or environmental conditions deviate from normal, the horsepower matching fails.

Most VFD manufacturers rate their drives in kilowatts and amps. The kW-rated one takes for granted standard, continuous-duty, three-phase operation at rated voltage and frequency.

Very few actual installations can strictly manage to satisfy all these assumptions. A 7.5 kW motor turning a high-inertia conveyor may draw much higher current during acceleration than a 7.5 kW motor turning a centrifugal pump. Again, the conveyor application, if sized by kW alone, will actually trip-fault.

Input Current vs. Output Current: What the Nameplate Hides

The motor nameplate Full Load Amps (FLA) under the motor’s rated voltage and frequency. The VFD nameplate interprets both input current and output current. Concerning motor compatibility, it is characterized by output current that matters the most. Input current, on the other hand, varies with your incoming supply voltage, power factor, and harmonics.

The current of the input and output of a three-phase system is commonly near identical. The story changes the moment you switch to a single phase. That is, to some extent, a three-phase input VFD running on a single phase will take practically twice the input current per phase to deliver the same output power.

This is the reason for the 2× derating rule. Ignoring input current on single-phase supply generally paves the way for undersized conductors, fuses, and sometimes the drive apparatus itself.

Reading the Motor Nameplate

Before you select any drive, record these values from the motor nameplate:

• Rated power (kW or HP)
• Rated voltage (V)
• Rated frequency (Hz)
• Full Load Amps (FLA)
• Service factor (typically 1.0 or 1.15)
• Insulation class (B, F, or H)
• IP rating or enclosure type

The FLA and service factor are the two most critical numbers for VFD sizing. Everything else determines compatibility, but current determines capacity.

Step 1, Identify Your Load Type Before You Size Anything

Load type needs to be determined first while selecting an electric motor drive system. It determines how torque demand varies with speed, affecting how much current the motor draws at a given time and thus what overload capacity the VFD needs. There are three fundamental loading types in industrial applications.

Constant Torque Loads

Constant-torque loads are those which demand same amount of torque, regardless of the speed. Increase in speed results in increased power consumption in linear proportions. Examples of these are conveyors, cranes, crushers, running at a constant speed and positive displacement pumps.

These are a demanding applications for a VFD, as they require the highest amount of continuous power. At low speeds, the motor needs maximum torque, requiring maximum current still. The drive has to be properly sized to provide this amount of current continuously.

Many constant-torque applications further require high starting torque. Depending upon the load, the full torque cannot be less than 150% of the motor’s torque rating to get the conveyor moving. In some cases, select a drive with an overload capacity larger than the motor’s.

Variable Torque Loads

Variable torque loads require torque that changes with the square of speed, and power that changes with the cube of speed. Centrifugal pumps, fans, and blowers are the classic examples. At half speed, these loads need only 25% of rated torque and 12.5% of rated power.

This is why VFDs deliver such dramatic energy savings in pump and fan applications. According to the U. S. Department of Energy, VFDs can reduce energy consumption by 20–50% in these applications.

For VFD sizing, variable torque loads are forgiving. You can typically size the drive to match the motor’s base current without additional overhead, provided the starting torque requirement is modest.

Constant Horsepower Loads

Constant horsepower loads require torque that decreases as speed increases, keeping mechanical power roughly constant. Lathes, winders, and some machine tools fall into this category. At low speed, these loads need very high torque.

VFD sizing for constant horsepower loads demands careful attention to the base speed and field-weakening range. The drive must deliver high current at low frequencies, which tests both the drive’s overload capacity and the motor’s cooling capability. If the motor relies on a shaft-mounted fan, low-speed operation can cause overheating unless auxiliary cooling is added.

Load Type Comparison at a Glance

Step 2, Match Current, Not Just Horsepower

Once you know your load type, the next step in any VFD sizing guide is current matching. The VFD’s rated output current must equal or exceed the motor’s FLA under the most demanding operating condition.

Not the average. Not the typical. The worst-case continuous demand.

How to Read Motor FLA Correctly

Motor FLA is stamped on the nameplate and represents the current the motor draws at rated voltage, frequency, and load. If your motor has a service factor of 1.15, it can safely operate at 115% of rated load continuously. That means the actual maximum continuous current could be up to 15% higher than the nameplate FLA.

For conservative motor drive selection, size the VFD to handle at least 115% of motor FLA. This gives you headroom for voltage fluctuations, minor overloads, and measurement tolerance. If the motor service factor is 1.0, you can size closer to nameplate FLA, but a 10% margin is still good engineering practice.

The 1.15 Service Factor Rule

Many industrial motors carry a 1.15 service factor. This is not a bonus for oversized drives. It is a safety margin built into the motor for temporary overloads.

When pairing a VFD, you have two choices. First, size the VFD for the motor’s base FLA and rely on the VFD’s overload protection to limit current to 100% during normal operation. Second, size the VFD for 115% of FLA and allow the system to use the full service factor continuously.

Option 2 is generally preferred for industrial applications where load variations are normal. It prevents nuisance tripping and extends drive life by reducing thermal stress.

When Marcus, a maintenance engineer at a packaging plant in Shenzhen, installed a 5.5 kW VFD on a conveyor motor, he matched horsepower one-to-one and ignored the 1.15 service factor. Two weeks later, the drive began tripping on overcurrent during morning startup when the conveyor was fully loaded.

After upgrading to a drive rated for the motor’s service factor current and enabling torque boost, the system started reliably every time. The upgrade cost 12% more upfront. It eliminated an hour of downtime every week.

When to Size by Current Instead of kW or HP

There are several situations where current, not power, must drive your VFD selection:

• High-starting-torque applications: The motor draws 150–200% FLA during acceleration. The VFD must support this overload without faulting.
• Single-phase input: The input current requirement is higher than the output current, so input protection and wiring must be sized accordingly.
• Low-speed operation: At low frequencies, motor cooling is reduced, but torque demand may remain high. The drive must supply full current without overheating.
• High ambient temperatures: Drive output current must be derated, so a higher-current model may be needed to deliver the same effective power.

Step 3, Apply Application-Specific Adjustments

After matching current, apply adjustments for the specific demands of your application. These adjustments separate a drive that works on paper from one that works in the field.

High-Starting-Torque Derating

Some loads need more torque to start than to run. Crushers, ball mills, and loaded conveyors are notorious for this. Standard VFDs are rated for 110% overload for 60 seconds. High-torque applications may need 150% overload for 60 seconds, or 200% for a shorter burst.

If your application needs more starting torque than the standard overload class provides, you have three options:

1. Select a drive with a higher overload capacity (Heavy Duty rating vs. Normal Duty).
2. Oversize the drive by one current frame to gain torque headroom.
3. Enable torque boost or sensorless vector control to improve low-speed torque output.

Single-Phase Input Derating

A common and practical question in VFD selection is how to run a three-phase motor from a single-phase supply. The standard approach is to use a three-phase input VFD and connect it to a single-phase source, then derate appropriately.

The rule of thumb is simple but critical: derate the VFD by 50%. A 7.5 kW three-phase input VFD fed by single-phase power can reliably drive a motor up to approximately 3.7–4 kW. This is because the single-phase supply must deliver all input power through two lines instead of three, effectively doubling the current per conductor. The drive’s internal rectifier and DC bus must also handle higher ripple current.

For a deeper dive on single-phase input configurations, see our guide to single phase vfd guide

Heavy Inertia and Rapid Acceleration

Loads with high inertia, large flywheels, centrifuges, or heavy rotating masses, require longer acceleration times. If you demand rapid acceleration, the VFD must deliver high torque for an extended period. This increases the effective thermal load on the drive.

The solution is usually to extend the acceleration ramp time in the VFD parameters. If process constraints prevent this, you will need a larger drive or an external braking resistor to dissipate regenerated energy during deceleration.

Step 4, Account for Environmental Derating

A VFD rated for 7.5 kW at 25°C and sea level is not a 7.5 kW drive at 45°C and 2,000 meters altitude. Environmental conditions reduce output capacity.

Ignoring this reality is a fast path to premature drive failure.

Temperature Derating Thresholds

Most low-voltage VFDs are rated for full output current up to 40°C ambient. Above this threshold, output current typically derates by 2–3% per degree Celsius. At 50°C, a drive may deliver only 80% of its rated current. If your equipment room or enclosure runs hot, either improve ventilation or size up.

Water-cooled VFDs handle higher temperatures more gracefully, which is why they are preferred in confined spaces and hot climates. Shandong Electric’s water-cooled low voltage VFD solutions maintain stable output up to 45°C without forced-air ventilation.

Altitude Derating Above 1,000 Meters

Air density decreases with altitude, which reduces the cooling effectiveness of forced-air VFDs. The standard derating rule is 1% current reduction for every 100 meters above 1,000 meters. At 2,000 meters, a drive loses 10% of its output capacity. At 3,000 meters, 20% is gone.

If you are installing drives in high-altitude regions, mining operations in the Andes, water treatment in the Tibetan Plateau, or HVAC in Denver, you must either select a larger drive or choose a water-cooled system that is less sensitive to air density.

Enclosure, Dust, and Humidity Ratings

IP rating matters. A standard IP20 drive belongs in a clean electrical room. An IP54 or IP65 drive can survive dusty factory floors or outdoor installations.

If you install an unprotected drive in a harsh environment, dust will block heat sinks and humidity will corrode circuit boards. Both reduce effective current capacity and shorten lifespan.

Step 5, Plan for Electrical Accessories

The VFD itself is only part of the system. Proper accessory selection protects the drive, the motor, and the power supply. Getting the accessory sizing right is the final step in a complete VFD power calculation.

Line Reactors and DC Chokes

Line reactors (on the input side) and DC chokes (inside the DC bus) reduce harmonic current distortion and protect the drive’s rectifier from voltage spikes. IEEE 519 recommends line reactors when the ratio of source transformer kVA to VFD kVA exceeds certain limits, or when multiple drives share a single transformer.

As a practical rule, add a line reactor when:

• The supply transformer is more than 10 times the VFD kVA rating.
• The supply voltage is unstable or prone to surges.
• Multiple VFDs operate on the same bus.
• The facility has strict power quality requirements.

Braking Resistors

When a motor decelerates a high-inertia load, it acts as a generator and feeds energy back into the VFD’s DC bus. If the bus voltage rises too high, the drive faults. A braking resistor dissipates this energy as heat.

This is where the sizing resistor is selected according to a formula provided by the VFD manufacturers that is related to the load inertia, brake time, and duty cycle.

Input Fusing and Disconnect Requirements

Input fuses or circuit breakers protect the drive and upstream wiring from short circuits and ground faults. Size input protection at 1.5 to 2.0 times the drive’s input current rating. Use semiconductor fuses (not standard motor fuses) for proper arc suppression during internal drive faults.

A disconnect switch rated for motor duty is required for safe maintenance. It must be lockable and positioned within sight of the motor per IEC 60204 and NEC Article 430 standards.

Real-World Sizing Examples

Theory is useful. Numbers are better. Here are three practical VFD sizing scenarios with actual calculations.

Example 1: 7.5 kW Centrifugal Pump (Variable Torque)

A water treatment plant needs to control a 7.5 kW, 400V, three-phase centrifugal pump. The motor nameplate FLA is 14.8 A.

The application runs 24/7 at variable flow rates. Ambient temperature is 30°C. Altitude is 500 meters.

• Load type: Variable torque
• Base sizing: Match VFD output current to motor FLA (14.8 A minimum)
• Service factor: 1.15, so target drive rated for at least 17 A continuous
• Environmental: No derating needed (30°C, 500 m)
• Accessories: Line reactor recommended due to 24/7 operation
• Final selection: 7.5 kW VFD with 17–18 A output, normal duty rating

The plant installed the correctly sized drive and reduced energy consumption by 35%. The drive paid for itself in 14 months through electricity savings alone.

Example 2: 5.5 kW Conveyor (Constant Torque)

A manufacturing facility needs to run a 5.5 kW conveyor with frequent starts under full load. Motor FLA is 11.5 A. Starting torque requirement is estimated at 150% of rated. Ambient temperature is 35°C.

• Load type: Constant torque with high starting demand
• Base sizing: 11.5 A × 1.15 (service factor) = 13.2 A
• Overload requirement: 150% for 60 seconds = 17.3 A peak
• Drive selection: Choose heavy-duty rated drive with 150% overload capacity, or upsize to 7.5 kW frame (17–18 A) for torque headroom
• Final selection: 7.5 kW heavy-duty drive, 17 A continuous, 150% overload

The facility chose the upsized drive. It started reliably under full load. It also provided room for future production increases without another hardware change.

Example 3: Single-Phase Input to Three-Phase Motor Conversion

A small workshop has 220V single-phase power and wants to run a 2.2 kW, 380V three-phase motor on a lathe. Motor FLA is 5.2 A.

• Load Profile: Consistent low-speed horsepower
• Voltage Constraints: The motor is 380V and single-phase supply is 220 V. A 220V single-phase input VFD with a three-phase output of 380 V must be selected or the motor rewired for 220V delta connection.
• Current Sizing: Ensure Minimum output should handle 5.2 A; and when it comes to the input, input wiring and protection may need to handle similar to 2 times the equivalent 3-phase input current for single-phase.
• Torque Considerations: The lathe needs high torque at very low speed. A drive with sensorless vector control the torque boost can be the best selection.
• Selected Solution: 2.2 kW vector control VFD for single-phase input 220V and three-phase output of 380V, 150% overload protection

Common Sizing Mistakes That Cost You Money

Even experienced engineers make these errors. Avoiding them saves time, money, and frustration.

Oversizing “just to be safe”
A drive oversized by one frame size can cost 15–30% more with no operational benefit. Worse, oversized drives run at low output current for long periods, which can actually reduce power factor and cause motor insulation stress from excessive voltage rise times.

Ignoring input current on single-phase supplies
Three-phase VFDs on single-phase power need input protection and wiring sized for double the normal current. Undersized breakers trip. Undersized cables overheat.

Neglecting altitude derating
A drive sized for sea level loses capacity in the mountains. At 2,000 meters, what looks like a 7.5 kW drive is effectively a 6.7 kW drive. Size up or accept reduced performance.

Forgetting overload class settings
VFDs ship with default overload parameters. If your application needs heavy-duty torque and the drive is set to normal duty, it will trip even if the hardware is technically large enough. Always configure the overload class to match the load.

Mismatching voltage
A 380V motor on a 220V drive (or vice versa) will not deliver rated torque. Voltage matching is just as important as current matching.

Your VFD Sizing Checklist

Print this checklist and use it for every motor drive selection project:

•  Motor nameplate data recorded (power, voltage, frequency, FLA, service factor)
•  Load type identified (constant torque / variable torque / constant horsepower)
•  VFD output current rating ≥ motor FLA × service factor
•  Overload capacity verified for starting torque requirements
•  Input voltage matches supply (single-phase or three-phase)
•  Single-phase derating applied if applicable (2× rule)
•  Ambient temperature checked and derating applied if > 40°C
•  Altitude checked and derating applied if > 1,000 meters
•  IP rating suitable for installation environment
•  Line reactor or DC choke added if harmonics are a concern
•  Braking resistor sized if high-inertia deceleration is required
•  Input fuses and disconnect switch properly rated
•  VFD overload class parameter set to match application

Frequently Asked Questions

How do I select the right VFD?
Start by considering the motor nameplate information, specifically, Full Load Amps (FLA). Determine the type of load. Match the VFD output current with the motor requirement and apply the necessary environment and application-specific derate values. Finally, select the accessory items of either a line reactor or braking resistors based on personal power quality and load inertia requirements.

Should a VFD be oversized for a motor?
Not automatically. Oversizing by one frame size adds 15–30% to cost without improving performance.

Only oversize when the application demands high starting torque, rapid acceleration, or when environmental derating reduces effective capacity. For standard pump and fan applications, matching current is sufficient.

What happens if a VFD is undersized?
If a VFD is undersized, it will trip on overcurrent, overheat, or actually fail to start the motor under extreme load. Repeated overcurrent trips stress the IGBTs in the drive and profoundly harm the service life, and in the worst cases undersizing can result in permanent drive failure or motor damage as a result of insufficient torque.

Do I need a line reactor with my VFD?
Add line reactors when the rated capacity of the supply transformer is over 10 times the rating of the VFD or when power voltage is unstable or when several drives share a common bus or when IEEE 519 power quality standards apply. In small single-drive systems with a stable power supply, it is an option but still beneficial.

What is load type in VFD selection?
Load type describes how torque demand changes with speed. Constant torque loads need full torque at all speeds. Variable torque loads need torque that increases with the square of speed.

Constant horsepower loads need high torque at low speed and lower torque at high speed. Load type determines overload capacity, cooling requirements, and whether you need to oversize the drive.

Conclusion

Sizing a VFD correctly is not complicated, but it is specific. Horsepower gets you into the right neighborhood. Current, load type, and environment get you to the right door.

Make sure that the current rating of the VFD is the fattest approximation of the Motor FLA. Assume service factor. Determine which type of load is being powered constant torque, variable torque, or horsepower? Rain the engine by applying derating factors for temperature, altitude, and single-phase supplies. Protect your motor with some add-ons.

With all these steps done correctly, your VFD’s installation will reliably stand the test of time. Collapse them, and you will have more time to repair them than to run it.

Shandong electricity offers more than just VFDs; we work with the users right from selection to size, configuration, and commissioning so to avail better options for system performance from day one.

If you are evaluating a new project or upgrading existing equipment, contact our engineering team for application-specific VFD selection support. We will help you size it right, the first time.

Your equipment experiences increased operational costs and decreased lifespan because of the continuous operational mode that restricts its speed. A VFD for single phase motor changes everything. The system provides accurate motor speed control, allows users to track energy consumption benefits, and delivers improved performance through existing motor systems.

The guide provides you with detailed information about single phase VFD operation, identification of its most valuable applications, process for model selection, and installation method that requires no estimation.

What Is a VFD for Single Phase Motor?

The variable frequency drive VFD for single phase motor operation accepts single phase input power to produce variable controlled single phase output for motor drive. The system uses voltage and frequency changes to create smooth efficient motor speed control.

A single phase VFD system uses electrical supply modulation to control motor speed while standard across-the-line starters directly connect motors to full line voltage. The drive enables you to select your required speed by changing output frequency which ranges from 0 Hz to 60 Hz or higher.

These drives provide compact and cost-effective solutions for situations which lack three phase power or do not require it. The equipment operates on 220V or 240V single phase power which makes it suitable for light industrial applications and HVAC systems and agricultural machinery and workshop tools.

Shandong Electric provides multiple low voltage VFD systems which feature dedicated single phase systems. The units deliver dependable performance which our industrial clients demand but they have been designed to handle lower power needs.

How Does a Single Phase VFD Work?

A single phase VFD operates according to its basic functioning in the same way that all variable frequency drives operate. The system first transforms incoming AC power into DC power through its rectifier which then uses a capacitor bank to filter the DC power before the system produces output AC power at the required frequency and voltage.

The three-stage process AC-DC-AC enables the drive to separate motor speed control from the fixed frequency of the power line. The single phase system requires the rectifier stage to process one hot wire together with a neutral wire while the inverter stage creates a single phase motor waveform.

Current single phase VFDs include advanced control systems that use microprocessors for their operation. The system provides multiple functions which include programmable acceleration and deceleration ramps together with torque compensation and fault protection.

The motor operates at approximately half speed when the drive decreases its output frequency to 30 Hz. The VFD reduces voltage in direct proportion to the motor’s magnetic flux requirements which protects the motor windings. The motor needs coordinated voltage reduction because otherwise it risks overheating which results in torque loss.

Higher-end single phase drives use vector control algorithms which enhance their ability to produce low-speed torque and dynamic performance. This is important when you need to drive loads that experience both starting friction and changing resistance.

Key Benefits of Using a VFD With a Single Phase Motor

Adding a single phase VFD to your motor system delivers advantages that go far beyond simple speed adjustment.

Energy Savings

A single phase motor running at full speed consumes nearly its rated power even when the mechanical load is light. A VFD reduces both speed and voltage, cutting energy use proportionally. In fan and pump applications, reducing speed by just 20% can lower power consumption by approximately 50% due to the cubic relationship between speed and power in centrifugal loads.

Soft Start and Stop

Direct-on-line starting pulls five to eight times the motor’s full-load current. That inrush current stresses windings, wears bearings, and flickers lights across the circuit. A VFD ramps the motor up smoothly, eliminating mechanical shock and electrical surge.

Extended Equipment Life

Smoother acceleration, controlled speed, and built-in overload protection all reduce wear. Motors last longer. Couplings, belts, and gearboxes experience less fatigue. Maintenance intervals stretch further apart.

Precise Process Control

The VFD system provides precise flow rates and maintains constant tension while enabling synchronized speed operation. The user sets a target value which the drive maintains through load variations.

When Chen upgraded his small textile workshop in rural Shandong, three-phase power was not an option. The single phase winding machines operated at fixed speeds which resulted in unpredictable yarn tension and excessive waste. The installation of compact single phase VFDs on his motors provided him with his first experience of variable speed control. The results showed a 40% reduction in yarn breakage while his electricity costs decreased by almost 25%. The drives paid for themselves in under eight months.

Common Applications for Single Phase VFDs

Single phase VFDs serve a surprisingly wide range of industries and equipment types. Anywhere single phase power exists and motor speed control adds value, these drives make sense.

HVAC and Ventilation

Exhaust fans and blowers and air handling units experience major operational improvements through variable speed technology. The VFD system controls airflow to match actual demand instead of shutting down and restarting the fans. The system produces silent operation which enhances comfort control while generating significant energy savings.

Water and Wastewater

Booster pumps and pressure systems and small irrigation pumps operate at higher efficiency when their speed is controlled. The system maintains steady pressure through its operation because it uses direct pressure control instead of using throttling valves which would result in energy losses and increased water hammer effects.

Agriculture and Farming

Grain augers, feed conveyors, milking equipment, and ventilation fans often run on single phase supplies in rural settings. A VFD adds control without requiring expensive three phase infrastructure.

Food Processing and Packaging

Conveyors, mixers, and small packaging machines frequently use single phase motors. Precise speed adjustment improves product consistency and throughput.

Woodworking and Metalworking

Lathes, saws, grinders, and drills in small workshops frequently run on 220V single phase. Variable speed lets operators optimize cutting conditions for different materials and tool sizes.

How to Select the Right Single Phase VFD for Your Motor

Choosing the correct VFD for single phase motor applications requires matching several key parameters. Getting this right ensures reliable operation, long service life, and full performance.

Match Voltage and Phase

Verify your supply voltage and motor voltage. Most single phase VFDs are rated for 220V to 240V input and output. Confirm that your motor nameplate voltage matches the drive’s output rating.

Size by Motor Current, Not Just Horsepower

Motor horsepower ratings can vary by region and standard. NEMA and IEC standards define different frame sizes and performance ratings, so always verify the motor nameplate before selecting a drive. The safest approach is to compare full-load current (FLA) on the motor nameplate against the VFD’s continuous output current rating. Select a drive with a current rating equal to or greater than the motor’s FLA.

Standard practice is to oversize by roughly one frame size for single phase applications. This provides margin for overload, voltage imbalance, and high-temperature environments.

Consider the Load Type

Centrifugal loads such as fans and pumps require less starting torque than conveyors or compressors. High-torque applications may need a drive with vector control or enhanced overload capacity. Check the drive’s overload rating. Many units handle 150% overload for 60 seconds, which is adequate for most light industrial duty.

Check Environmental Ratings

Operating temperature, humidity, dust, and vibration all affect drive life. If the drive will mount inside an enclosure or near a heat source, choose a model with adequate derating or add external cooling.

Evaluate Control and Interface Needs

Some applications need simple potentiometer speed control. Other applications require users to provide external analog signals together with digital inputs and serial communication capabilities. The control method you choose should determine your model selection because different models require different interfaces.

Last autumn, a poultry farm in Hebei province experienced problems because their ventilation system failed to provide suitable airflow. Their fixed-speed exhaust fans operated continuously at maximum capacity, which created air currents that disturbed the flock while increasing their heating expenses.

The farm decided to use a single phase VFD solution after our engineering team conducted their evaluation of the fan motor setup. The drives now use temperature sensors to manage airflow operations. The farmers achieved better animal health which resulted in 35% reduced energy consumption and they could finally enjoy uninterrupted nighttime sleep because they no longer needed to manually adjust dampers.

Installation and Wiring Best Practices

Proper installation determines whether your single phase VFD performs reliably or generates noise, trips, and premature failure.

Use a Dedicated Circuit

Run the VFD on its own breaker-protected circuit. Do not share the line with sensitive electronics or lighting circuits. The drive generates harmonic noise that can interfere with other equipment.

Follow Manufacturer Clearance Requirements

Mount the drive with adequate spacing above, below, and beside the unit for airflow. Blocked ventilation is one of the most common causes of drive overheating.

Ground Properly

Connect protective earth according to the installation manual. Use the specified wire gauge and keep ground leads as short as possible. Good grounding reduces electrical noise and improves safety.

Shield Motor Cables

Route motor cables in shielded conduit or use shielded cable. Keep motor wiring separated from control and power lines. This prevents induced noise that can disturb nearby sensors and controllers.

Add an Input Reactor or Filter if Needed

On long line runs or in areas with poor power quality, an input reactor or EMC filter protects the rectifier and reduces harmonics fed back into the grid.

Verify Parameter Settings Before Startup

Most drives ship with default parameters. Enter your motor nameplate data: rated voltage, current, frequency, and speed. Set acceleration and deceleration ramps appropriate for your load. A too-aggressive ramp can trip overcurrent; too gentle wastes time.

Troubleshooting Common Issues with Single Phase VFDs

Even well-installed drives occasionally need attention. Here are the most common issues and how to resolve them.

Overcurrent Trips

Check for mechanical binding in the load. Verify that acceleration ramp time is not set too short. Ensure the motor is properly wired and that cable insulation is intact. Oversizing the drive by one rating often eliminates nuisance trips.

Overheating

Inspect cooling fans for dust buildup. Confirm ambient temperature is within the drive’s rating. Improve ventilation or add external cooling if the drive operates inside a cabinet.

Motor Noise or Vibration

Some single phase motors produce audible carrier-frequency noise when run by a VFD. Increase the carrier frequency parameter if the drive allows it. If vibration occurs only at certain speeds, check for mechanical resonance and use skip-frequency settings to avoid those bands.

Erratic Speed or Poor Torque

Recheck motor parameter settings against the nameplate. For sensorless vector drives, perform an auto-tune procedure so the drive learns the motor’s electrical characteristics. Verify that voltage boost settings are appropriate for your motor size.

EMI Interference

If nearby sensors or controllers malfunction when the VFD runs, improve shielding and grounding. Install ferrite cores on motor cables. Keep power and signal wiring well separated.

When to Upgrade From Single Phase to Three Phase

A VFD for single phase motor is a powerful solution, but it is not always the final answer. There are situations where upgrading to a three phase system delivers better long-term value.

Large Power Requirements

Single phase VFDs are generally limited to smaller motors, typically up to 3 hp or 5 hp depending on the manufacturer and supply capacity. Above that, three phase drives and motors become more practical and cost-effective.

Existing Three Phase Motors

If you already own a three phase motor and only have single phase supply, a phase-converting VFD is an option. These drives accept single phase input and output three phase power to the motor. However, the motor must be properly derated, and not all three phase VFDs support single phase input. Check our guide comparing single phase and 3 phase VFD configurations for details.

Industrial Scale Operations

As production expands, the limitations of single phase power become restrictive. Three phase systems distribute power more efficiently, reduce conductor sizes, and simplify motor starting across larger facilities.

If your facility is growing beyond single phase capacity, our engineering team can evaluate your load profile and recommend a scalable migration path.

Maria ran a small bakery in Zibo with three single phase mixers and conveyors. Each motor hammered the electrical panel on startup, and her utility bills climbed every summer.

She installed single phase VFDs as a first step and immediately saw softer starts and lower demand charges. Two years later, when she expanded into a larger facility with three phase service, she kept the same VFD expertise and simply upgraded to larger three phase drives. That early investment in speed control knowledge made her expansion smoother and her new line more efficient from day one.

Conclusion

The VFD system functions as the best upgrade solution for single phase motors when three phase power systems are not required. The system enables equipment operation through variable speed control, which results in energy savings, longer equipment lifespan, and better operational performance.

Key takeaways from this guide:

• A single phase VFD adjusts motor speed by varying output frequency and voltage through an AC-DC-AC conversion process.
• Energy savings of 30-50% are achievable in centrifugal applications such as fans and pumps.
• Soft starting eliminates inrush current and mechanical shock, protecting your motor and drivetrain.
• Correct sizing depends on matching voltage, phase, and motor full-load current with adequate overload margin.
• Proper installation, grounding, and shielding prevent the majority of operational issues.
• Single phase VFDs serve HVAC, agriculture, water systems, and small industrial machines worldwide.

Running a three-phase motor in single-phase without a proper remedy leads to severe derating, inefficiency, and premature motor failure. A single-phase to a three-phase VFD provides an answer to these problems by converting its present single-phase input into a true three-phase output. This guide will delve into the precise working of the VFD in this conversion, how to correctly size and wire it, and the setting of parameters for long-term, reliable performance.

Marcus had confronted himself with the same dilemma when the young machinist opened his precision shop in Ohio in the spring. His building had 240 V single-phase service, and had the used CNC lathe he just bought it down to 460 V three-phase. Installing a primary 3-phase setup would cost him $18,000; $18,000 he’d rather save. Instead, Marcus installed a high-grade VFD to run on a single phase. In a single day, the machine ran to full torque and saved Marcus $18,000 in utility costs.

How a VFD Converts Single Phase to 3 Phase Power

A Variable Frequency Drive (VFD) is a three-step electronic process called the AC-DC-AC conversion that can convert single-phase input into the output of three phases; the description of this process helps understand what a true three-phase power source is.

The AC-DC-AC Conversion Process

Stage 1: Rectification. The VFD’s rectifier circuit takes the single-phase AC input and converts it to DC voltage. In a single-phase setup, this happens across two input terminals instead of three, which creates higher ripple on the DC bus.

Stage 2: DC Bus Smoothing. Capacitors and sometimes inductors on the DC bus filter out voltage ripple and store energy. This stable DC voltage becomes the “raw material” for the output stage.

Stage 3: Inversion. Through utilizing Pulse Width Modulation (PWM), the Insulated Gate Bipolar Transistor (IGBT) is made to switch the DC voltage on and off at a high frequency. By controlling the switching pattern in sequence via PWM, the VFD ultimately recreates three separate AC waveforms offset by 120 degrees.

Why the Output Is True Three-Phase Power

The VFD does not simply split single-phase power into three uneven legs. It synthesizes three independent sinusoidal waveforms with precise 120-degree phase displacement. This gives you:

• True rotating magnetic field in the motor
• Full rated torque when properly sized
• Variable voltage and frequency control for speed regulation
• Soft-start capability to reduce mechanical stress

This is fundamentally different from static phase converters, which create an artificial third leg that often delivers unbalanced voltage and reduced motor performance.

VFD vs. Phase Converter: Which Solution Is Right for You?

Not every single-to-three-phase application is best served by a VFD. Choosing the right technology depends on your load type, need for speed control, and whether you are powering one machine or an entire shop.

When to Choose a VFD

A single phase to 3 phase VFD is the optimal choice when:

• You are powering a single motor under approximately 10 HP
• Variable speed control provides operational benefit
• The application involves pumps, fans, conveyors, or machine tools
• Energy efficiency and soft starting are priorities
• You want integrated motor protection features

When to Choose a Phase Converter

A rotary phase converter may be better when:

• You need to power multiple machines from a single three-phase panel
• You have sensitive CNC equipment that requires perfectly balanced three-phase
• Speed control is not required
• You prefer a centralized three-phase distribution point

Sizing and Selecting the Right Single Phase to 3 Phase VFD

The most important step in a successful installation includes sizing. Single-phase input causes high current draw and thermal stress on the VFD rectifier section. Undersizing accounts for most precocious failures.

Why You Must Oversize the VFD

On a three-phase supply, current divides across three input terminals. On single-phase, the same motor power must be delivered through only two terminals. This means:

• Input current is approximately 1.73 times higher (√3 multiplier) on single-phase versus three-phase input
• The rectifier diodes and DC bus capacitors work harder
• Heat generation increases, requiring either larger components or better cooling

The Derating Rule

The standard engineering rule for single-phase input is:

VFD rated current ≥ 1.5 × motor Full Load Amps (FLA)

In horsepower terms, this generally translates to oversizing the VFD by 50-100% compared to the motor rating.

Worked example:

• Motor: 5 HP, 230V three-phase, FLA = 15.2A
• Minimum VFD current rating: 15.2A × 1.5 = 22.8A
• Recommended selection: 7.5 HP or 10 HP VFD rated for single-phase input

Dedicated Single-Phase Input VFDs vs. Derating a Three-Phase Unit

Some manufacturers offer VFDs specifically designed for single-phase input. These units typically include:

• Larger rectifier bridges to handle higher input current
• Enhanced DC bus capacitance for better ripple management
• Built-in pre-charge circuits to limit inrush current
• Warranty coverage that explicitly includes single-phase operation

Through utilizing Pulse Width Modulation (PWM), the Insulated Gate Bipolar Transistor (IGBT) is made to switch the DC voltage on and off at a high frequency. By controlling the switching pattern in sequence via PWM, the VFD ultimately recreates three separate AC waveforms offset by 120 degrees.

Step-by-Step Installation and Wiring Guide

Correct wiring ensures safety, performance, and longevity. Follow these steps carefully, and always consult a qualified electrician if you are not experienced with industrial electrical work.

Input Power Connections

1. Connect single-phase L and N to terminals R and S (sometimes labeled L1 and L2). These are the VFD’s input terminals.
2. Leave terminal T (L3) unconnected. This is the third input phase, and there is no third phase available in a single-phase supply.
3. Install a properly sized circuit breaker upstream of the VFD. Size it at approximately 1.2 × the VFD’s rated input current.
4. Ground the VFD chassis to the facility ground bus using the dedicated ground terminal. Do not rely on conduit grounding alone.

Output Power Connections

1. Connect motor leads U, V, and W to the VFD output terminals in the correct phase sequence. If the motor runs backward, swap any two output leads.
2. Use shielded cable for motor leads longer than 50 feet (15 meters) to reduce electromagnetic interference (EMI).
3. Consider an output reactor or dV/dt filter for cable runs exceeding 100 feet (30 meters) or when using older motors not rated for inverter duty.

Pre-Startup Checklist

Before applying power:

•  Breaker sized correctly (~1.2× input current)
•  Input and output cables sized per manufacturer tables
•  Proper grounding verified with low-resistance connection
•  Motor nameplate data recorded for parameter entry
•  VFD mounted in clean, dry, ventilated location
•  No debris or conductive material inside VFD enclosure

VFD Parameter Setup for Single-Phase Input

Parameter configuration is where theory becomes practice. Entering the correct motor data ensures the VFD delivers appropriate voltage, current, and frequency to the motor.

Essential Motor Nameplate Parameters

Program these parameters first, before running the motor:

Note: Parameter numbers vary by manufacturer. Always consult your VFD manual.

Acceleration and Deceleration Times

Set acceleration time long enough to prevent overcurrent trips but short enough for operational needs. A good starting point:

• Acceleration: 5-10 seconds for general machinery, 15-30 seconds for high-inertia loads
• Deceleration: 5-10 seconds; extend if DC bus overvoltage faults occur during stopping

Soft starting reduces mechanical shock and extends motor and drivetrain life.

Carrier Frequency and Overcurrent Settings

• Carrier frequency: Start at 4-8 kHz. Higher values reduce motor noise but increase VFD heating. Lower values improve thermal margin.
• Overcurrent threshold: Some VFDs allow adjusting the overcurrent protection level. Do not increase this to mask an undersized VFD.

The first time installing a single phase-to-3 phase VFD used on a 3 HP pump in a small water treatment plant in Texas, the production crew refused to screw with any of the parameters and just pushed “go.” The water was running–that is, until the pump started overheating, tripping out on overload within 2 weeks. The motor’s nameplate data was correctly entered and the acceleration time was increased from 2 seconds to 8 seconds, bringing the system to normal operation for over a year.

Energy Savings and Efficiency Benefits

A single phase to 3 phase VFD is not just a power conversion tool. It is also an energy optimization device that can deliver measurable operational savings.

Where the Savings Come From

For variable-torque loads such as pumps and fans, the affinity laws govern energy consumption:

• Flow is proportional to speed
• Pressure is proportional to speed squared
• Power is proportional to speed cubed

Contrary to popular thought, reducing the fan speed by 20% cuts the power requirement at almost 50%. For instance, control of pump and fan applications can be done by variable frequency drive, which would account for substantial energy savings on the order of 20 to 50% when compared to the constant-speed operation.

Power Factor Improvement

Unlike direct-line motors, which draw reactive power from the grid and can operate at power factors of 0.70 as well as lower (and onwards), a variable frequency drive (VFD) maintains a power factor of 0.95 or higher on the input side. Drink diminutive utility-bearing responsibility charges and improve the total electrical efficiency.

Payback Calculation

For a 5 HP pump running 4,000 hours per year:

• Baseline energy cost (no VFD): ~$1,400/year
• Energy cost with VFD speed control: ~$700/year
• Annual savings: ~$700
• VFD investment: ~$600-$900
• Simple payback: 10-15 months

Typical payback periods for variable-load applications range from 1-3 years, according to the Electric Power Research Institute.

Common Issues and Troubleshooting

Even a properly sized and wired VFD can experience issues if environmental or parameter factors are overlooked. Here is a quick-reference framework for the most common field problems.

Overheating and Nuisance Tripping

Causes:

• Undersized VFD for single-phase input
• Inadequate ventilation or high ambient temperature
• Blocked VFD cooling fans or dirty heatsinks
• Excessive carrier frequency setting

Solutions:

• Verify VFD current rating is at least 1.5× motor FLA
• Ensure minimum clearances around VFD enclosure
• Clean fans and heatsinks quarterly
• Reduce carrier frequency if ambient temperature exceeds 40°C (104°F)

Motor Noise and Vibration

Causes:

• Carrier frequency too low (audible whine)
• Missing output reactor or filter on long cable runs
• Mechanical resonance at certain operating speeds

Solutions:

• Increase carrier frequency if thermal conditions allow
• Install output reactor for cables over 50 feet
• Use skip-frequency settings to avoid resonant speeds

Erratic Speed or Starting Failure

Causes:

• Incorrect motor parameter settings
• Incompatible control mode for the load type
• Insufficient acceleration time for high-inertia loads

Solutions:

• Re-verify all motor nameplate parameters
• Select V/F control for general loads, vector control for high-torque applications
• Extend acceleration and deceleration times

Real-World Applications

Single phase to 3 phase VFDs are used across a wide range of industries and applications where three-phase utility power is unavailable or cost-prohibitive.

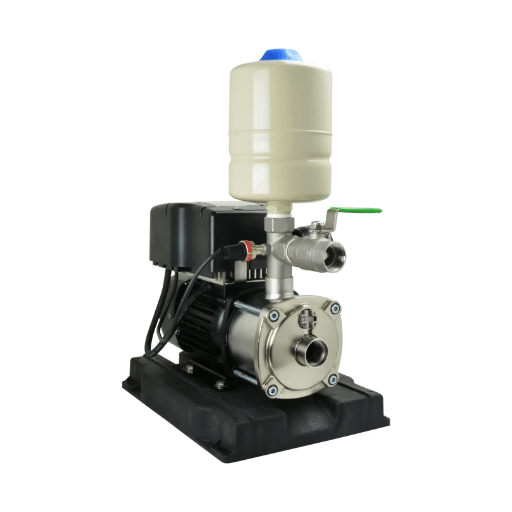

Water pumps and irrigation. Agricultural operators use VFDs to control pump speed based on flow demand, saving energy and reducing water waste.

HVAC fans and blowers. Variable airflow control improves comfort while cutting energy consumption by 30-50% in many installations.

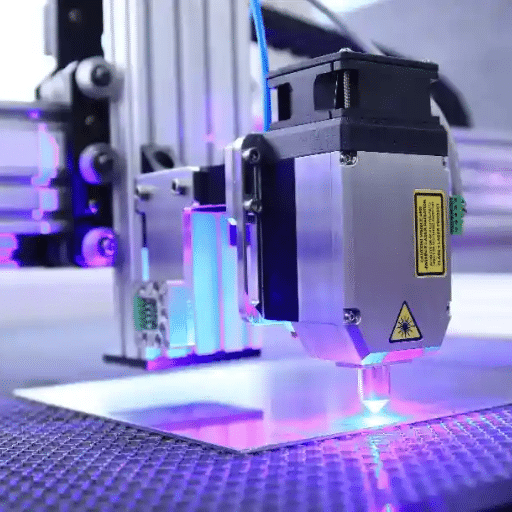

Machine tools and CNC equipment. Small shops run precision equipment on single-phase supply using properly sized VFDs, avoiding expensive utility upgrades.

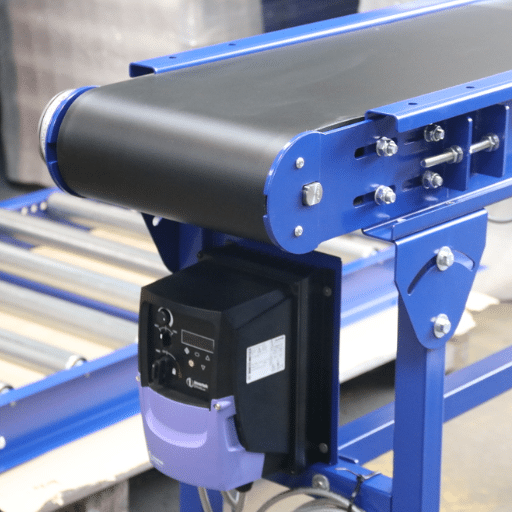

Compressors and conveyors. Soft starting reduces mechanical stress, while speed matching improves process control.

Small manufacturing and agricultural operations. From grain handling to packaging machinery, VFDs enable three-phase equipment deployment in rural and light industrial settings.

Conclusion

A sufficiently sized single-phase to 3-phase VFD is a highly efficient, adaptable, and cost-efficient solution for using three-phase motors on one-phase power. Unlike phase convertors, VFD provides true balanced three-phase power, motor protection integrated, dexterity of varying the speed and the big thrust derived toward energy-saving.

Here are the key takeaways:

• Oversize by 50-100% to handle the higher input current on single-phase supply
• Wire L and N to R and S, leaving T unconnected
• Enter motor nameplate parameters before the first startup
• Use shielded output cables and consider filters for long motor leads
• Expect 20-50% energy savings on variable-torque loads like pumps and fans

Whether you are equipping a small workshop, upgrading rural infrastructure, or optimizing an existing process, the right VFD transforms a power limitation into a performance advantage.

Understanding of Variable Frequency Drives (VFDs)

What is a Variable Frequency Drive?

Use of Variable Frequency Drive (VFD) in different cases gives a lot of benefits, mainly in industrial and commercial areas. One of the main advantages of VFD is provision of the precise motor speed which can help to run the equipment at proper control level and meet any specific criteria. This reduces energy waste by a large margin as motors do not have to run at their full speed anymore and this is especially important since most of the time they do not even need the maximum speed.

It also helps in reducing optical overload of mechanical traction on the motor. VFDs create an opportunity of minimized stress on motor components due to the rise and fall of seamless speed meaning an extended use or life on the motor and other devices. Such developments in variable frequency drives have turned them into explicit devices having capacities like they can be adjusted to certain parameters, they can as well relay data, hence allowing one to integrate them in modern know nothing manufacturing or in other words Industry 4.0 and in the Internet of Things. VFDs have the ability to increase efficiency and reselling them increase less depreciation. VFDs are integral in both current technological advanced industrial automation, HVAC and renewable energy solutions.

Operational Principles of VFDs

Variable Frequency Drives (VFDs) function by adjusting the output frequency and voltage of the electricity delivered to the motor. In other words, the said adjustment is possible by transforming the input power supply of AC into DC through a rectifier, usually using a diode bridge or controlled thyristors. The DC voltage obtained at the output is then filtered and smoothed by a capacitor, which removes any ripples. At this point, transformation of the voltage is carried out, albeit with controlled frequency and voltage, converting the previously stepped down DC voltage using an inverter that uses active switching elements like modern insulated-gate bipolar transistors (IGBTs).

The output frequency directly affects the speed of rotation of the motor, while the voltage ensures proper torque and efficient operation of the machine. By using pulse width modulated (PWM) technology, VFDs fine-tune the technique structure, controlling motor acceleration, deceleration and steady-state processes. Traditional VFDs also have such a function. Voltage Fun Drives advances that incorporate specific dynamic tasks to the output values are capable of adjusting the system’s working point for higher efficiency as well as minimizing the mechanical damage to the equipment.

The sensors and feedback systems installed in the motor also feed on key elements such as motor load rating and operating speed and the heat characteristic of the motor. Such input data allows further adjustments during the operation or even allows better performance and reliability. With these intricate systems of operations, VFDs have an advantage that takes the application of the product to another whole level especially in the industrial spheres, as they allow unexcelled accuracy and efficiency.

Differences Between Single-Phase and Three-Phase VFDs

Single-Phase VFD

Advantages of Single-Phase VFDs

Limitations and Considerations

Three-Phase VFD

Benefits of Using Three-Phase VFDs

Challenges in Implementing Three-Phase Drives

Excellent as they are, the incorporation of three-phase electrical motors in the workplace does come with attendant technical and operational problems which need to be solved for the system to work effectively. First of all, the uppermost problem is the excessive expenses initially for the purchase of the equipment and the equipment itself, and the installation and start up of the system as a whole. It is an obvious fact that, unlike other simpler single-phase electromechanical equipment, the three-phase equipment has relatively more attachments that are used in control and monitoring tasks, including but not limited to complex motion controllers, sensors, and very strong power supply systems, which discourages the purchase of this equipment.

Going further, the most distressing problem, which hinders proper system operation, is the issue of system complexity. Therefore, it is necessary, as with any other electromechanical power equipment, to properly configure the three-phase drives in order to bridge coherence and harmony with the existing equipment and the electrical systems as they are. It is also necessary to mention the effect of harmonics into the appliance, the power source, which can be a cause of system instability, decrease of efficiency, or accelerated destruction of individual parts of the source.

In addition, the repair of three-phase drives calls for knowledge in maintaining such devices as they are more complex in design and use sophisticated control systems. Carrying out continuous monitoring and diagnosis of the system to address problems like overheating, insulation breakdown, or equipment break down is also recommended as some situations may affect the performance and the reliability and will lead to higher maintenance costs as well as Hadley, since a lot of time will be lost in the waiting for the delivery of spare parts. Last but not least, external factors such as high temperatures, humidity, and impurities will adversely affect these materials, so extra precautions should be taken during installation and operation.

Applications of Single-Phase and Three-Phase VFDs

On the contrary. Three-phase VFDs play a crucial role in the operation and management of large industrial spaces and substantial facilities, commonly associated with high powered equipment like machines, conveyors, screw compressors or big sized chillers. VFDs such as these do a lot more than enable energy savings, as they also reduce the mechanical stresses on the machinery and are designed to help manufacturing, mines, and water plants become more automated. Given the conditions in which they operate, these VFDs are very versatile and extremely effective.

Common Uses of Single-Phase VFDs

Single-phase drives operated using variable frequencies or VFDs are used widely in electrical machines where single-phase conduits are the only source of supply and at precision motor control. Such machines are commonly found in the domestic, small industrial and agricultural settings. Fan and compressor motors that are used in the HVAC units are a typical example. The usage of VFDs allows these motors to operate efficiently as they switch on and off, which tries to imply energy conservation. This third type of the complete pumping system consists of single-phase waterpumps that are provided by the farmer, drawn by hand to the boreholes to pump water.

Also, VFDs can be employed in the Yahokota Water Services to control the water pumps for general supply. Their other applications comprise of the provision of soft start-up, acceleration, protection against too many loads in the conveyor belts and small machinery in workshops and factories. They are usually very convenient considering the system’s reliability and especially the motor life, which is one of the huge problems associated with a fire.

Three-Phase VFD Applications in Industry

Three-phase VFDs (Variable Frequency Drives) are an important electronic device in some industries that require precise control and high energy efficiency, for example, they are widely used in manufacturing, and oil and gas, air conditioning so often called HVAC systems and also, production of power. Their main purpose is the control of the speed, torque, and direction of the three-phase motors, thereby enhancing their performance while minimizing energy consumption.

Manufacturers, conveyor systems, mixers, and extruders are predominantly dependent on three-phase VFDs, it drives consistent speed for good product quality and minimizes waste. Installing these drives in the HVAC industry helps to reduce the overall consumption of energy and the associated costs of centrifugal or rotary systems oriented toward fans, pumps, compressors and more, because the speed of their operation can be controlled whenever it is necessary. Also, three-phase VFDs are also used in the oil and gas industry for the steering of varieties of drilling equipment, pumps and or compressors as they have to maintain high levels of reliability and load tilting in order to function properly within their different operating conditions.

In addition to improving efficiency in energy consumption, the vast amount of energy saved by this application is up to 50% compared to the traditional methods. It should be also appreciated that motors and connected machinery have their life extended further, during the start-up and operational phase of adaptation of three-phase ways and the suppression of mechanical stress, thanks to which maintenance costs will be significantly decreased together with a reduction in unscheduled repairs. All of the aforementioned therefore make the three-phase VFDs an absolute necessity for the drive to accelerate industry towards high performance.

Choosing the Right VFD for Your Motor

When looking for a Variable Frequency Drive (VFD) for your motor, there are plenty things that you need to consider so that everything can be in the right place for it to work as required.

Key Factors to Consider

As you settle on the kind of Variable Frequency Drive (VFD) you would like for your industrial application, the most recent data and information are also necessary to evaluate operational data, effectiveness, and compatibility. The advent of VFD technology most recently allowed electronic control of the motor speed, which has been proven 30% energy saving even in industrial plants. Another aspect which is now very important is the ability of a VFD to communicate with other devices in the field of Internet of Things (IIoT). This is because contemporary VFDs have communication options within the drive like Ethernet/IP and Modbus for quick exchange and optimization of process parameters. Furthermore, there has recently been a shift in the perception of noise emission levels because new machines incorporate active filters to suppress harmonics in power circuits. By the help of these modern enhancements, the enhancement can be managed to suit the present duties of the company and the future scaling.

Power Availability and Compatibility

It is crucial for the smooth functioning of industrial systems in the present day to have power without fail and compatibility that is untainted. Even though recent strides have been made in the control and provision of power, in particular voltage control, features like automatic voltage regulation (AVR) and uninterruptible power supply (UPS) that are designed to suppress voltage deviations and power fail-overs have been incorporated in power management systems. Such strengthening has allowed these systems to work over a broader range of line voltages, now under reliable operation in more intense use rather than the frequent break downs which were experienced.

The compatibility aspect has improved as well with the help of more universal power connectors across various regions, and by making the input frequency range adaptable. Such equipment also manages to perform as required across peculiar terrains or infrastructure configurations. Besides this, renewable sources including solar and wind have increased by use of such devices, and now includes the distribution of power with the help of dynamic load sharing and energy storage. It is very important that such criteria are observed in the case of ensuring sustainability of operation and in the case of reengineering installations against forthcoming in power consumption.

Cost-Effectiveness and Efficiency

There’s a noticeable shift in the design of contemporary power systems: they have to be cost-efficient and readily available, for use in industries and for individuals in other parts of making the system less wasteful in terms of energy. With the development of new technologies such as intelligent grid technologies and automation power systems have seen a much decrease in energy losses as possibilities for real time power distribution and load management become optimally utilized. This lowers the general costs of power as an important aspect of cost reduction is the use of highly efficient transmission lines that eliminate energy loss during the transmission of energy.

In addition, technical solutions in the sphere of energy harvesting are designed – lithium-ion batteries, flow batteries – which affords the improvement in the introduction of alternative resources and reduction of the dependence on the normal combustion systems. And as such, these changes now increase operational costs and improve terms of current and future energy standards, but make them a necessity in modern operational energy systems.

Reference Sources

Frequently Asked Questions (FAQs)

Understanding Variable Frequency Drive

Types of Variable Frequency Drives

Applications of VFDs in Industrial Automation

Optimizing CNC Machines with VFDs

Variable Frequency Drives (VFDs) take control of the spindle motors to control both speed and torque. Variable frequency drives also set the spindle speed parameters which makes it easy for the machines to be programmed to have the correct speed for the material. Electric energy is saved by the variable frequency drives by adjusting the motor’s performance to the particular machining requirements. Variables such as current, frequency, and voltage are adjusted to mimic the mechanical quantities for different machinings. Thus, the motor is more efficient as it does not consume power like the fixed speed motor even when not in operation. This attained efficiency is, however, dependent heavily upon the nature of the load. The technical term used in the industry in this connection is controlling the motor in the so-called “Vector Control Mode”.

Enhancing Precision in CNC Operations

It is very essential to have a good level of precision in CNC operations and this can be achieved through the cooperation of technology and the most detailed process optimization. One of the very important technologies is the adoption of linear encoders and when they are utilized, the positional accuracy can be checked very quickly and this information can be used by the system to adjust also for very small deviations. Consequently, the sub-micron positioning accuracy, which is the critical feature for industries like aerospace, and medical device manufacturing, will be sustainably met by the machine.

No one can deny the fact that toolpath optimization software is one of the key factors to obtain the cutting tool geometry needed for the desired parameters. The software almost immediately helps the machinist to get rid of difficult programming and set-up practices not to mention the time-consuming process of developing standard cutter inserts. Moreover, the software is capable of digitizing the set of the cutting tool provided by the tool vendor through data collection and adaptation, systematically embracing the automation process.

VFD Implementation in CNC Manufacturing

Variable Frequency Drives (VFDs) also contribute greatly to the technique of modern CNC manufacturing by offering variable-frequency and voltage control of industrial motors, thereby reducing power, energy consumption, and the mechanical and thermal stress on the attached equipment, hence, the controllable parts still being in general perfect mechanical condition in the long run. Moreover, the expansion of the workflow area thorough the provision of the driving system in the production cell for automated warehousing decreases the number of warehousing operations and shorten the delivery time.

Dynamic torque vectoring and multi-motor synchronization are among the recent VFD technology advancements. IoT-enabled VFD systems have also been integrated, making preventive maintenance more efficient. These systems keep an eye on the essential parameters of the motor such as its temperature, vibrations, and load, thus allowing to run diagnostics in real time and to bring the occurrence of unexpected downtime to as low a degree as possible.

The other aspect of VFD usage in the domain of CNC production is that it has a direct effect on the quality of the finished surface as well as on the accuracy of the dimensions. By the control of the speed with great precision one can avoid the occurrence of the main hindrance for a good finishing – chatter, and at the same time the material removal rate will be kept at a consistent level so the possibility of tool wear will also be reduced. Added to these factors is the fact that modern motion-control systems provide a valuable contribution to the CNC machine capacity in terms of handling intricate geometries and high-precision applications effectively.

Benefits of Motor Control in CNC Applications

Boosting Pump Efficiency through VFDs

Variable Frequency Drives (VFDs) are very helpful for making the pump system’s operation more efficient and get much improvement is ensured. The biggest benefit of the VFDs is that it matches the motor speed with the real flow or pressure demands due to which the wastage of energy is zero, as is the case with the fixed-speed pumps full-time operation in the full demand mode. The final result is great energy savings being achieved most probably in the applications of a variable load situation. The dependence of mechanical systems on the pump is reduced when VFDs eliminate the stress on the system components during the starting period along with the soft start-up method provided. In a way, the Advanced VFDs with built-in diagnostics and monitoring systems become the typical choice for the modern, efficient and energy-saving pump system’s operators because they allow for predictive maintenance and, therefore, make the system more reliable by reducing the downtime.

How VFDs Improve Pump Performance

Variable Frequency Drives (VFDs) allow boosting the pump capacity by giving control over the speed of the motor to an infinite precision level. When the VFD is used, the pump’s output is matching the system’s demand every time, which is not the case with the traditional system that always runs at full power. This results in substantial savings in energy consumption, especially in systems where the demand for load varies during operation. For instance, several surveys indicate that lowering the motor speed by only 20% can cause a 50% reduction in the pump system’s energy use, which indicates the very high efficiency gains achievable with the implementation of VFDs.

Variable Frequency Drives (VFDs) are a type of motor controller that both identify and dampen hydraulic difficulties through changing the rotating speed. Cavitation, which is an outcome of the existence of low-pressure pockets in the pump, may not cause harm instantaneously but over time, could lead to significant wear. The VFDs work out this potential risk by adjusting the pump speed to adhere to the most favorable conditions regarding flow and pressure. Even more so, the soft starting and easing off that the VFDs provide considerably minimizes the chances of a water hammer. It is the VFDs that are stopping or starting the flow abruptly that create such a pressure surge.

Quantifiable Energy Savings from VFD-Driven Pumps

Apart from that, VFDs enable the provision of real-time control and monitoring which leads to the efficiency in responding to the changing requirements of the system. Consequently, this dynamic optimization not only saves energy but also prevents mechanical parts from getting damaged thus adding to the cost efficiency in the long run. The introduction of VFD-related applications directed at the motors of a plant extends far beyond the savings in the energy balance but also into the savings of the environmental impact. Specifically, the wastewater treatment and the HVAC industry would be the first ones in line to get involved in financial and environmental advantages as they would be accomplishing the requirements as per the sustainability initiatives.

VFDs in Industrial Pump Systems

Variable Frequency Drives (VFDs) are extremely important for the functionality of industrial pump systems because they enable precise control over motor speed and torque, thus, matching pump output to the current demand. VFDs enable a scenario where a system load can vary significantly from the average and pumps can still run at peak efficiency. Specifically, centrifugal pumps are a key beneficiary of this technology as their power consumption changes with the cube of the speed—a 20% drop in speed can lead to almost 50% of energy savings. On top of that, VFDs help to cut down on mechanical wear by allowing for a gradual start and stop to the motor. This will be a very rewarding feature because it will let pumps take in the flow gently, thus reducing stress on seals, bearings, and the piping system through the cut off of the surge. Slow wear and tear result in increasing equipment life and low maintenance cost in the long-term.

The usage of VFDs can prove really useful in environments which require flow control, for example, chemical processing or water distribution networks. In those cases, the conventional method of controlling flow via the opening-close of throttle valves can be substituted with VFD-regulated speed changes which in turn will give us exact flow rates without the power loss due to the pressure. On top of this, the VFD market lately has seen the entry of maintenance and monitoring systems that use analytics for predictive maintenance and monitoring, thus giving information on the system’s conditions and possible failure points, combining to ensure the smooth running of the industrial operation.

Enhancing Conveyor Systems with Variable Speed Drives

Variable Speed Drives (VSDs) are considered the lifesavers of conveyor systems since they operate these systems more efficiently and save on energy. The drives cut back on wear and tear by matching the motor speed with the load demand, extend the equipment’s life expectancy, and cause a significant drop in maintenance costs. Beyond this, the state of the art in speed control makes the handling of materials more accurate, reduces the waste of material, and increases productivity. Current VSDs come with innovative control functions as well, for instance, soft starting and stopping, to name a few, which not only prevent the material from being overused but also improve safety. With the help of such great advantages like these features combined, VSDs are considered as an essential part in terms of the improvements of the performance and efficiency of conveyor systems in many different sectors.

Optimizing Material Handling with VFDs

Variable frequency drives (VFDs) throughout the years have been a great support for material handling systems and at the same time their control has been enhanced along with the energy saved. Energy consumption can be greatly reduced by as much as 30% if VFDs are used in systems with varying load requirements. The latter energy-saving measure is a result of a speed-matching system by the VFDs according to the process load in real-time which is expected to decrease wasted power during low-traffic times to a great extent. Not only that, but the VFDs are also compatible with industrial Internet of Things (IoT) platforms which in turn means they contribute to a data-driven decision-making process and timely maintenance service. These are the key factors reinforcing each other as the VFDs are saving energy while at the same time further heat-tracking and ensuring that the data from various sensors is with no delay directed to the proper maintenance or repair sites.

Reducing Long-Term Maintenance Costs in Conveyor Systems

The reduction of long-term maintenance costs in conveyor systems significantly and is largely based on the application of advanced predictive maintenance techniques. Advanced predictive maintenance methods are able to use sensor data, machine learning algorithms, and real-time monitoring for predicting failures before they occur. For instance, vibration and temperature sensors can continuously check the health of machine components like bearings, motors, and belts to which the sensors are attached and give early signs of wear or excessive heating. The data collected during the checking stage is processed to find out when exactly these components are going to fail so that maintenance can be planned very precisely.

Predictive maintenance offers reduced unplanned downtime as one of its major advantages. Instead of just waiting for a failure to happen, maintenance personnel can already replace or repair parts during the planned idle times so that the production schedule will be less disrupted. Further, predictive analytics can manage spare parts inventory through forecasting of component demand quite accurately, therefore, this is associated with the decrease of the total costs for storage and procurement. The interaction between proactive checking, data crunching, and proper scheduling is leading to a great increase in the reliability of the conveyor system, while the maintenance costs are still the lowest.

VFDs in Conveyor System Automation

Variable Frequency Drives (VFDs) are indispensable in the automation of conveyor systems as they offer motor speed and torque control with high precision. This control is a must-have in the quest for energy conservation, heightened efficiency, and decreased mechanical wear. To name one of the benefits, conveyors can be operated at their full speed only during the periods when they are really needed, that is when input material is available, thus volume/time efficiency is increased, while still being energy efficient, if using VFDs. Furthermore, VFDs are characterized by their support of association of the following: gentle start-up and stop, and these features can prevent mechanical stress and, thus, extend the life of system elements.

It is common for the modern VFD to be furnished with highly developed communication protocols such as EtherNet/IP and Modbus, which allows for a straightforward alignment with programmable logic controllers (PLCs) and supervisory control systems. This is allowing for real-time monitoring, diagnostics, and remote control, thus enhancing the view and the management of the whole conveyor system actually from the same place. The surveys as well as the industrial automation specialists’ case data confirm that the implementation of VFD technology can lead to power consumption reduction by as much as 30%, which is a big contributor to the operational cost reduction process. The integration of VFDs in the conveyor system reduces the energy use and so the industries that use them will have higher automation, sustainability, and reliability levels.

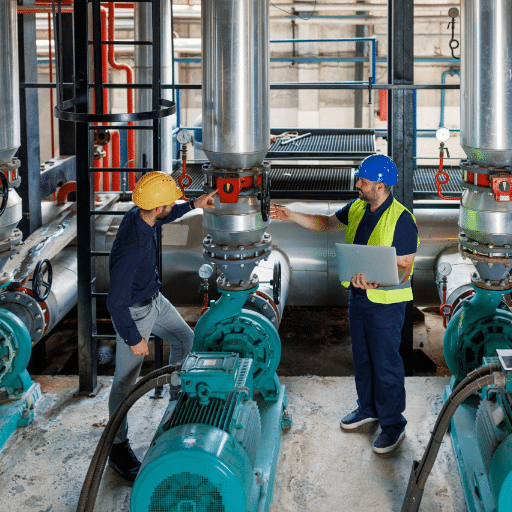

The Future of VFDs in Manufacturing

In the future, the manufacturing sector will see great developments in the Variable Frequency Drives (VFDs) such as, energy proficiency, control system, and automation intelligence. More and more technological advancements that are related to Industry 4.0 are being used, and the VFDs are experiencing a connectivity growth that makes them able to be easily integrated with Industrial Internet of Things (IIoT) architectures. This improved connection enhances the real-time monitoring, predictive maintenance and the system optimization, thereby, reducing the downtime and operational costs.

Moreover, factories have gained the ability to design and at the same time produce very accurate VFDs which have also brought in the precision of control of electric motors at the forefront of efforts to cut down power consumption. The ever-increasing pace of converting to clean power sources also positively impacts the diverse applications of VFDs in modern, eco-friendly, and energy-conserving production technology. Hence this development suggests that the VFD technology will remain an indispensable item in the innovation and efficiency aspects of the industrial operations.

The Role of VFDs in Modern Manufacturing Plants

The key areas of influence for Variable Frequency Drives (VFDs) at present have shifted to where they are now perceived as vital equipment on the factory floor. The main job of these drives is to gate the speed and power of electric motors. The end result is a precise production output to meet the varying market needs. The new technology behind VFDs has made them more powerful and thus capable of improving quality and at the same time reducing the number of unwarranted stops in manufacturing processes.

A major angle in which VFDs are superior is by slashing power bills because they turn motors on only when the required speed is specified, instead of letting them run at maximum capacity round the clock. The results of the researches show that the use of VFDs can save power consumption of motors by up to 50% in specific cases. This energy competency is not just consistent with green strategies but also in the long run it provides significant money savings. Moreover, the modern VFDs provide the motor performance monitoring and failure anticipation facilities by data analysis, thanks to the diagnostic and predictive maintenance tools they come with this resulting in better productivities.

Considering the continuous incorporation of the Industry 4.0 technologies, the design of VFDs is being done with the special focus on being compatible with automation systems. VFDs can talk to PLCs and cloud-based platforms, hence making real-time data collection and remote management feasible. This blend of flexibility and control is what VFDs are nowadays in the industries such as food processing, chemical production, automotive, and renewable energy. The part played by them in the facilitation of energy saving, process control efficiency, and quality is something that can be seen everywhere in the future in the form of an upward trend and continuous improvement of the efficiency and outputs of the industries.

Final Thoughts on VFD Adoption in Industrial Applications

Reference Sources

1. Energy-Saving Solutions Applied in Belt Conveyors: A Literature Review
   Link to source
2. Shaftless Screw Conveyor Design
   Link to source
3. Commissioning and Controlling Variable of Frequency Converter by PLC
   Link to source

Frequently Asked Questions (FAQs)
