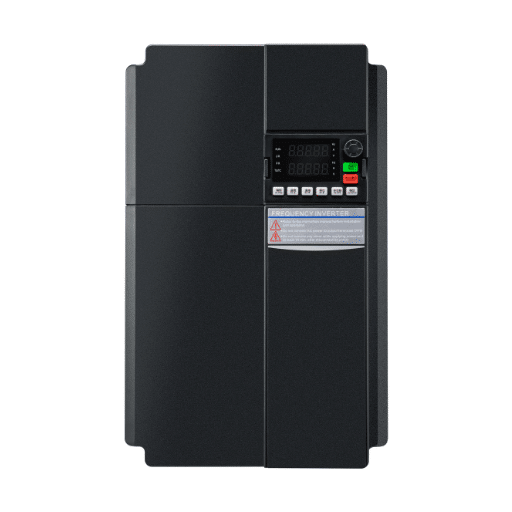

VFDs-1610 Low Voltage VFD
The YC-1610 is a high-performance vector frequency converter featuring a dual display and an elegant, functional design. It offers a rich feature set suitable for a wide variety of industrial scenarios. With an excellent, compact structural design for superior heat dissipation, it provides a powerful yet space-saving solution.
By utilizing advanced Vector Control, V/F Control, and Permanent Magnet Synchronous Motor Control, the YC-1610 achieves precise speed regulation, high efficiency, and stable, energy-saving operation. Its flexible and versatile configuration supports customization to meet diverse customer requirements.
By utilizing advanced Vector Control, V/F Control, and Permanent Magnet Synchronous Motor Control, the YC-1610 achieves precise speed regulation, high efficiency, and stable, energy-saving operation. Its flexible and versatile configuration supports customization to meet diverse customer requirements.
Key Features of The YC-1610 Low Voltage VFD
🚀 Excellent Performance
Motor control is achieved through high-performance current vector control technology, delivering exceptional responsiveness and operational accuracy for demanding tasks.
⚡ Ride-Through Capability
Maintains inverter operation during momentary power outages by utilizing load feedback energy to compensate for voltage drops, ensuring process continuity and minimizing downtime.
⏱️ Integrated Timing Control
Includes a built-in timer control function, allowing for scheduled operations with a configurable time range from 0.0 to 3200.0 minutes, enabling simple automation without external controllers.
🔗 RS-485 Communication
Equipped with standard RS-485 communication bus support, allowing for seamless integration into larger control networks and SCADA systems using the Modbus protocol.
🛡️ Comprehensive Protection
Features a full suite of protection functions, including power-on motor short-circuit detection, input/output phase-loss protection, overcurrent, overvoltage, undervoltage, overtemperature, and overload protection to safeguard the drive and motor.
〰️ Automatic Voltage Regulation (AVR)
Automatically maintains a constant output voltage during grid voltage fluctuations, ensuring stable motor performance and protecting it from potential damage caused by an unstable power supply.
Technical Specifications of The YC-1610 Low Voltage VFD
| Parameter | Value / Range |
|---|---|
| Input Voltage | Single-phase 220V (1.1kW - 15kW) Three-phase 220V - 480V (0.75kW - 55kW) |
| Motor Rated Voltage | 1V – 380V |
| Motor Rated Power | 0.1kW – 1000kW |
| Control Modes | Open-Loop Vector Control (SVC) V/F Control |
| Maximum Frequency | Vector Control: 0 - 300Hz V/F Control: 0 - 3000Hz |
| Carrier Frequency | 0.75kHz – 15kHz (Automatically adjusts based on load) |
| Overload Capacity | G-Type: 150% rated current for 60s; 180% rated current for 3s P-Type: 120% rated current for 60s; 150% rated current for 3s |
Wide Range of Applications for the YC-1610 Low Voltage VFD
- Mechanical Equipment: Metal processing, CNC machine tools, and wire drawing machines.
- Food Processing: Reliable control for mixers, conveyors, and packaging machinery.
- Boiler & Fan Systems: Forced-draft fans, induced-draft fans, and underground exhaust fans for mines.
- Municipal & HVAC: Energy-saving retrofits for central air-conditioning, counter-rotating fans, and centrifugal fans.
- Pump Systems: Circulating pumps, booster pumps, oilfield injection pumps, and musical fountains.
- Process Industries: Paper manufacturing equipment, chemical, pharmaceutical, and textile industry applications.
Expert VFD Selection and Support
Selecting the optimal VFD requires careful consideration of your motor specifications, application requirements, environmental conditions, and performance objectives. Our technical team provides comprehensive support throughout the selection and implementation process.
We assist with:
- Motor-to-drive compatibility verification
- Load profile analysis and drive sizing
- Application-specific configuration recommendations
- Installation planning and commissioning support
- Troubleshooting and technical consultation
