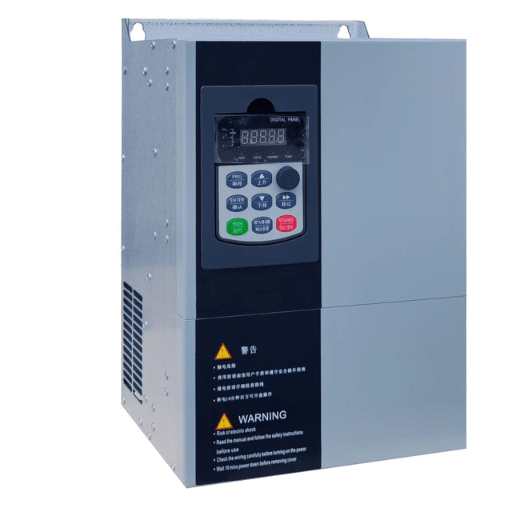

VFDs-5000 Low Voltage VFD
In the realm of industrial automation, the SY5000 AC Drive emerges as a standout solution for managing variable frequency and voltage control. This VFD inverter is engineered to optimize motor performance, ensuring precise control over AC motors across various applications. With a focus on reliability and efficiency, the SY5000 series is an ideal choice for industries seeking to enhance their drive systems.
Key Features of The YC-5000 Low Voltage VFD
⚙️Dual Control Modes
Switchable V/Hz control for fans/pumps and sensorless vector control (SVC) for demanding applications. Closed-loop vector with PG card option for ±0.01% speed regulation in precision machinery.
🔋Energy Saving Algorithm
Intelligent flux optimization reduces motor magnetizing current during light loads. Automatic sleep/wake function for intermittent operations. Real-time power monitoring with kWh meter display.
🛡️Comprehensive Protection
15+ protection functions including overcurrent, overvoltage, undervoltage, overload, ground fault, phase loss, overheating, and motor stall detection. Self-diagnostic error codes with fault history logging.
📊Advanced PID Control
Built-in PID regulator for closed-loop process control (pressure, flow, temperature). PID sleep/wake for HVAC applications. Cascade PID for complex process requirements.
🔄Multi-Speed Operation
16 programmable preset speeds via digital inputs. Multi-step speed with adjustable acceleration/deceleration times. Jog function for inch applications with independent jog frequency.
🌐Flexible I/O Configuration
6 digital inputs (PNP/NPN configurable), 2 analog inputs (0-10V/4-20mA), 2 analog outputs, 2 relay outputs, 1 high-speed pulse output for positioning applications. Expandable with option cards.
Technical Specifications of The YC-5000 Low Voltage VFD
| Feature | Specification |
|---|---|
| Input Voltage Range | 200V - 690V (Low Voltage) |
| Output Frequency | 0.1Hz - 400Hz |
| Power Range | 0.4kW - 500kW |
| Control Method | V/F Control, Vector Control, Torque Control |
| Efficiency | ≥98% |
| Overload Capacity | 150% for 60 seconds, 180% for 10 seconds |
| Communication Protocol | Modbus, Profibus, CANopen, Ethernet |
| Protection Level | IP20, IP54, or customizable for specific environments |
| Operating Temperature | -10°C to +50°C |
| Cooling Method | Forced air cooling |
| Display | LED/LCD display for real-time monitoring |
| Safety Features | Overvoltage, undervoltage, overload, short circuit, and overheat protection |
| Applications | Pumps, fans, conveyors, compressors, and other industrial machinery |
| Harmonic Control | Built-in DC reactor and optional harmonic filter |
| Startup Torque | 200% at 0.5Hz |
| Frequency Resolution | 0.01Hz |
| Noise Level | Low noise operation with optimized PWM control |
Wide Range of Applications for the YC-5000 Low Voltage VFD
- Industrial Automation: Precise motor control for conveyors, mixers, and assembly lines.Enhances productivity and energy efficiency in manufacturing processes.
- HVAC Systems: Optimizes fan and pump operations in heating, ventilation, and air conditioning systems.Reduces energy consumption and ensures smooth operation.
- Water and Wastewater Management: Controls pumps for water supply, irrigation, and wastewater treatment.
- Mining and Minerals: Powers crushers, conveyors, and slurry pumps.Enhances operational efficiency and reduces downtime.
- Textile Industry: Drives spinning, weaving, and dyeing machines.Improves process control and energy efficiency.
Expert VFD Selection and Support
Selecting the optimal VFD requires careful consideration of your motor specifications, application requirements, environmental conditions, and performance objectives. Our technical team provides comprehensive support throughout the selection and implementation process.
We assist with:
- Application-specific configuration recommendations
- Installation planning and commissioning support
- Troubleshooting and technical consultation
- Load profile analysis and drive sizing
- Motor-to-drive compatibility verification
